ZF AV 110 - Assembly; Install Input and Differential

9 Assembly
9.1 Install input
Special tools:
▪ 5870.345.080 Assembl
y fixture
▪ 5870.260.002 Handle
▪ 5870.056.008 Driver tool
▪ AA02.016.086 Plug insert
▪ AA00.640.418 Support fixture
▪ 5870.203.002 Power screwdriver

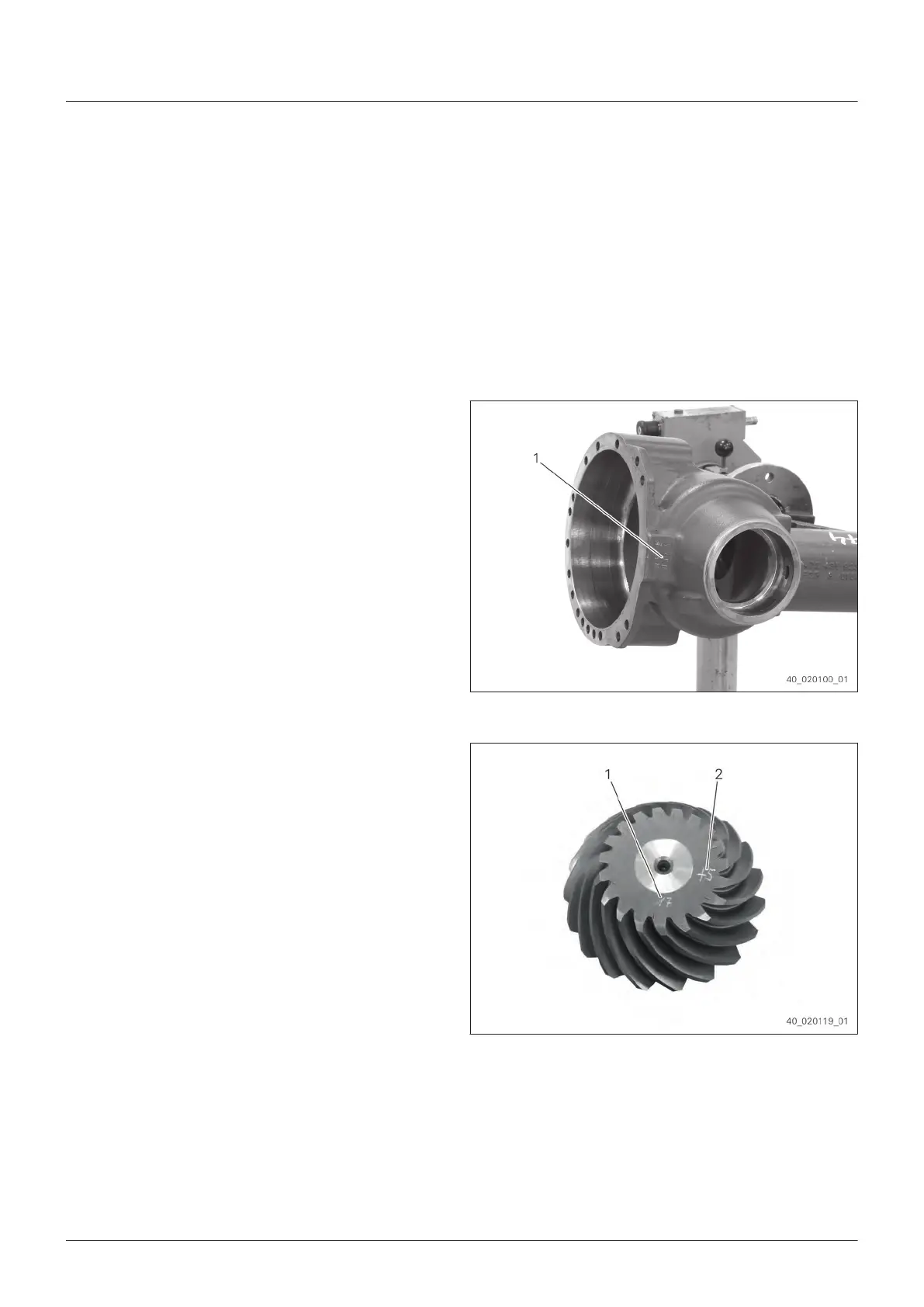

1. Read dimension U (1) from the axle housing.
Dimension U = e. g. 201.20 mm
Fig. 122
2. Compare mating number (1) e. g. "17" with
mating number on t
he crown wheel. Both
mating numbers must be identical.
3. Read pinion distance deviation (2).
Pinion distance deviation A = e. g. "+5" =
0.05 mm
Fig. 123
Assembly
74
EN 4472.751.001 - 2015-11
