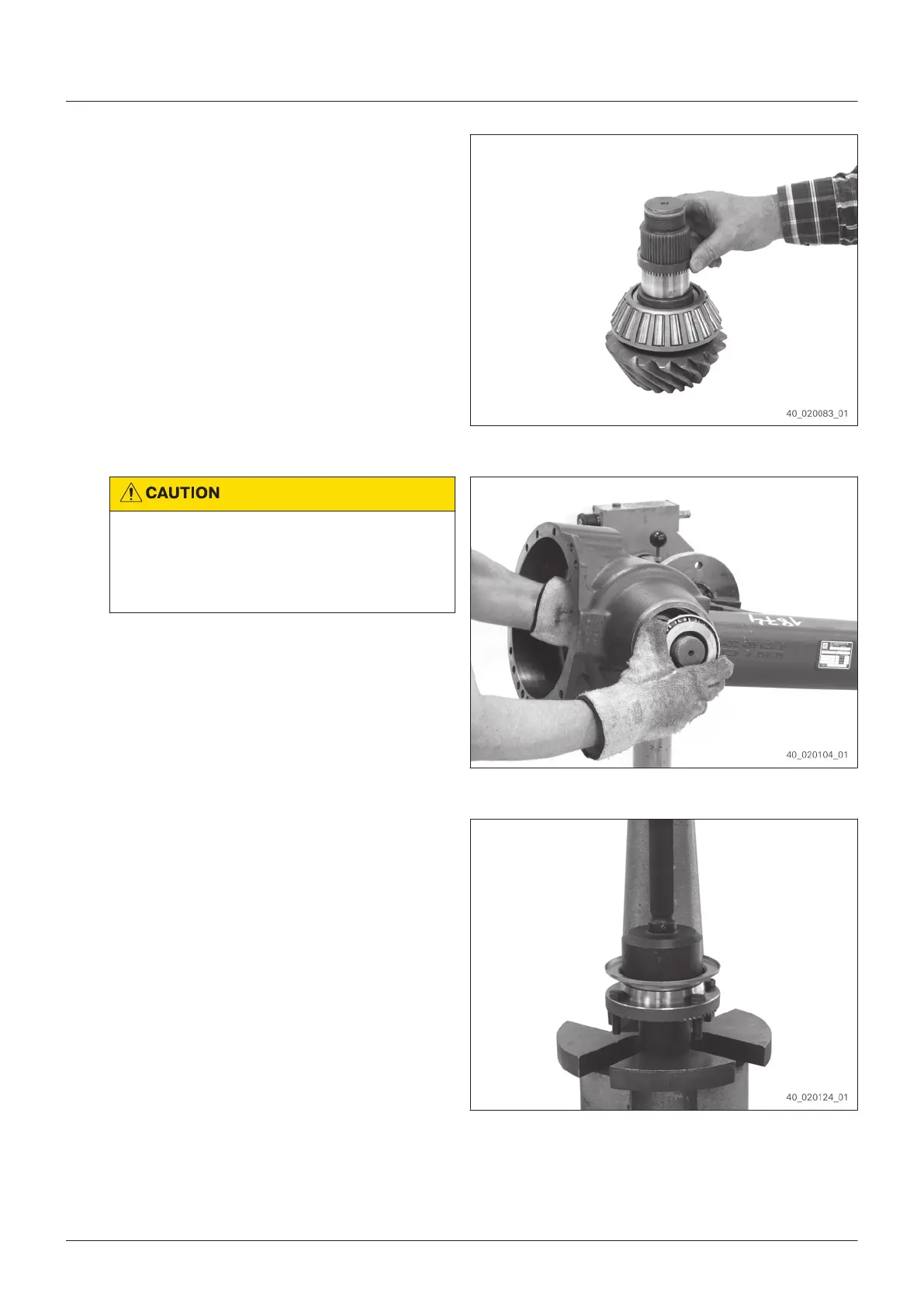

15. Push ring with e. g. s = 10.30 mm onto the
pinion.
Fig. 130
16.
Risk of burn injuries due to contact with hot
surfaces.
Slight or moderate injury possible.
ð
Wear protective gloves.
Heat tapered roller bearing.
17.
Insert pinion into the axle housing from
inside. Slide the heated tapered roller bearing
onto the pinion until contact is obtained.
Fig. 131
18. If available, insert the hexagon screws into
t
he input flange.
19. Use 5870.260.002 [Handle] and
5870.056.008 [Driver tool] to press the
screen sheet onto the input flange.
Fig. 132
Assembly
EN 4472.751.001 - 2015-11
77
