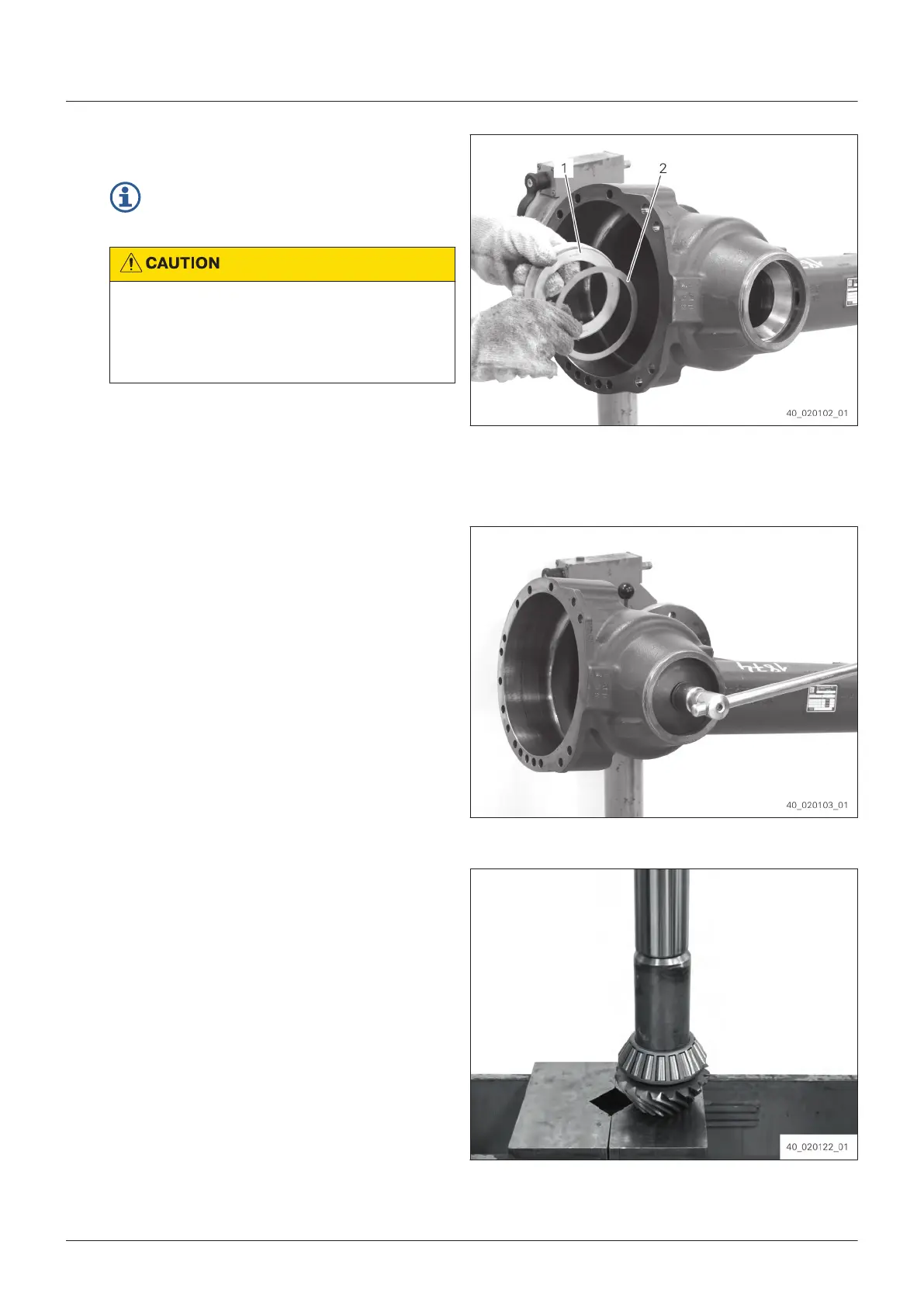

10. Insert the shim (2) into the bearing hole.
11.
Carry out the following three work steps
immediat
ely one after the other.
Risk of burn injuries due to contact with cold
sur
face.
Slight to moderate injury possible.
ð
Wear protective gloves.
Undercool the bearing outer ring (1).
12.
Insert bearing outer ring (1) into axle housing
until contact is obtained.
Fig. 127
13. Use 5870.345.080 [Assembly fixture] to bring
bo
th bearing outer rings into contact position.
Fig. 128
14. Press on the bearing inner ring until contact
wit
h the pinion is obtained.
Fig. 129
