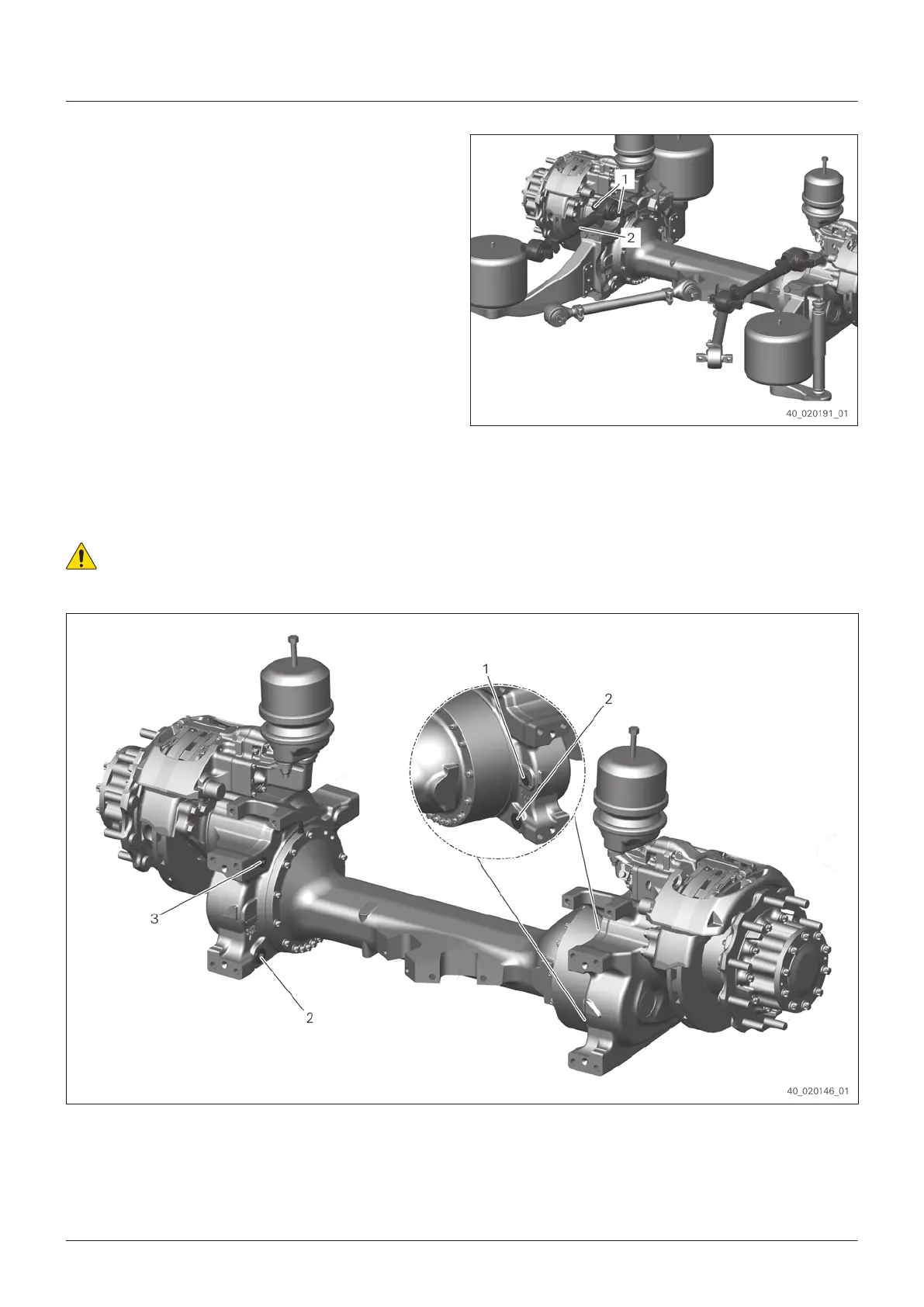

16. Horizontally suspend the upper longitudinal
contr
ol arm (2) with the lifting device.
17. Fix the upper longitudinal control arm (2)
with hexagon screws (1).
Tightening torque: 390 Nm
Fig. 272
9.13 Filling oil
Observe the environmental regulations
(see General safety instructions)
.
Fig. 273
1 Screw plug oil level
3 Screw plug oil fill
2 Screw plug oil drain
Assembly
EN 4472.751.001 - 2015-11
131
