ZF AV 110 - Remove and Dismantle Right Portal Drive; Remove Right Portal Drive

8.9 Remove and dismantle right portal drive.
8.9.1 Remove right portal drive
Special tools:
▪ AA00.844.345 Load r
ing

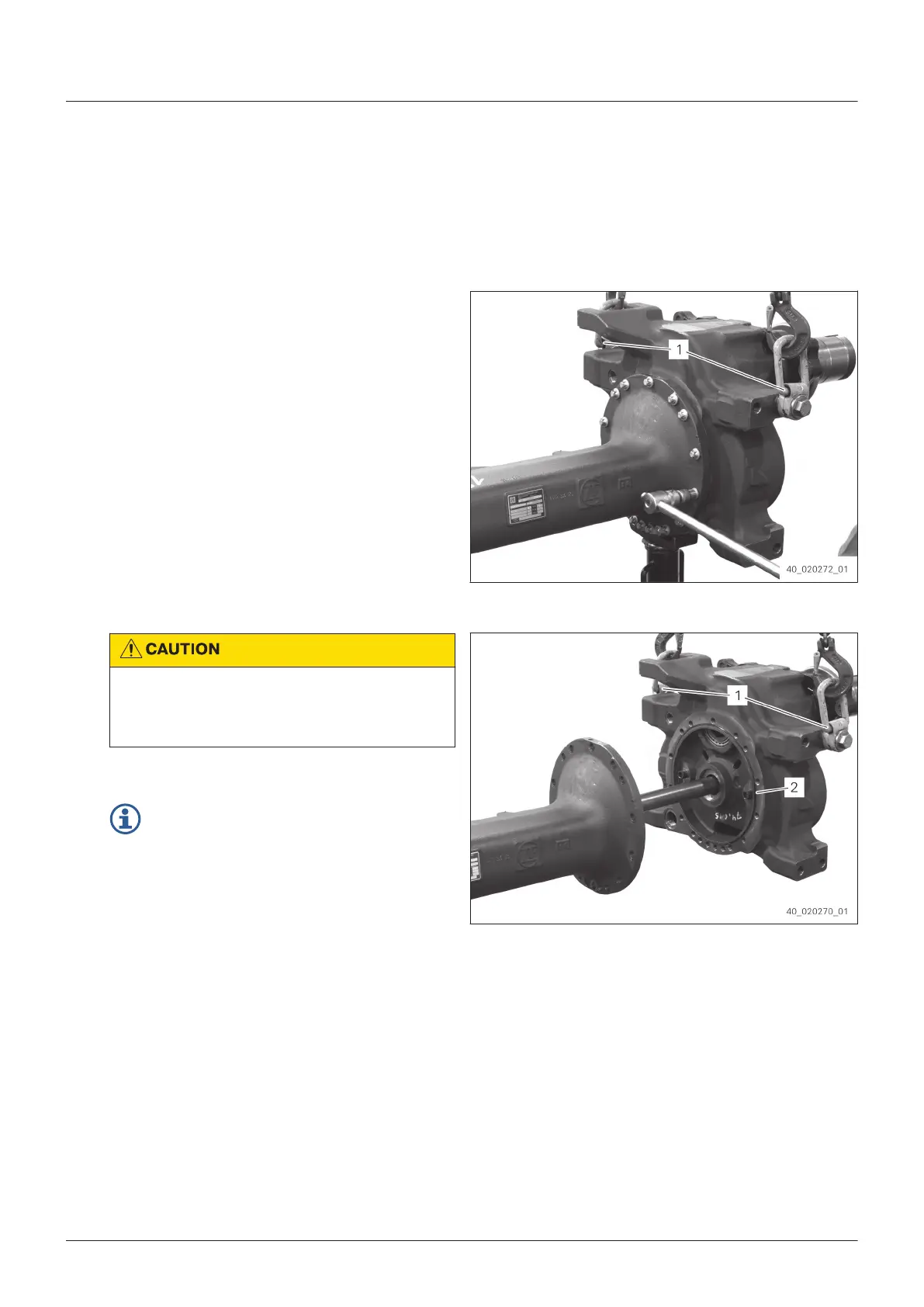

1. Bolt in two pieces AA00.844.345 [Load ring]
(1)
onto the portal housing. Loosen Torx
screws.
Fig. 78
2.
Risk of injury due to falling parts.
Slight or moderate injury possible.
ð
Secure parts against falling down.
Remove portal and stub shaft.
Stub shaft can also be removed from the
lef
t side.
3. Pull stub shaft from the portal.
4.
Remove two pieces AA00.844.345 [Load
ring] (1).
5. Remove O‑ring (2).
Fig. 79
8.9.2 Dismantle right portal drive
Special tools:
▪ 5870.350.
110 Connection plate
▪ 5870.350.000 Assembly truck
▪ AA02.038.564 Disassembly device
▪ 5870.281.054 Eye nut
▪ 5870.300.009 Extracting device
Dismantling
58
EN 4472.751.001 - 2015-11
