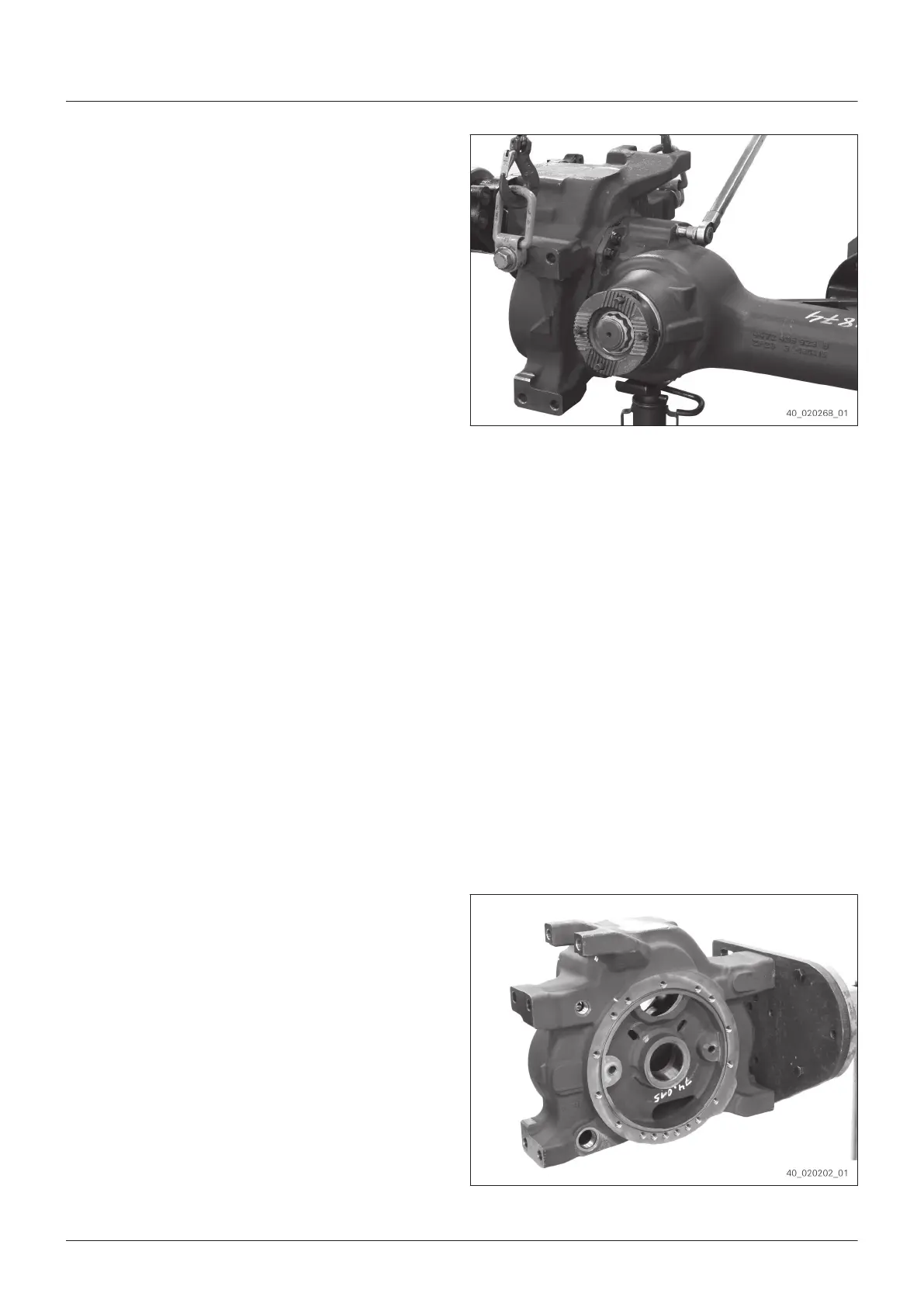

5. Support axle from below.
6.
Push differential into the axle housing and
bring portal housing into contact position
with the axle housing.
7. Fix portal drive with Torx screws.
Tightening torque: 185 Nm
Fix portal drive with hexagon nuts.
Tightening torque: 200 Nm
Fig. 198
9.6 Assemble and install right portal drive
9.6.1 Assemble right portal drive
Special tools:
▪ 5870.350.
110 Connection plate
▪ 5870.350.000 Assembly truck
▪ AA02.041.179 Driver tool
▪ 5870.260.002 Handle
▪ 5870.058.061 Driver tool
▪ 5870.700.004 Load cell
▪ 5870.200.094 Measuring arbor
▪ 5870.204.022 Locating pin
▪ AA02.041.051 Driver tool
▪ AA00.372.127 Driver tool
▪ 5870.281.054 Eye nut
▪ AA00.387.830 Pressing fixture no.
1. Use 5870.350.110 [Connection plate] to fix
t
he portal housing to
5870.350.000 [Assembly truck].
Fig. 199
Assembly
EN 4472.751.001 - 2015-11
103
