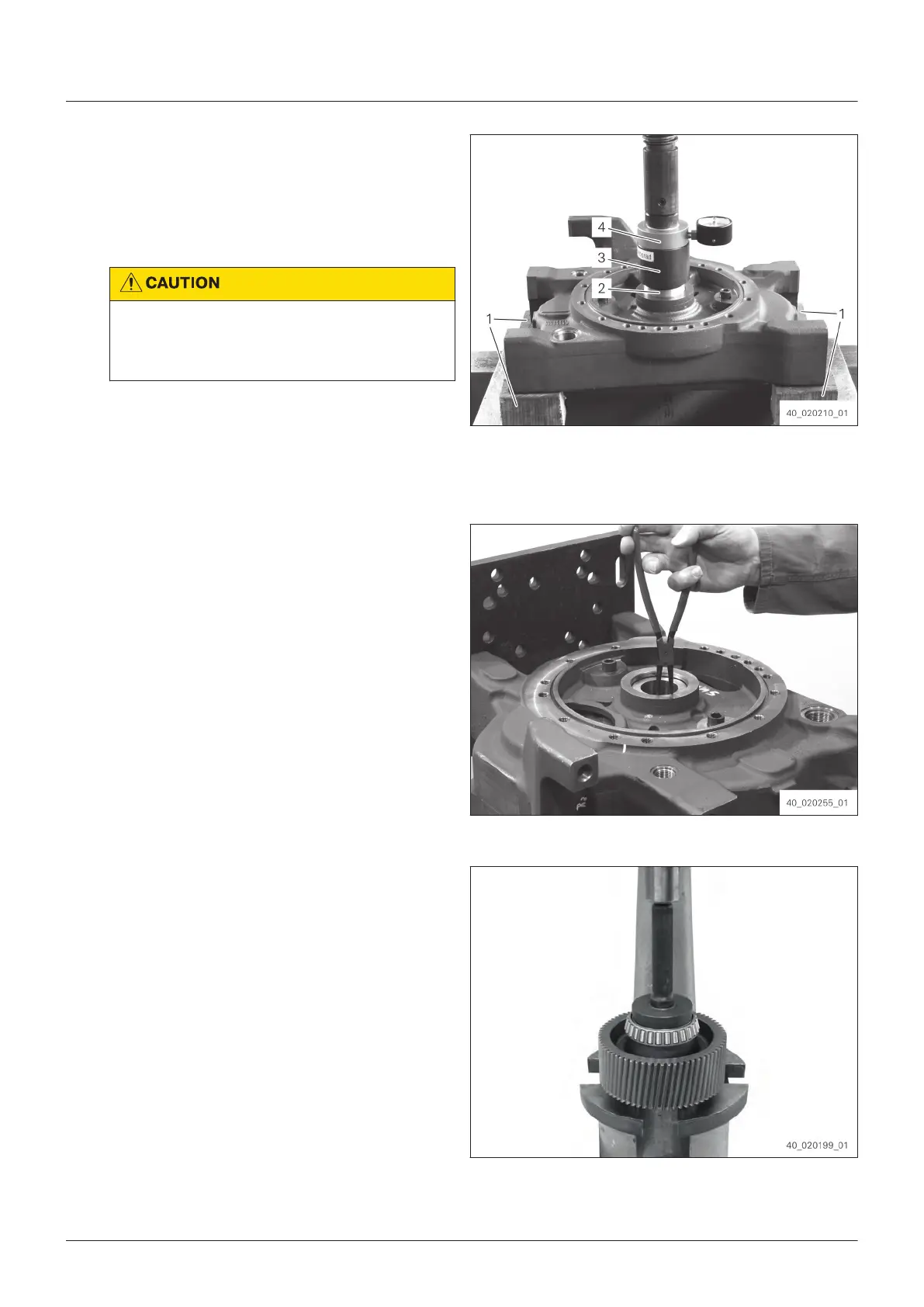

45. Evenly support the portal housing on the
h
ydraulic press from below at the edges (1).
46. Place the bush (2) with the groove showing
downwards onto the portal housing.
47.
Risk of crushing due to hydraulic tool.
Slight t
o moderate injury possible.
ð
Do not reach into danger area.
Press the bush (2) with max. 60 kN
by using
AA02.041.051 [Driver tool] (3) and
5870.700.004 [Load cell] (4) into the
housing.
Fig. 223
48. Insert retaining ring.
Fig. 224
49. Press bearing outer rings onto the output
g
ear.
Fig. 225
Assembly
112
EN 4472.751.001 - 2015-11
