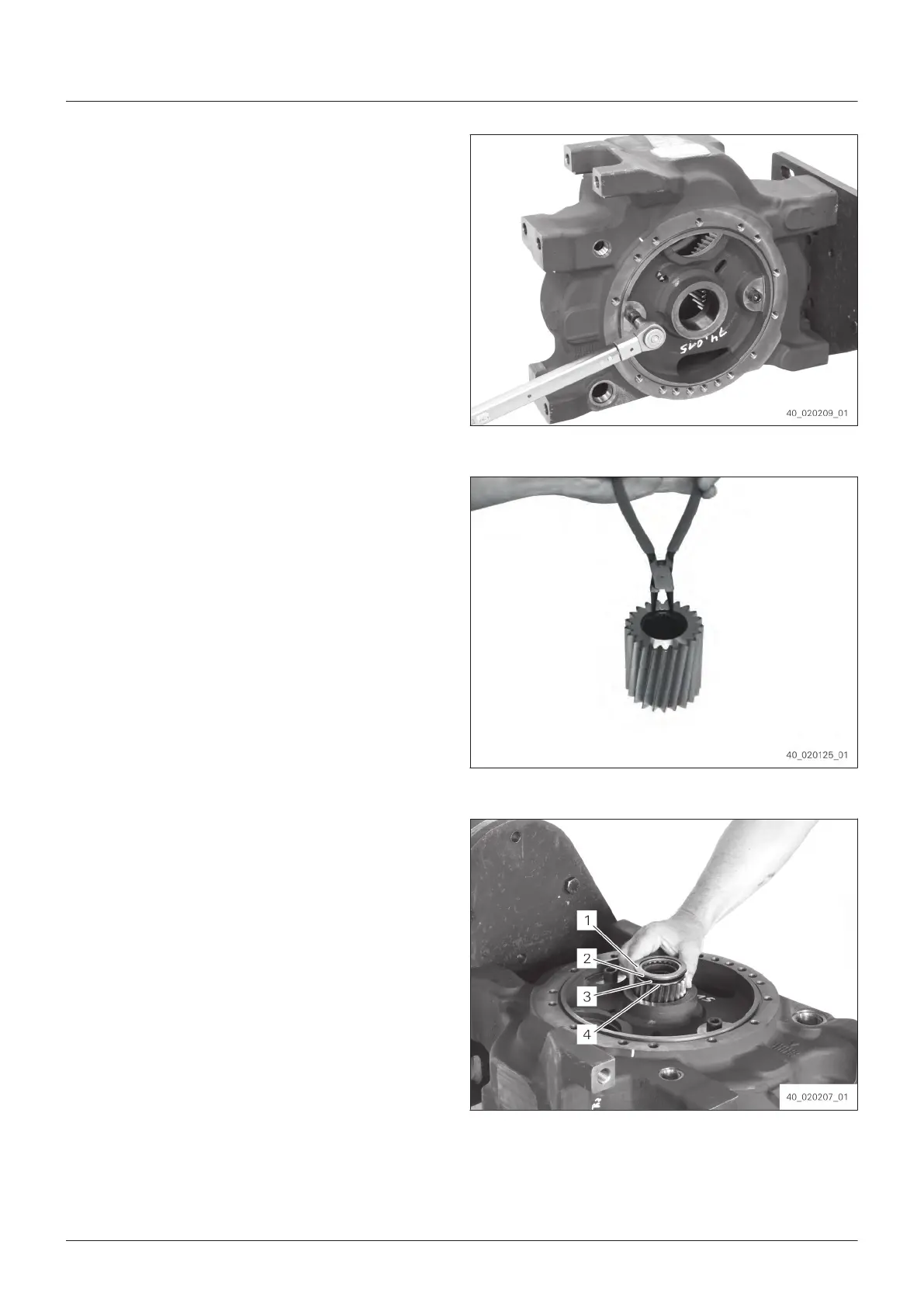

38. Fix bearing bolt with a cylindrical screw.
T
ightening torque: 185 Nm
Fig. 220
39. Insert retaining ring.
Fig. 221
40. Place shaft washer (4) onto the drive gear.
Ther
eby the retaining ring in the drive gear
must show downwards.
41. Place the axial roller cage (3) onto the drive
gear.
42. Place disk (2) onto the drive gear.
43. Place cup spring (1) with the concave side
showing downwards onto the drive gear.
44. Push drive gear and individual parts into the
portal housing.
Fig. 222
Assembly
EN 4472.751.001 - 2015-11
111
