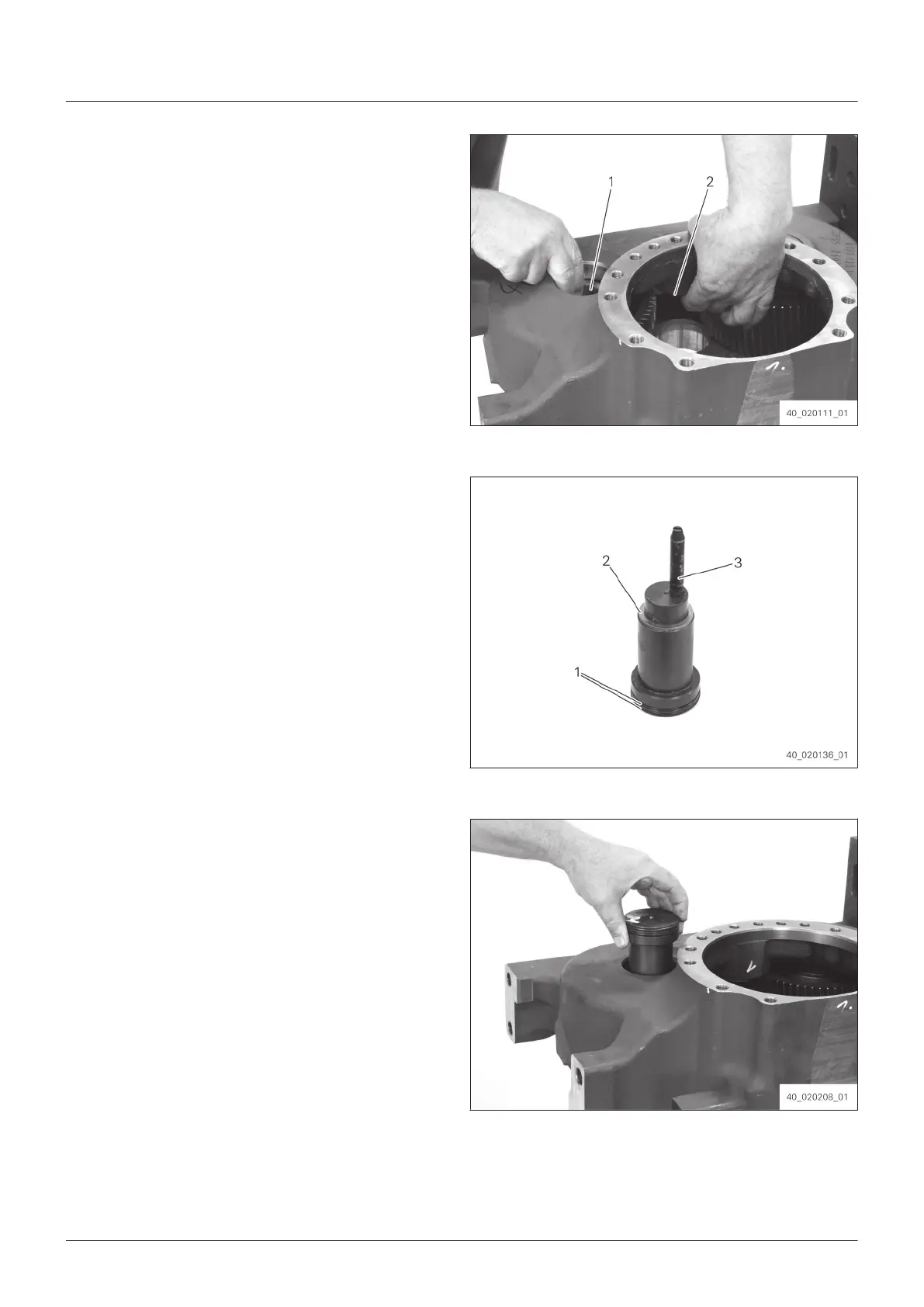

31. Insert the stacked parts with the cup spring
sho
wing upwards into the hole on the portal
housing (2) and hold them.
32. Place tapered roller bearing and intermediate
gear (1) in such a way that stacked parts in
the (2) hole are fixed.
Fig. 217
33. Grease O‑rings (1) and insert them into the
annular g
rooves.
34. Glue the determined shim (2) with grease
onto the bearing bolt.
35. Bolt 5870.204.022 [Locating pin] (3) into the
bearing bolt.
Fig. 218
36. Slide the bearing bolt into the portal housing
and f
ix intermediate gear and tapered roller
bearing.
37. Remove 5870.204.022 [Locating pin].
Fig. 219
Assembly
110
EN 4472.751.001 - 2015-11
