ZF AV 110 - Page 114

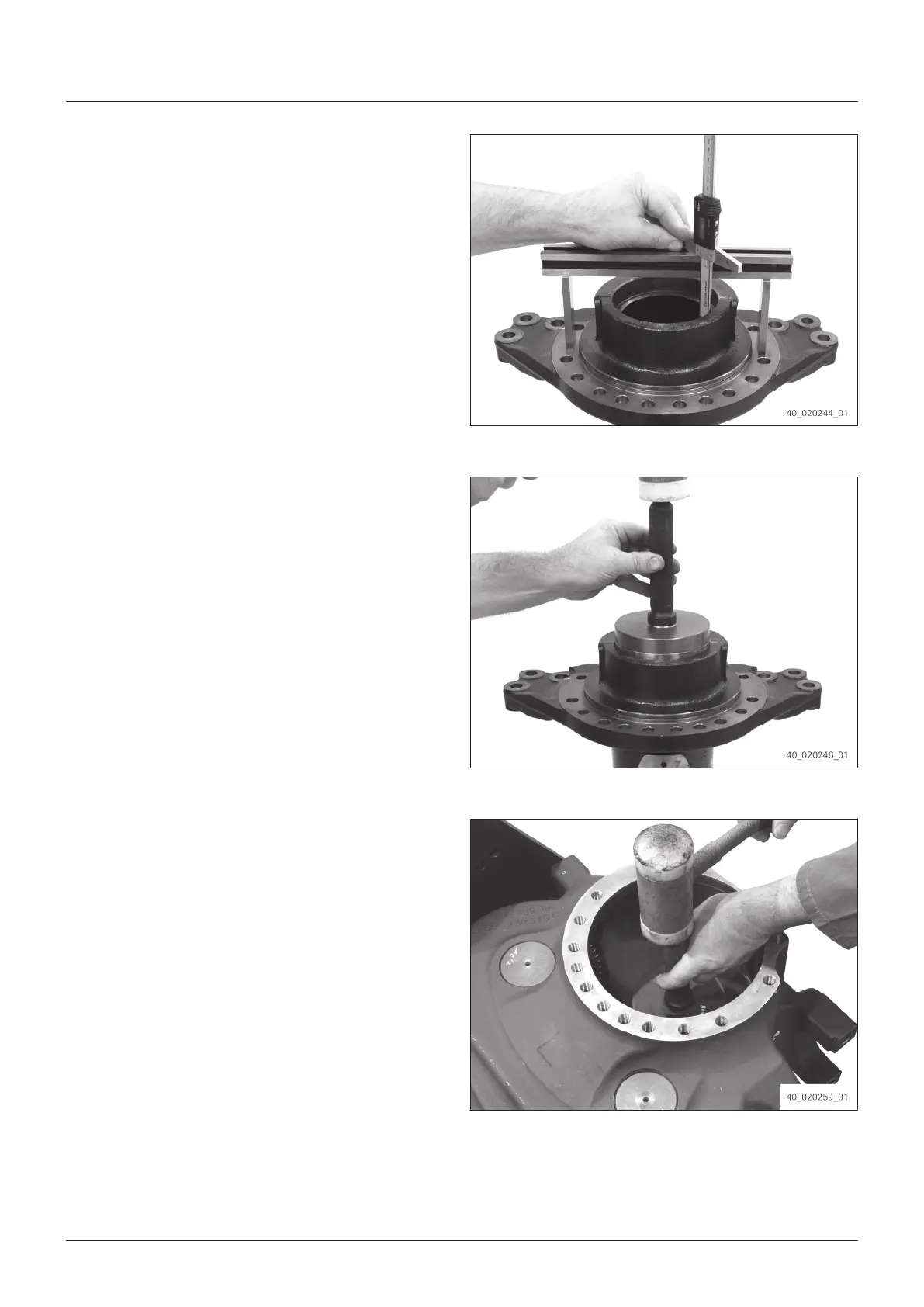

56. Measure dimension from mounting face to
hole bo
ttom.
Dimension F = e. g. 44.68 mm
57. Calculate thickness s of the shim.
Calculation example:
s = Housing depth D – Dimension F – Total
height output gear and tapered roller
bearing C
s = 180.83 mm – 44.68 mm – 135.05 mm
s = 1.1 mm
Fig. 229
58. Insert the determined shim.
59.
Use AA00.372.127 [Driver tool] and
5870.260.002 [Handle] to insert the bearing
outer ring.
Fig. 230
60. Use AA00.372.127 [Driver tool] and
5870.260.002 [Handle]
to insert the bearing
outer ring.
Fig. 231
Assembly
114
EN 4472.751.001 - 2015-11
