ZF AV 110 - Page 49

▪ 5873.002.001 Basic t
ool
▪ AA02.049.488 Disassembly device
▪ 5870.281.054 Eye nut
▪ 5870.300.009 Extracting device
▪ 5870.300.019 Extracting device
▪ 5873.012.013 Rapid grip
▪ 5870.300.035 Extracting device
▪ 5870.204.022 Locating pin
▪ 5870.300.007 Extracting device
▪ 5870.300.003 Extracting device
▪ AA01.305.639 removing tool

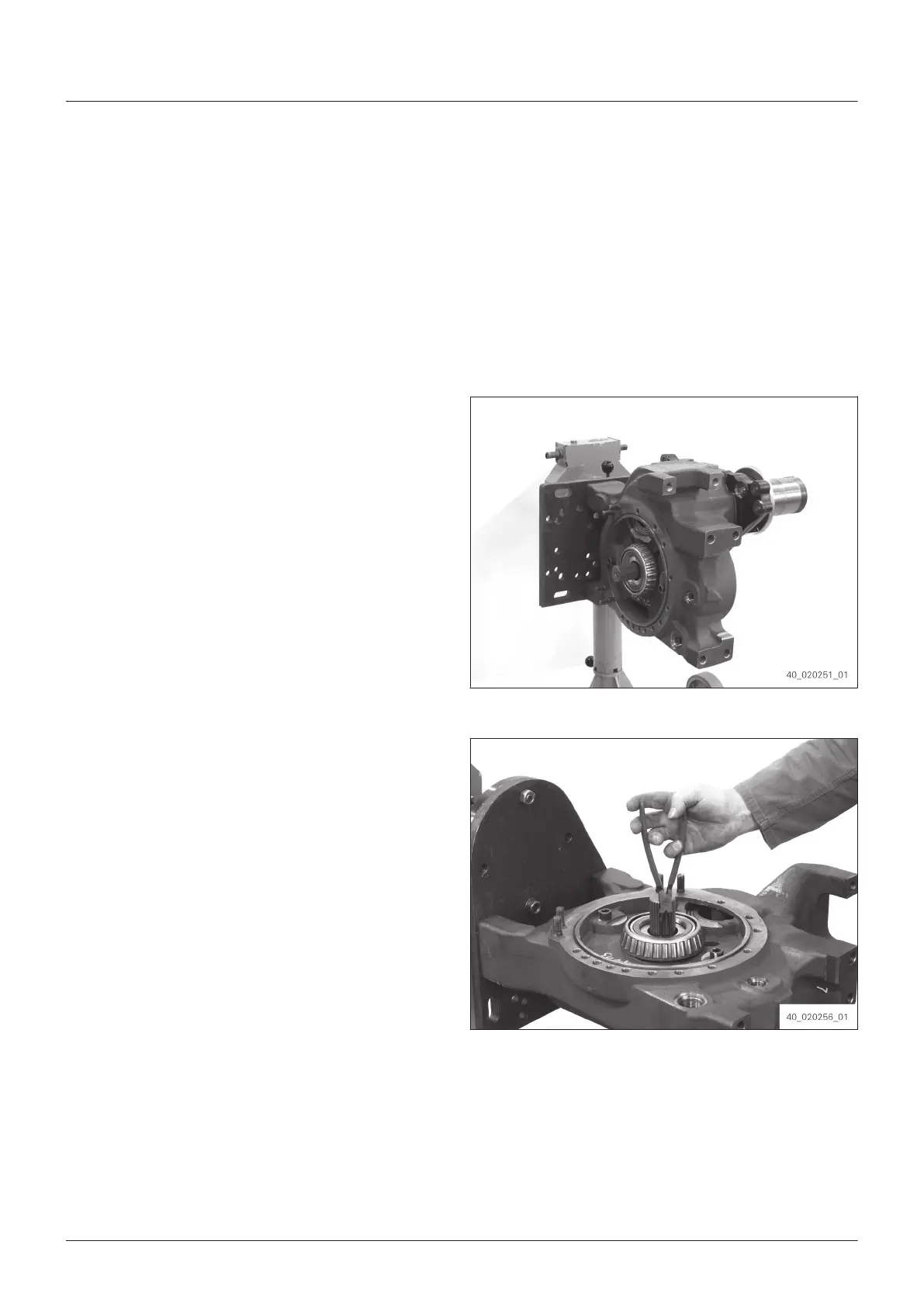

1. Fix portal drive with
5870.350.
110 [Connection plate] to
5870.350.000 [Assembly truck].
Fig. 52
2. Remove retaining ring.
Fig. 53
Dismantling
