ZF AV 110 - Page 72

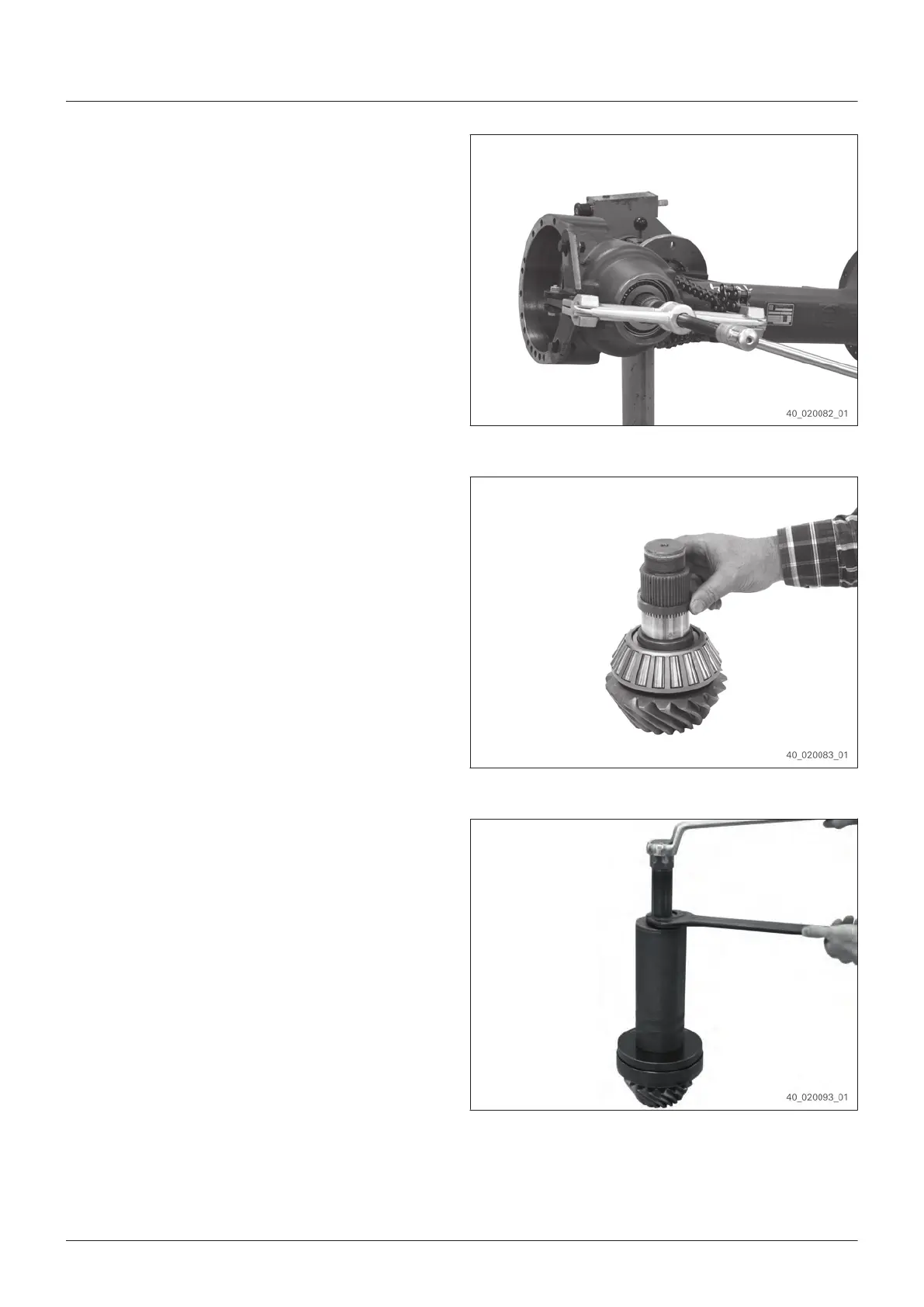

5. Use 5870.080.044 [Press-out device] to press
t
he pinion out of the tapered roller bearing
and remove it.
Fig. 116
6. Remove ring.
Fig. 117
7. Use 5873.002.051 [Gripping device] and
5873.002.001 [Basic t
ool] to pull off the
tapered roller bearing.
Fig. 118
Dismantling
72
EN 4472.751.001 - 2015-11
