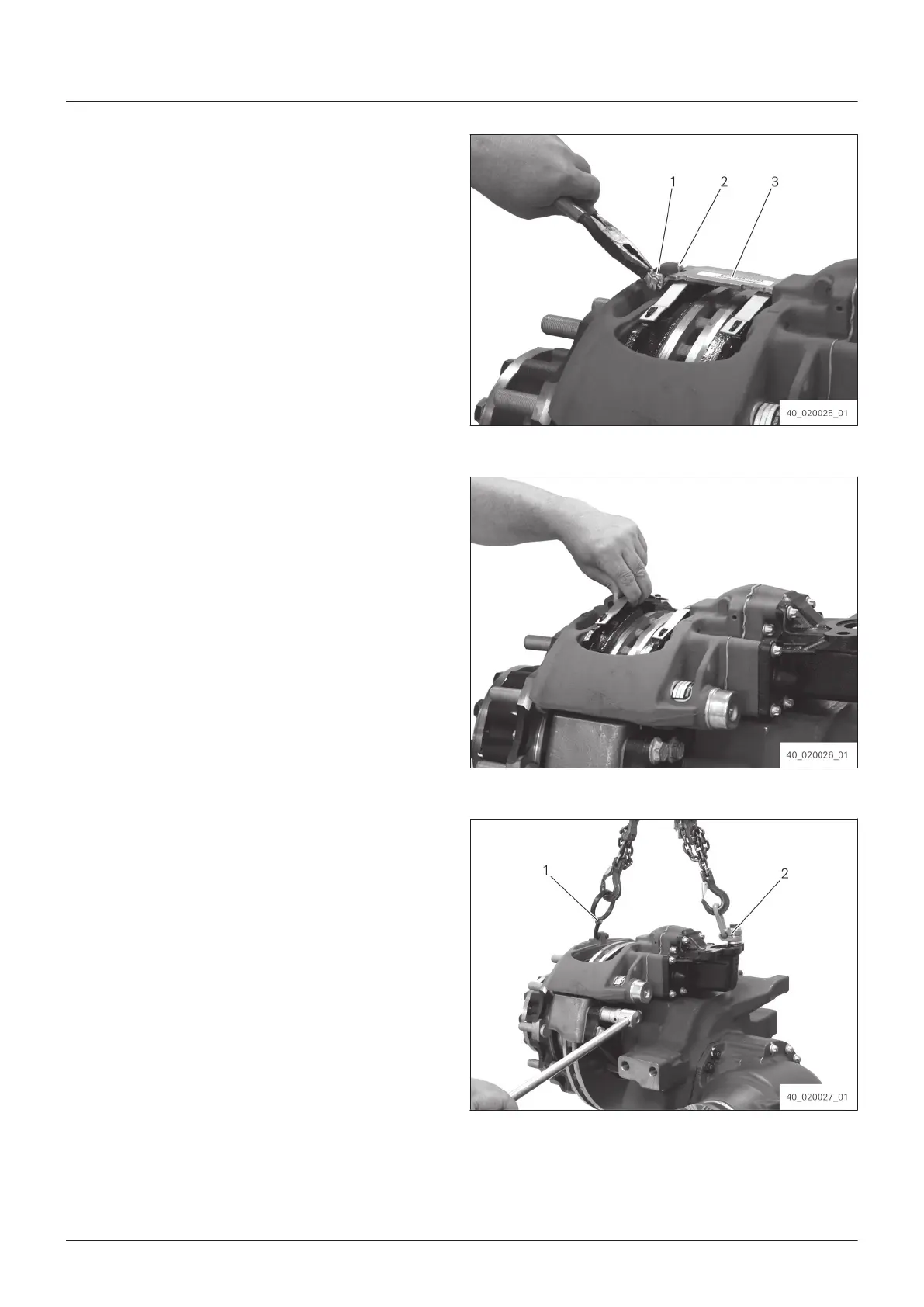

6. Remove spring split pin.
7.
Remove disk (1) and pin (2).
8. Remove lining bracket (3).
Fig. 31
9. Remove brake lining set.
Fig. 32
10. Fix brake caliper with 5870.281.046 [Load
car
rying fixture] (1), 5870.204.084 [Eyebolt]
(2) and crane.
11. Loosen hexagon screws and fit bolt on the
brake caliper.
12. Remove brake caliper.
Fig. 33
Dismantling
EN 4472.751.001 - 2015-11
41
