3.
Carry out the following two work steps
immediat
ely one after the other.
Apply 0666.690.191 [Spirit ] to the outer
diame
ter of the shaft seal.
4. Use 5870.048.216 [Driver tool] to insert the
shaft seal with the seal lip showing to the oil
chamber.

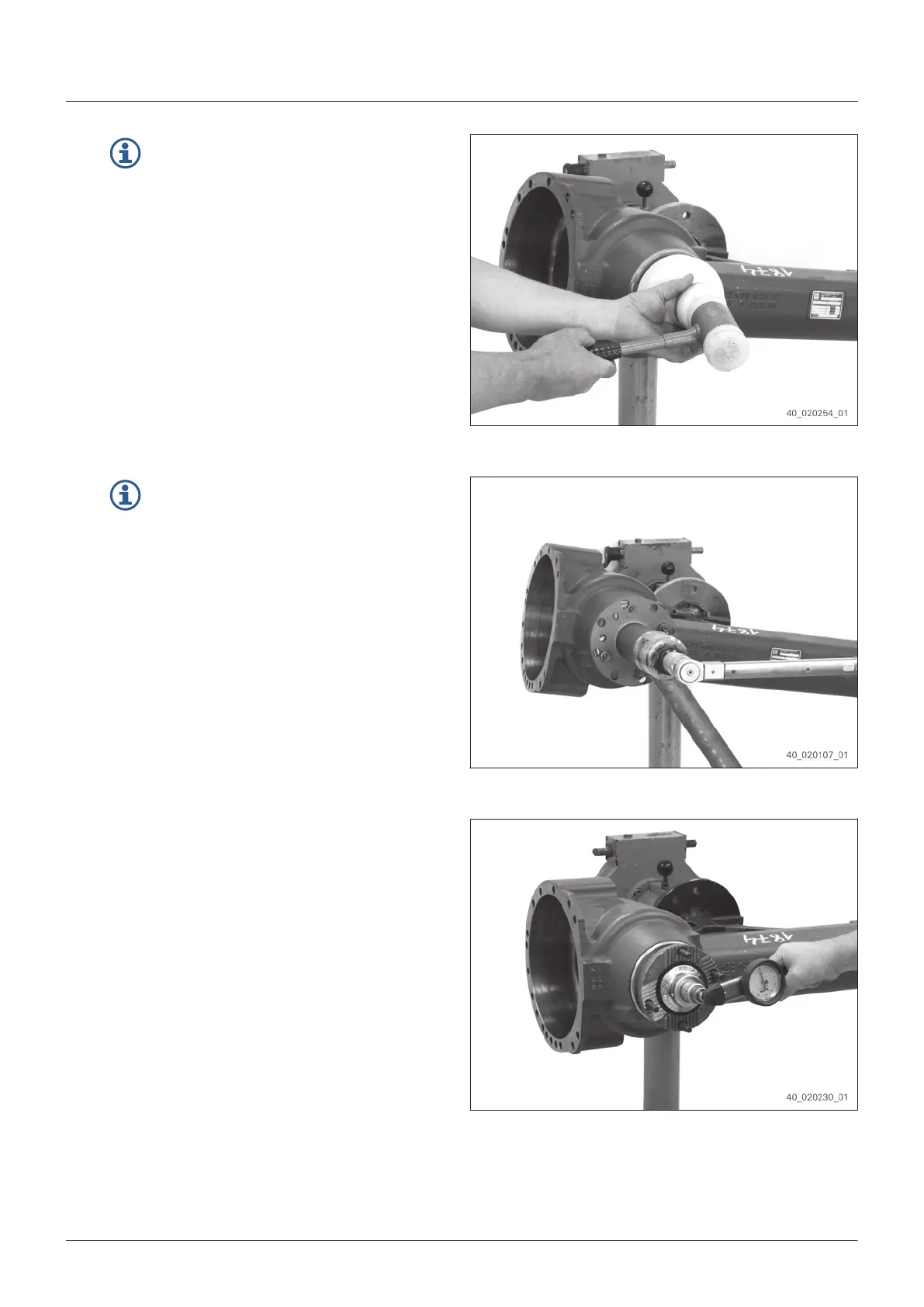

Fig. 154
5.
If the double hexagon nut was already
bolt
ed in, apply
0666.690.313 [Sealing compound] onto
the thread.
Use AA02.016.086 [Plug insert],
AA00.640.418 [Suppor
t fixture] and
5870.203.002 [Power screwdriver] to tighten
the double hexagon nut.
Tightening torque: 1,000 Nm
Fig. 155
6. Rotate pinion several times in both directions.
7.
Check the necessary Pinion bearing rolling
torque 4.5 Nm – 10.5 Nm.
8. If the rolling torque is too small, retighten the
double hexagon nut, until the necessary
rolling torque is reached.
Tightening torque: 1,000 Nm – 1,700 Nm
Fig. 156
Assembly
EN 4472.751.001 - 2015-11
87
