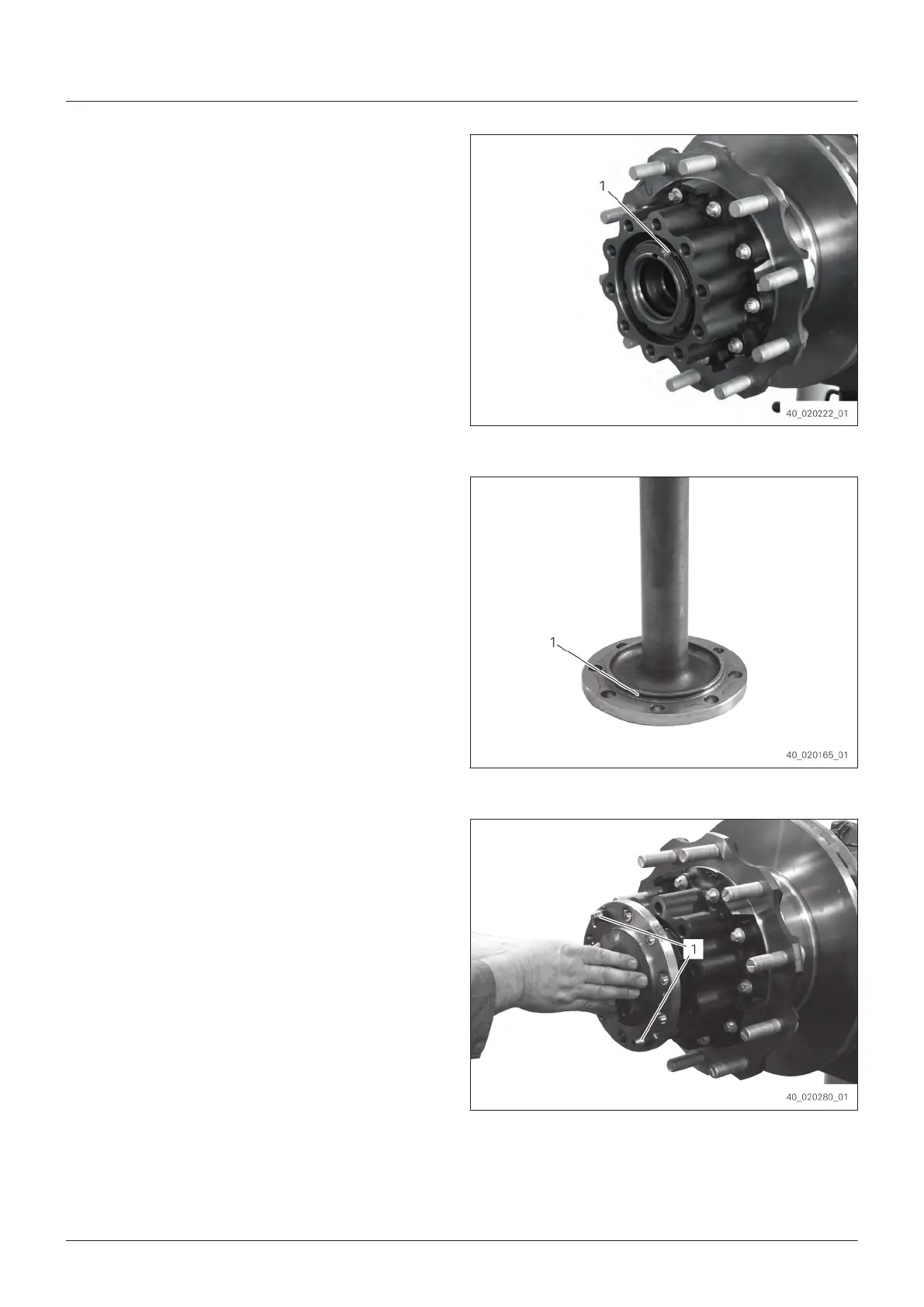

12. Secure slotted nut with locking plate (1).
Fig. 259
13. Grease O‑ring (1) and insert it into the
annular g
roove on the flange shaft.
Fig. 260
14. Bolt two pieces 5870.204.029 [Locating pin]
int
o the hub.
15. Push flange shaft into the hub carrier.
Fig. 261
Assembly
126
EN 4472.751.001 - 2015-11
