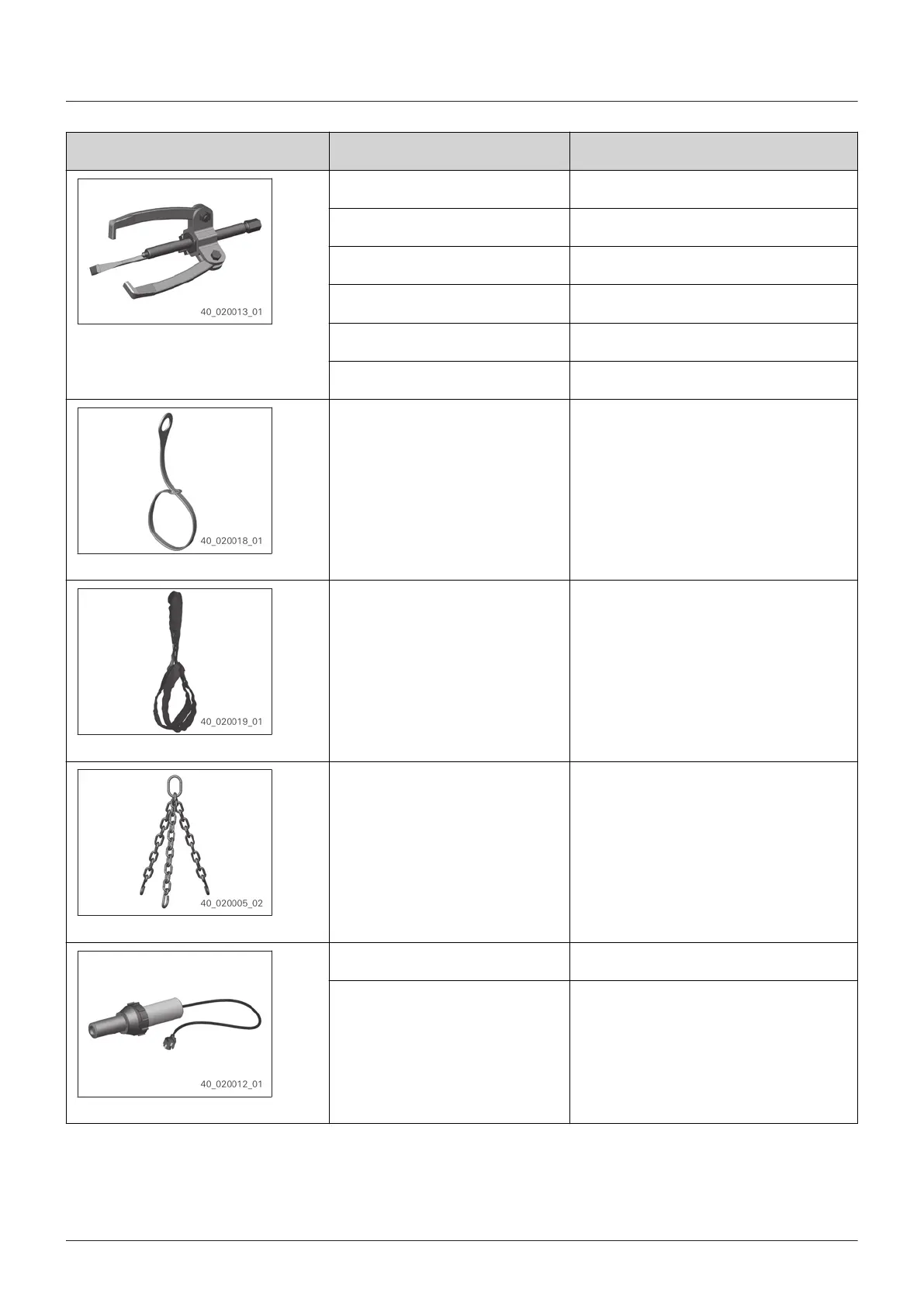

ZF AV 110 - Page 32

Figure Order no.
Designation
Comment
Fig. 8
5870.971.001
Thr
ee-armed extractor
Jaw width 85 mm
Throat depth 65 mm
5870.971.002
Thr
ee-armed extractor
Jaw width 130 mm
Throat depth 105 mm
5870.971.003
Thr
ee-armed extractor
Jaw width 230 mm
Throat depth 150 mm
5870.971.004
Thr
ee-armed extractor
Jaw width 295 mm
Throat depth 235 mm
5870.971.005
Thr
ee-armed extractor
Jaw width 390 mm
Throat depth 270 mm
5870.971.006
Thr
ee-armed extractor
Jaw width 640 mm
Throat depth 300 mm
Fig. 9
5870.281.026
Lif
ting strap
Load-bearing capacity 500 kg
Effective length 4 m
Fig. 10
AA02,000,695
R
ound sling
Load-bearing capacity 2,000 kg
Effective length 2 m
Fig. 11
5870.281.047
Lif
ting chain
Fig. 12
5870.221.500
Ho
t-air blower
230V
5870.221.501
Ho
t-air blower
115V
