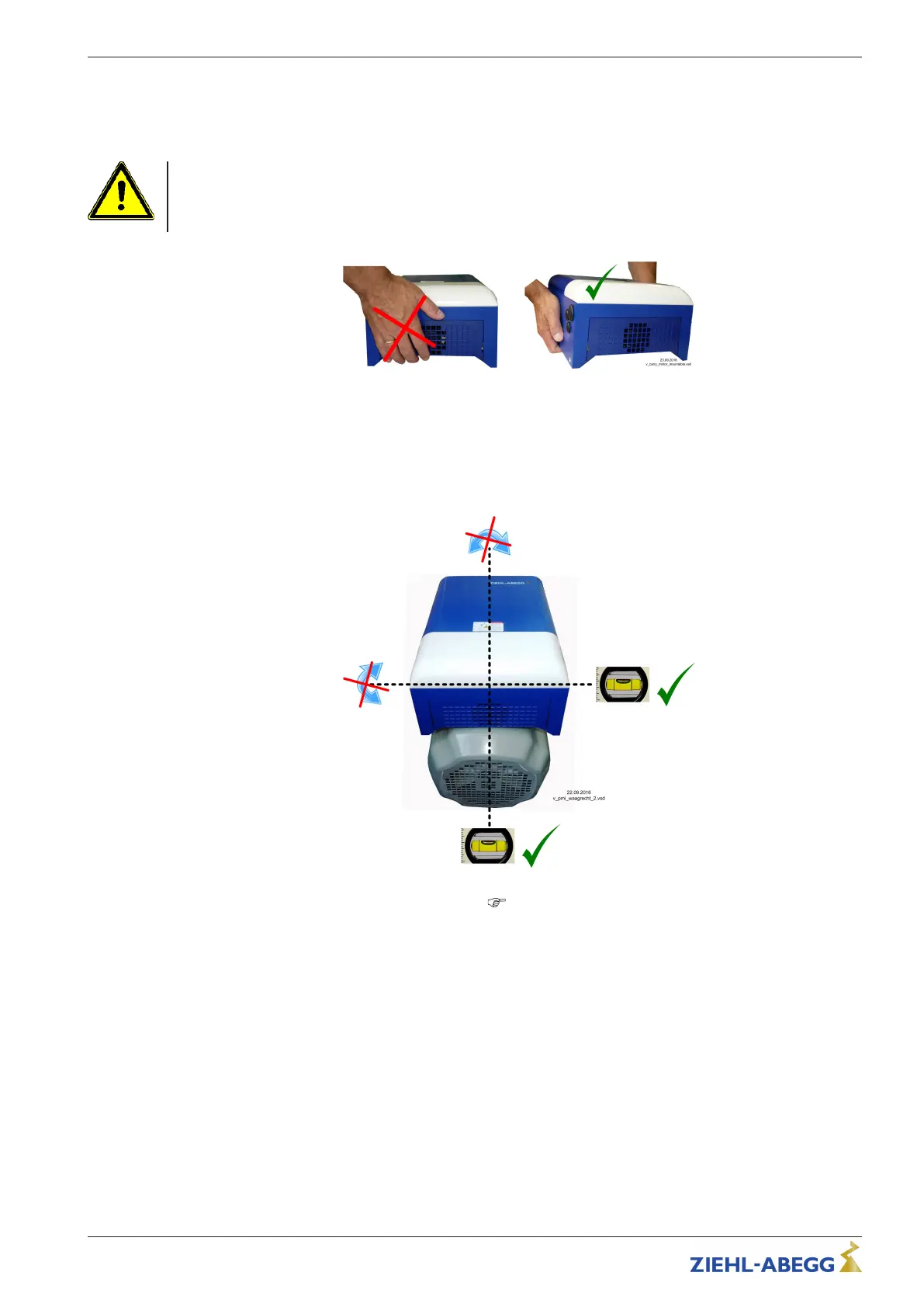

4 Mounting
4.1 General notes
Caution!
The following points must be complied with during the mechanical installation to avoid causing a defect
in the device due to assembly errors or environmental influences:
•
Do not lift the device at the side by the air grille because this is only snapped on!
•
Before installation remove the device from the packing and check for any possible shipping
damage! Start-up is not allowed in the case of transport damage!
•
Do not allow drilling chips, screws and other foreign bodies to reach the device interior!
•
Keep enough distance (minimum 50 mm) to ensure unobstructed cooling- air feed as well as
unobstructed outgoing air discharge.
•
Only a horizontal position of the device is allowed, because only in this position specified housing
protection class IP54 is ensured.
•
Care must be taken to avoid direct radiation from the sun!
•
Be sure to observe proper heat dissipation (
Technical data, heat dissipation).
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Mounting
L-BAL-E300-GB 1905 Index 001 Part.-No.
10/48
