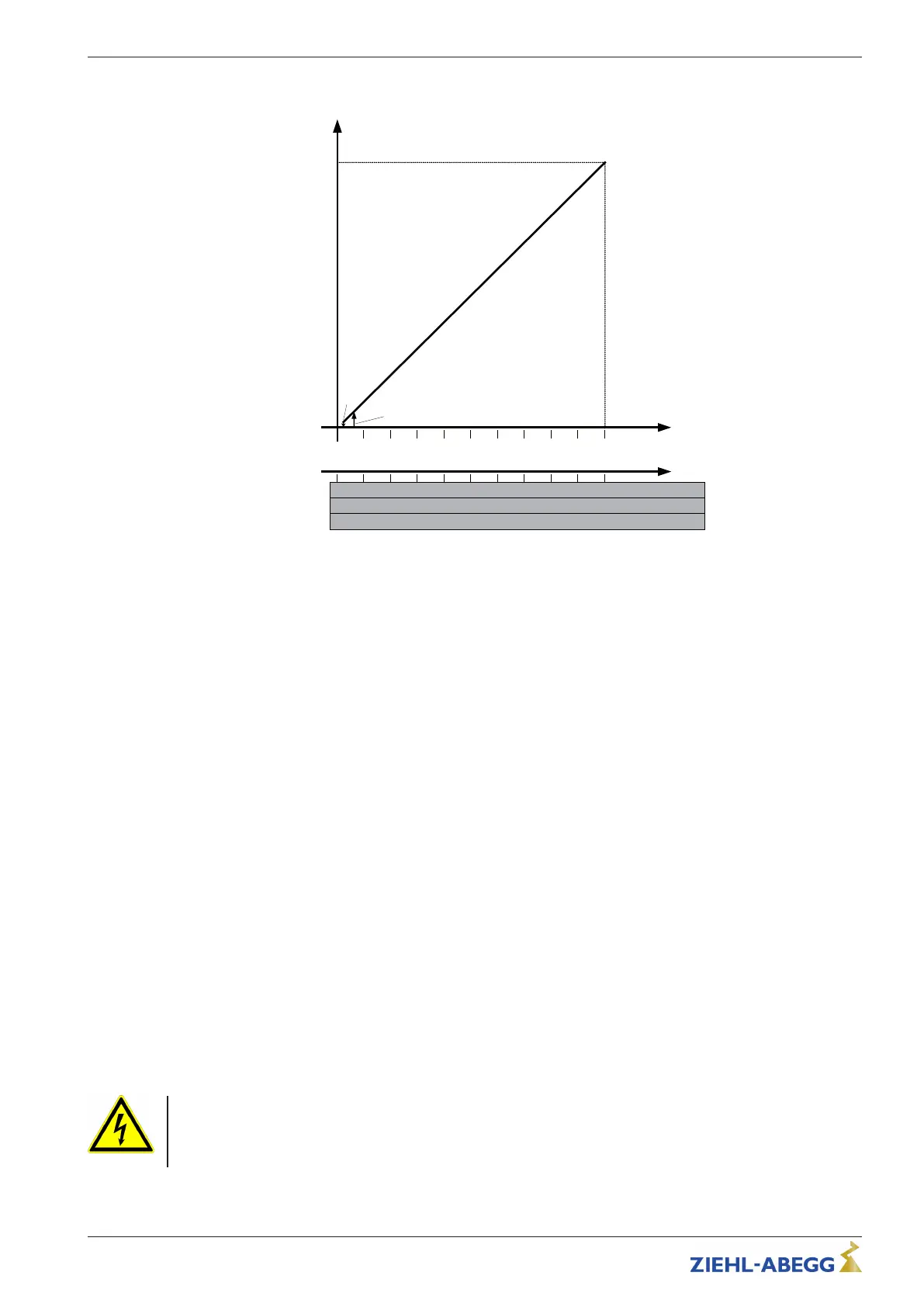

Analog In 1: Speed setting signal (0 - 10 V, 0...20 mA, 0...100 % PWM)
Fout: Output frequency
Uout: Output voltage
Ustart: Start-up voltage
Foff: Shutdown Freq.
Fon: Switch on Freq.
Fedge: Edgefrequency
Fmax: Maximum frequency
5.8 Output voltage “10 V”
Voltage supply e.g. for speed setting by external potentiometer.
Connection: “10 V” - “GND” (max. load see Technical data und connection diagram).
•
It is not permissible to connect voltage outputs of several devices to each other!
•
It is not permissible to connect voltage outputs in the device to each other!
5.9 Voltage supply for external devices (+24V, GND)
A voltage supply is integrated for external devices e.g. a sensor (max. current load see technical
data).
In case of overload or short circuit (24 V – GND), the external power supply is shut down (multi-fuse).
The device performs a “Reset” and continues operation.
•
It is not permissible to connect voltage outputs of several devices to each other!
•
It is not permissible to connect voltage outputs in the device to each other!
5.10 Digital input “D1” for enable (device ON / OFF)
Electronic switch off via floating contact at terminals “D1” - “+24V” (input resistance and voltage range
see Technical data).
Function factory setting for “D1”:
•
Device “ON” for closed contact.
•
Device “OFF” with opened contact.
Activation via floating contacts, a low voltage of approx. 24 V DC is connected.
Danger due to electric current
•
No disconnection (no potential isolation in accordance with VBG4 §6) in remote control of the
device!
•
Never apply line voltage to the digital input!
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Electrical installation
L-BAL-E300-GB 1905 Index 001 Part.-No.
33/48
