4.2 Parts required for mounting on the motor

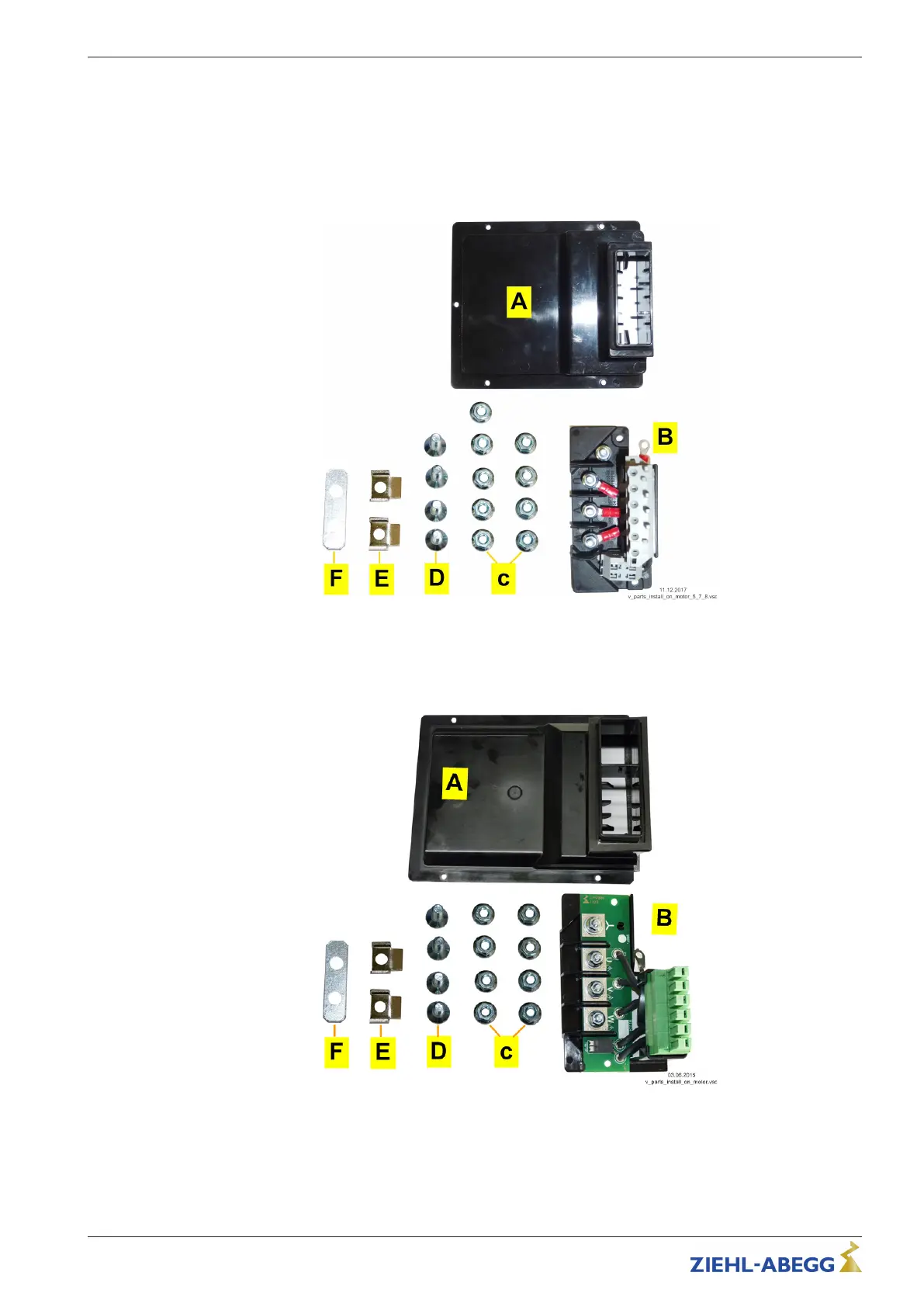

The following parts are required for mounting the frequency inverter on the motor:
1. Mounting parts in scope of delivery of the device
FSDM5/7.5/8.5
A Cover terminal compartment
B Motor connection adapter
C Serrated locking nuts M4
D Countersunk screw M5 x 20
E PE clamp
F Holder for PE clamps
FSDM12/17
A Cover terminal compartment
B Motor connection adapter
C Serrated locking nuts M4
D Countersunk screw M5 x 20
E PE clamp
F Holder for PE clamps
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Mounting
