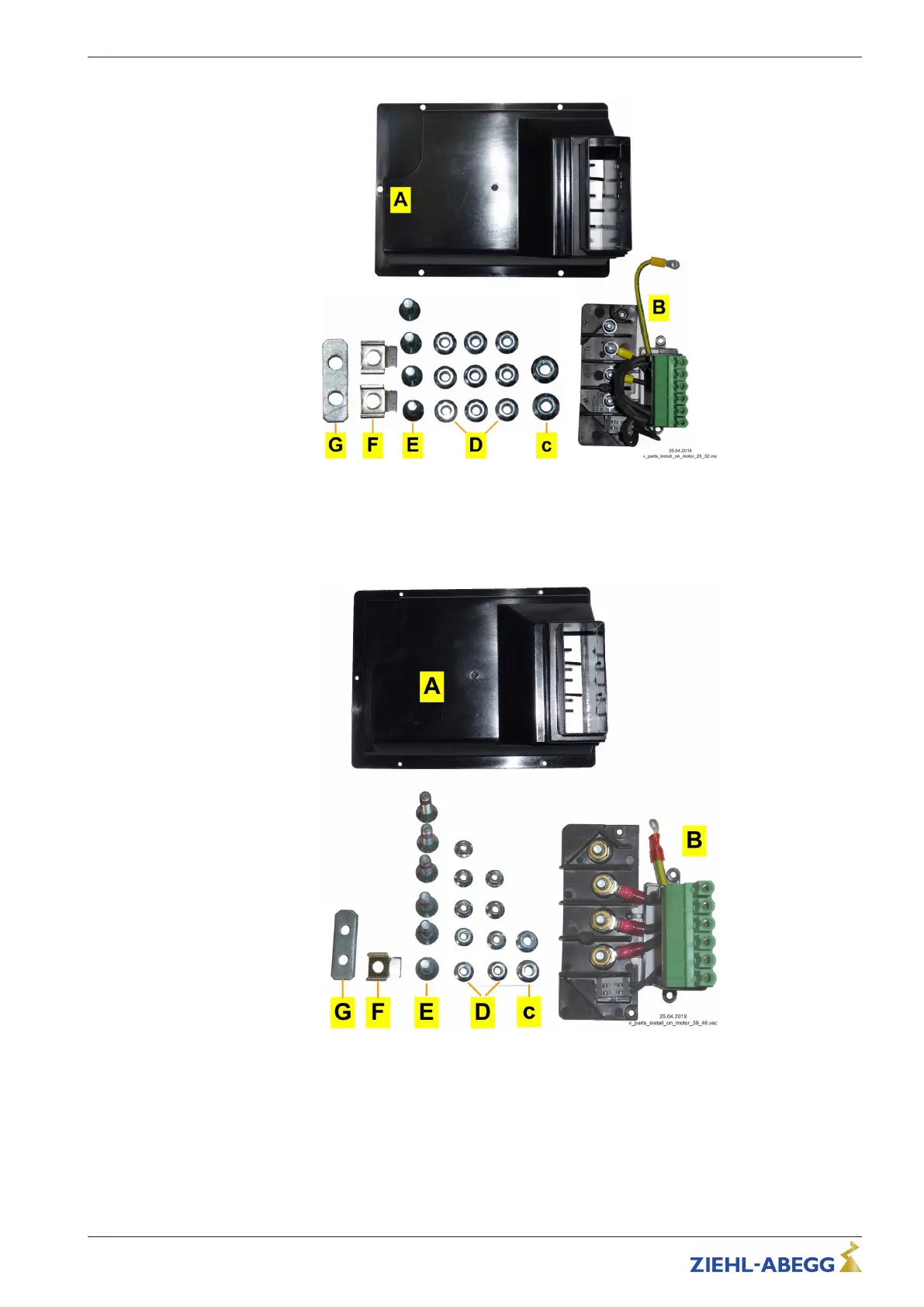

FSDM25/32
A Cover terminal compartment
B Motor connection adapter
C Serrated locking nuts M5
D Serrated locking nuts M4
E Countersunk screw M5 x 20
F PE clamp
G Holder for PE clamps
FSDM39/46
A Cover terminal compartment
B Motor connection adapter
C Serrated locking nuts M5
D Serrated locking nuts M4
E Countersunk screw M6 x 20
F PE clamp
G Holder for PE clamps
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Mounting
L-BAL-E300-GB 1905 Index 001 Part.-No.
