4.4.3 Procedure FSDM25/32
See the following drawing order 1. - 5.
1. Apply PU sealant “Bond + Seal” to the whole flange face of the motor terminal box (any uneven-
ness such as residue adhesive must be removed first to ensure that the adapter plate lies flat).
2. Fasten the adapter plate with the screws of the terminal box (12 Nm / 106.2 Lb In).
1 Holes for fastening adapter plate to flange of terminal box with the screws provided
2 Studs for fastening motor connection adapter with 4 x serrated locking nuts M4
2a alternative mounting terminal block with 2 x serrated locking nuts M4
3 Studs for fastening holder of the PE clamp with 1 x serrated locking nuts M5
4 Studs for fastening cover terminal compartment with 5 x serrated locking nuts M5
5 Insert nuts for fastening frequency inverter with 4 x countersunk screws M5 x 20

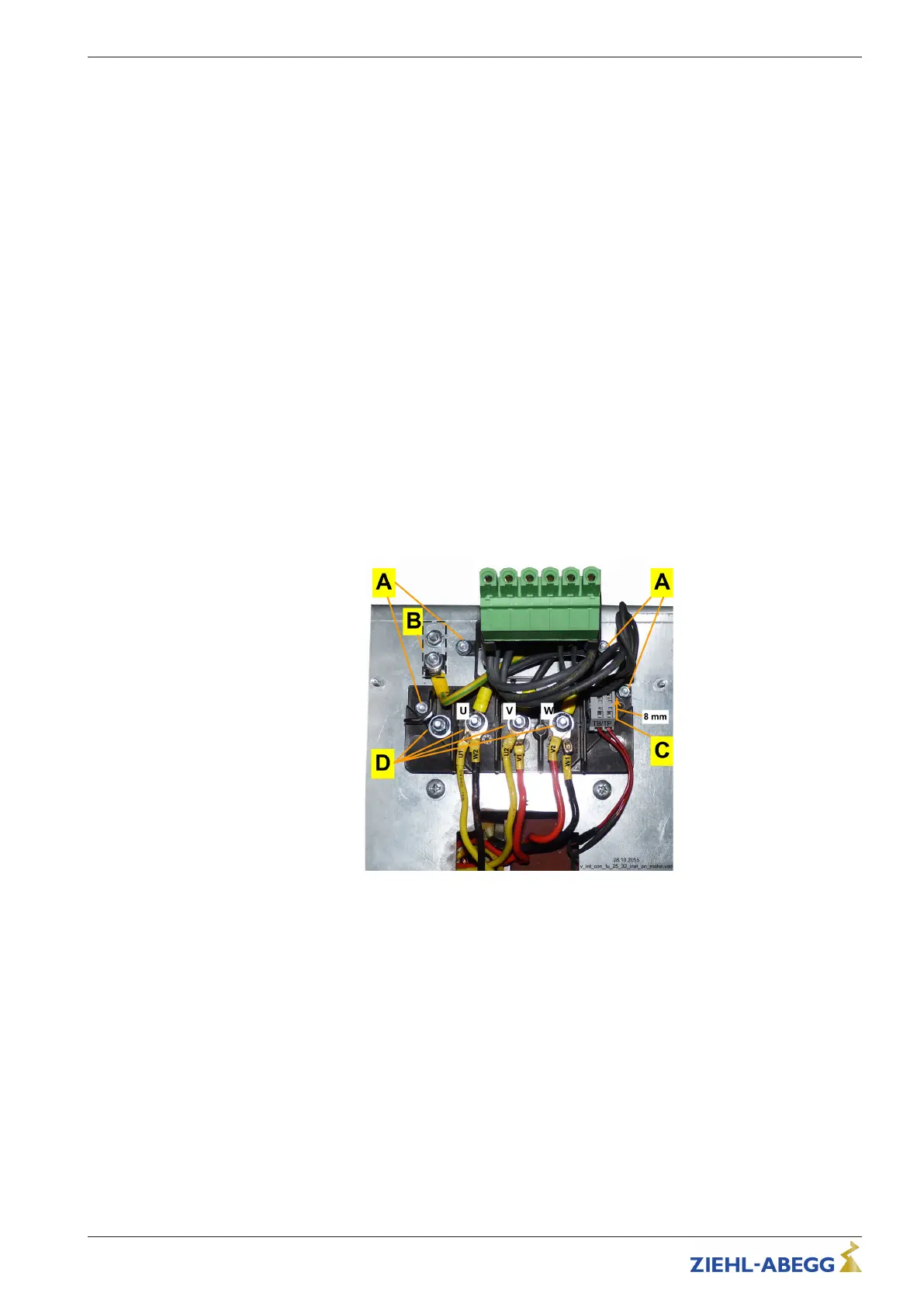

3. Fasten motor connection adapter and establish the electrical connection.
(For a short cable routing it is alternatively possible to break off the terminal block of the motor
connection adapter and mount it offset at 90° to the stud “2a”.)
– A: Fasten the motor connection adapter with 4 x M4 serrated locking nuts (2.5 Nm / 22.1 Lb In)
– B: Fasten the holder and the two PE clamps with 2 x M5 serrated locking nuts and connect the
protective earth (12 Nm / 106.2 Lb In)
– C: Connect the “TB” or “TP” thermal protectors. Cut off any ring cable lugs in advance (required
stripping length 8 mm)
– D: Connect motor winding (2 Nm / 17.7 Lb In)
Attention!
Circuit type (Y or D) and settings of the frequency inverter must be compatible.
4. Fit the cover of the terminal compartment with five M4 serrated locking nuts (2.5 Nm / 22.1 Lb In).
5. Fasten the frequency inverter with 4 countersunk screws M5 x 20 (TORX T20) (2.5 Nm /
22.1 Lb In).
