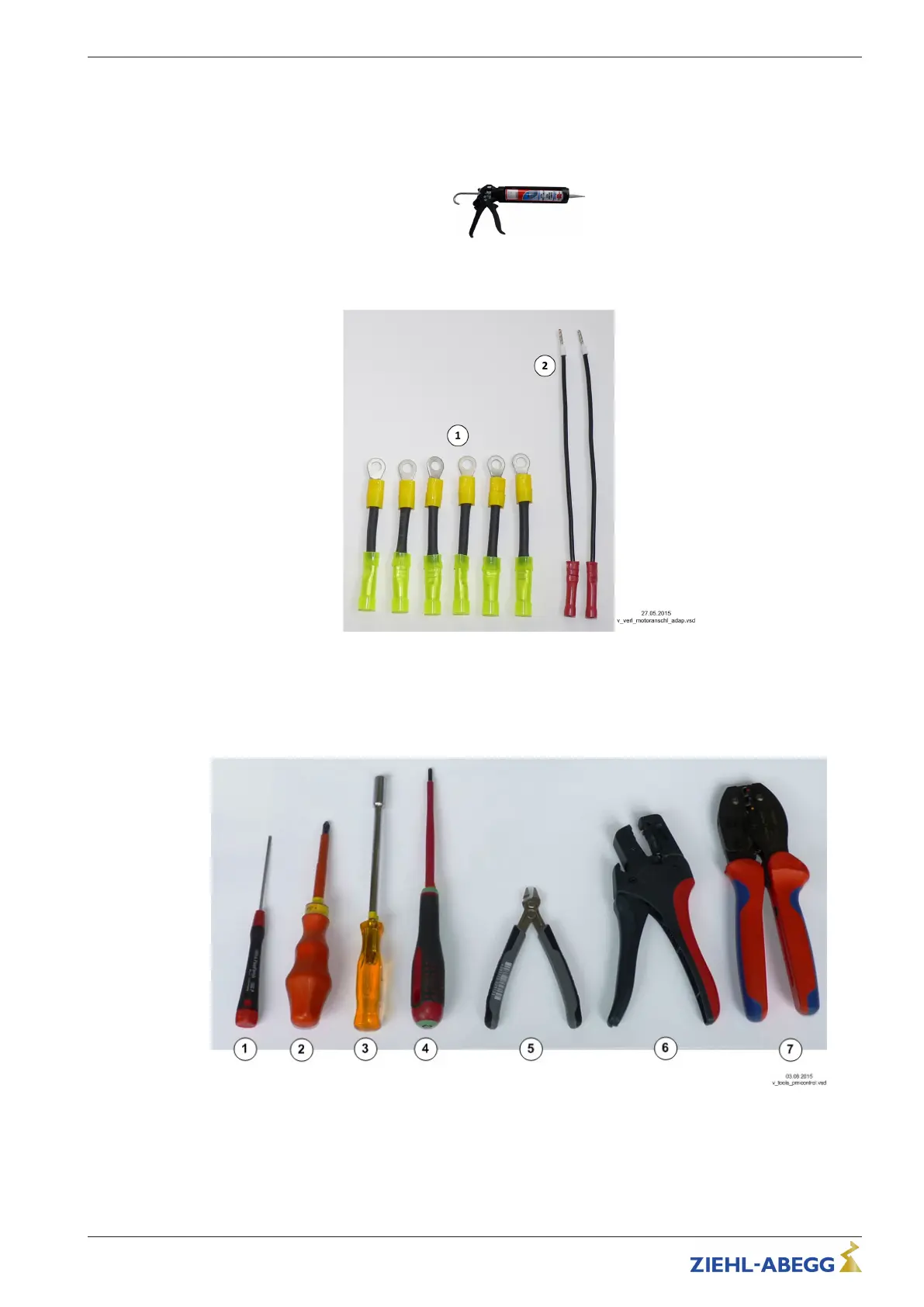

3. PU sealant
We recommend the Bond + Seal Power construction adhesive made by Würth (Art. No. 08932352) for sealing between the
adapter plate and the terminal box flange.
4. Cable extension for FSDM12/17 (optional)
This set is available as an accessory (item no. 00164928) to extend the motor connections to the adapter if required
1 For extension of the motor winding, length approx. 70 mm, cross section 6 mm
2
2 For extension of the motor winding, length approx. 140 mm, cross section 1.5 mm
2
4.3 Tool list
1 Flat-head screwdriver 3 mm
2 Cross slot screwdriver
3 Socket-head screwdriver 7 mm, for FSDM25/32 additional 8 mm
4 Torx screwdriver T20
5 Wire cutter
6 Cable stripper
7 Crimper
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Mounting
