4.4.4 Procedure FSDM39/46

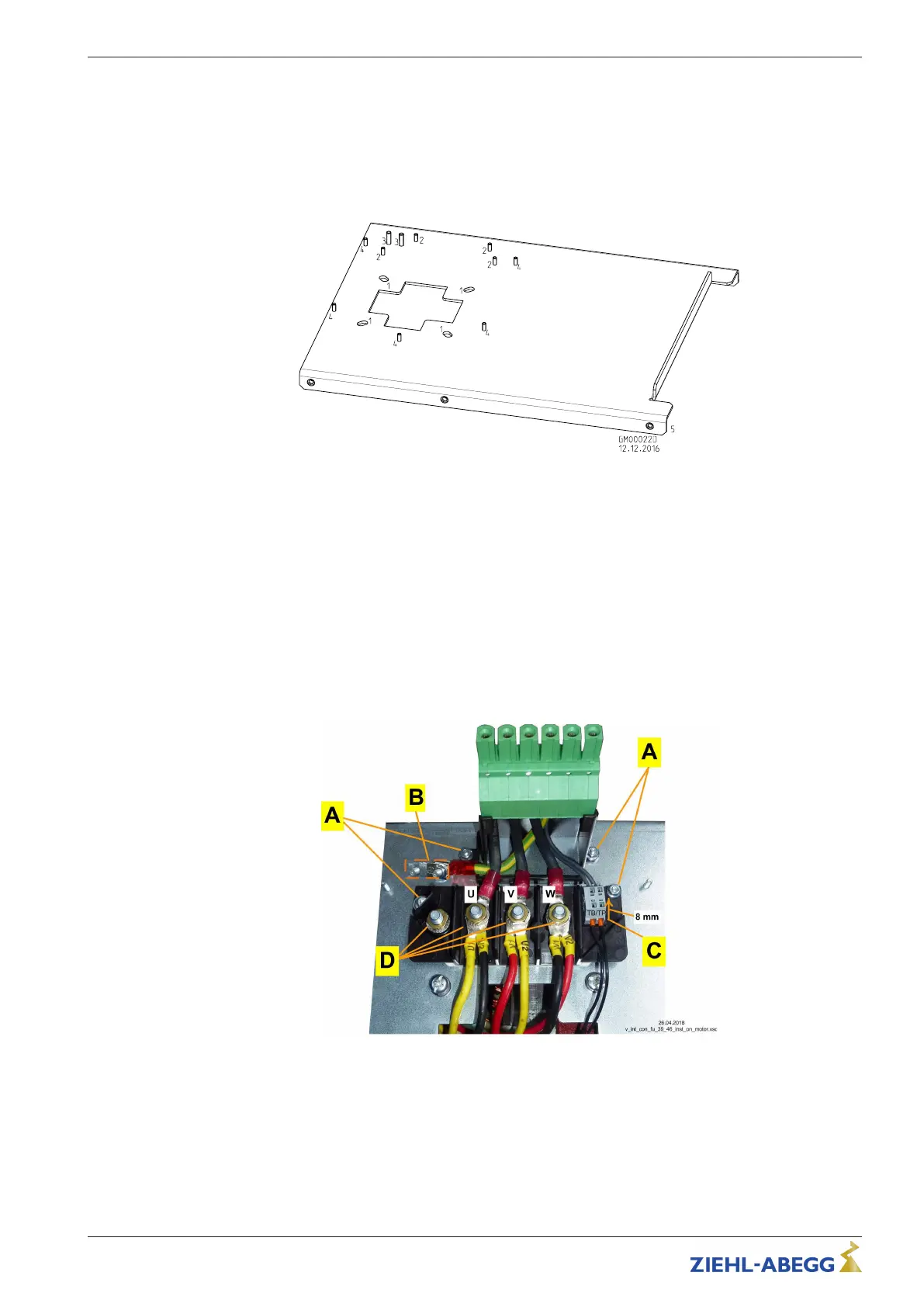

See the following drawing order 1. - 5.
1. Apply PU sealant “Bond + Seal” to the whole flange face of the motor terminal box (any uneven-
ness such as residue adhesive must be removed first to ensure that the adapter plate lies flat).
2. Fasten the adapter plate with the screws of the terminal box (12 Nm / 106.2 Lb In).
1 Holes for fastening adapter plate to flange of terminal box with the screws provided
2 Studs for fastening motor connection adapter with 4 x serrated locking nuts M4
3 Studs for fastening holder of the PE clamp with 1 x serrated locking nuts M5
4 Studs for fastening cover terminal compartment with 5 x serrated locking nuts M5
5 Insert nuts for fastening frequency inverter with 6 x countersunk screws M6 x 20
3. Fasten the motor connection adapter and make the electrical connection.
– A: Fasten the motor connection adapter with 4 x M4 serrated locking nuts (2.5 Nm / 22.1 Lb In)
– B: Fasten the holder the PE clip with M5 serrated locking nut and connect the protective earth
(12 Nm / 106.2 Lb In)
– C: Connect the “TB” or “TP” thermal protectors. Cut off any ring cable lugs in advance (required
stripping length 8 mm)
– D: Connect motor winding (2 Nm / 17.7 Lb In)
Attention!
Circuit type (Y or D) and settings of the frequency inverter must be compatible.
4. Fit the cover of the terminal compartment with five M4 serrated locking nuts (2.5 Nm / 22.1 Lb In).
5. Fasten the frequency inverter with 6 countersunk screws M6 x 20 (TORX T20) (2.5 Nm /
22.1 Lb In).
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Mounting
L-BAL-E300-GB 1905 Index 001 Part.-No.
22/48
