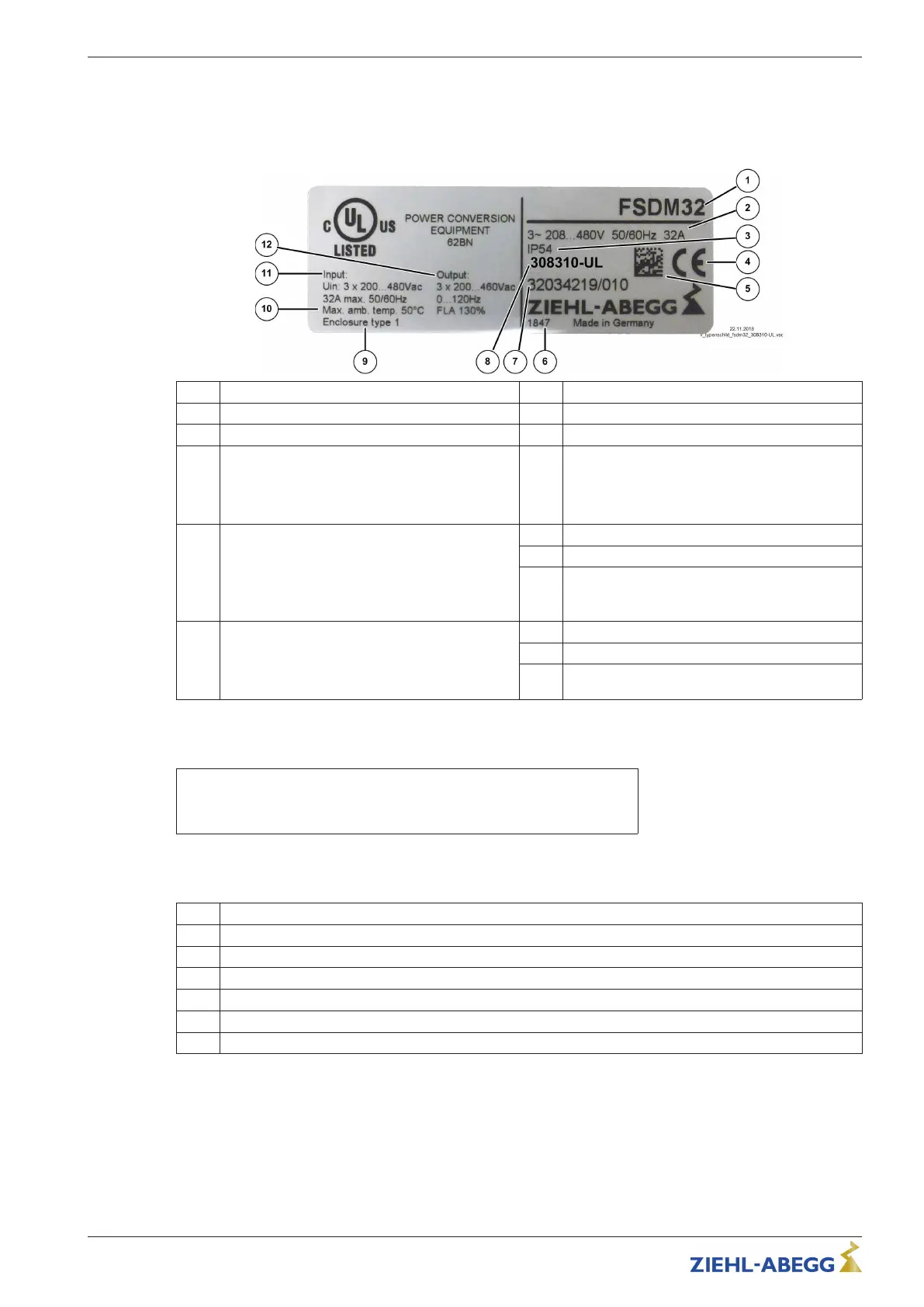

3.3 Name plate & Type key
The name plate carries the technical data valid for the delivered product.
Example for name plate
no. Explanation no. Explanation
UL related data ZIEHL-ABEGG related data
9
Enclosure type
1
Type designation
10
Max. ambient temperature authorisation at rated
power
2
Type of voltage
Line voltage
Mains frequency
Rated current (output)
11
Input values:
Rated voltage
Rated current
Rated frequency
Rated power
3
Protection rating
4
European mark of conformity
5
DATA MATRIX Code confirmation number
12
Output values:
Output voltage
Output frequency
Value overload protection motor current
6
Production code
7
Serial number
8
Part no.
Type key and article number
Example for type
Example for article number
F S D M 32
308310 -UL
I II III IV V VI VII
Explanation
I Type of device (F= Frequency inverter)
II Control variable (S = analog controller)
III Voltage supply (D = three-phase current)
IV Motor protection (M = TB+TP)
V Rated current output (32 A)
VI Part no.
VII addition article number
Operating Instructions PMIcontrol Basic-M – model series FSDM5...46 Product overview
L-BAL-E300-GB 1905 Index 001 Part.-No.
8/48
