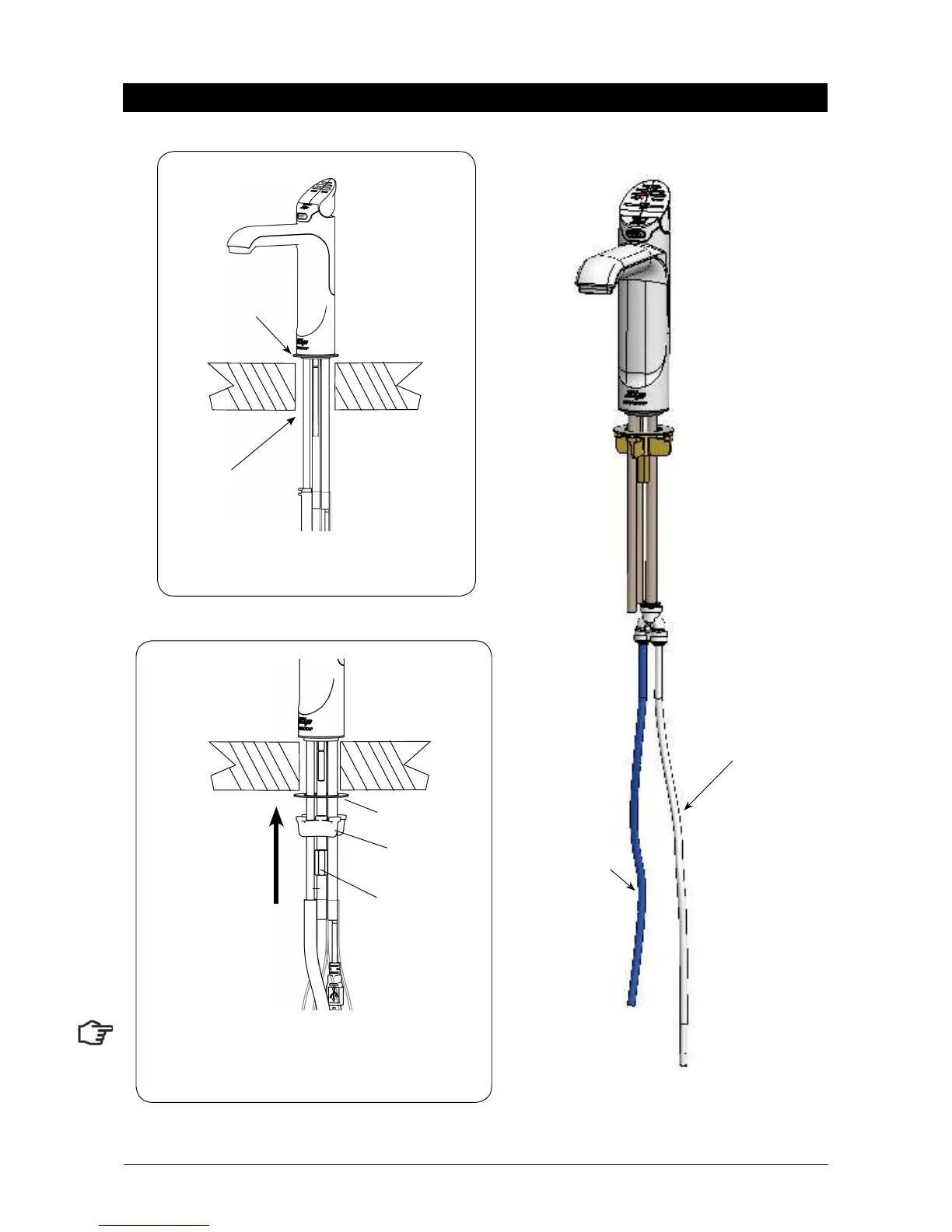

801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - V1.00 Page 11 of 40
Installation Instructions
BLACK
PLASTIC
SPACER
1.3
Pass all the hoses, tubes and USB lead
through the 35mm hole.
35mm hole
1.4
NOTE: feed each of the three tubes and
electrical cable evenly in between the legs of
the SPIDER CLAMP when installing.
Fit the
STAINLESS STEEL
WASHER,
SPIDER CLAMP,
AND 6mm NUT.
6mm NUT
SPIDER CLAMP
STAINLESS
STEEL WASHER
White
sparkling
Blue
chilled
To Next Page
