Page 10 of 40 801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - v1.00
Apply a light smearing of silicon sealant on the
underside of the spacer to ensure a watertight fit.
1.2
Cut a 35mm hole in the bench / sink top.
BENCH TOP
1.1
Ø35mm
ALL THREAD
ROD
STAINLESS
STEEL
SPACER
SPIDER
CLAMP
NUT
BLACK PLASTIC
SPACER

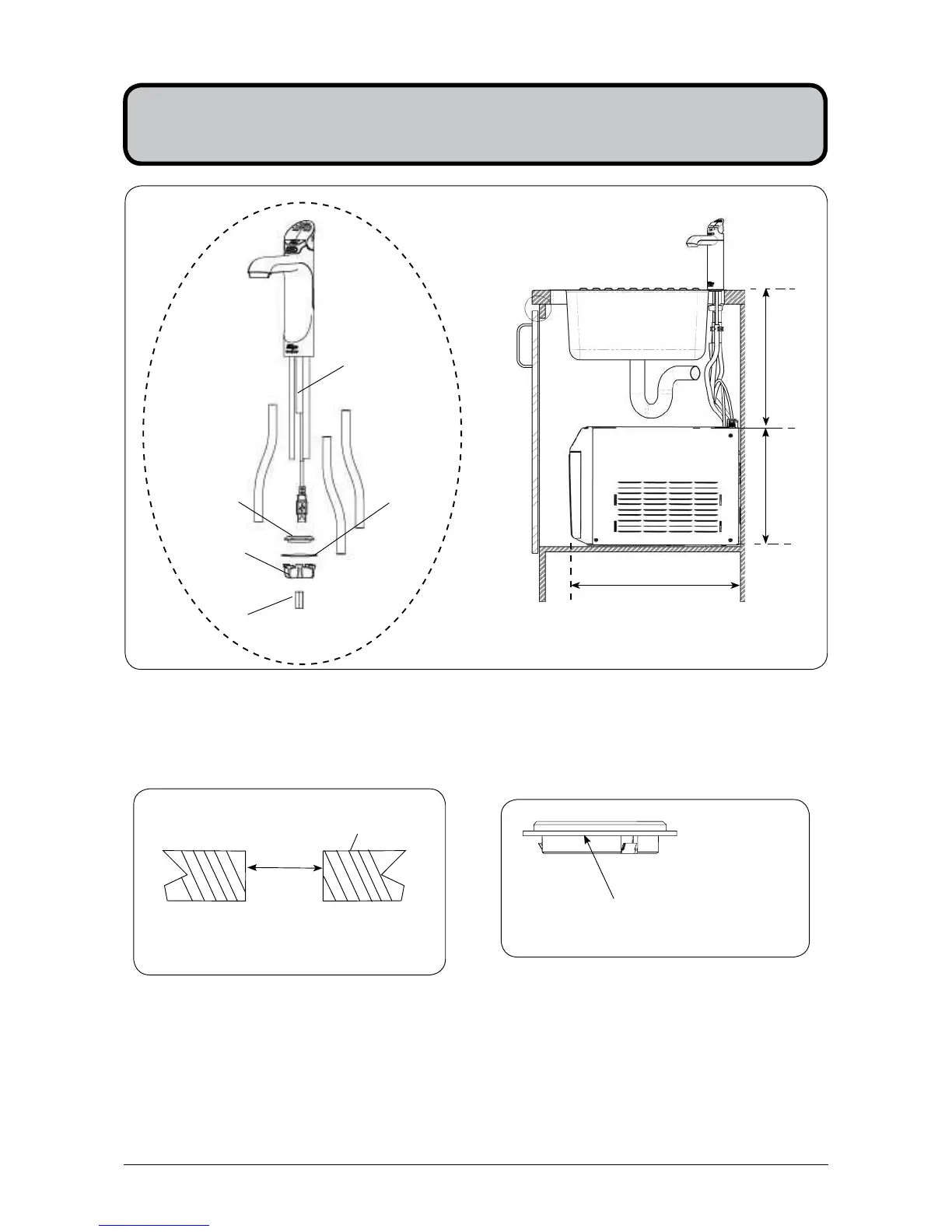

Tap assembly exploded view and kitchen layout side view.
470mm
335mm
HydroTap - Tap Installation
Min 300mm
