Page 34 of 40 801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - v1.00
Installation Instructions

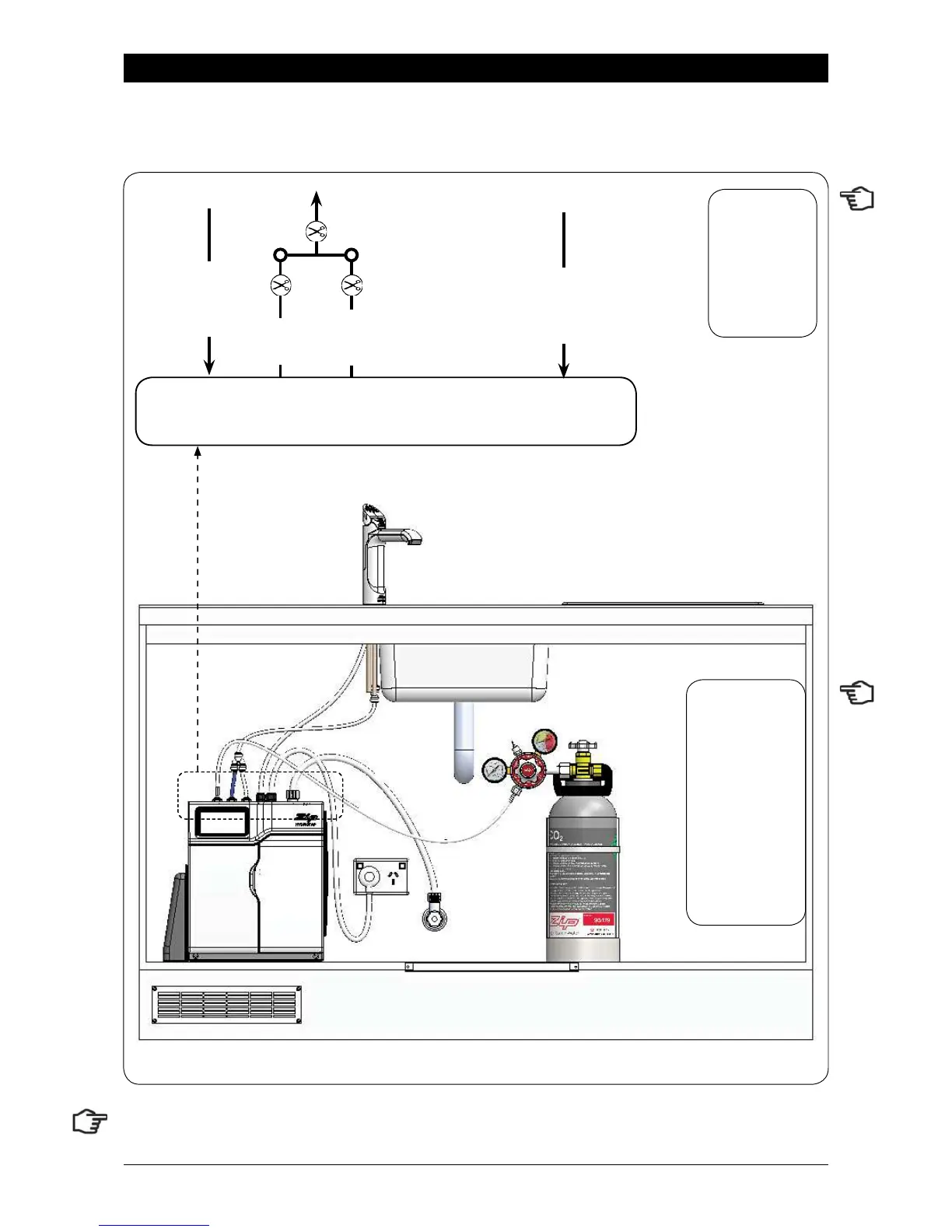

6.8 Model CS 175 HydroTap
POWER
CORD
USBCHILLED
OUTLET
MAINS
IN
SPARKLING
OUTLET
CO2
IN
BLUE
WHITE
Note: All
plastic tubes
must be cut to
size. They must
have a constant
fall back to the
unit.
GAS IN
BRAIDED
Note:
- Mains hose
length is 750mm
- Plug and Cord
length is 1800mm
Position the
underbench unit
according to the
hose and cord
lengths supplied
Note: The connection tubes supplied with the Tap, Booster and Ext filter/ softener CANNOT be lengthened.
Take time to consider hose lengths when determining the mounting positions for the options
To Next Page
