2.1 Ventilation for All Models
Proper air circulation must be provided for all Boiling and Boiling Chilled Sparkling models. The system will
operate correctly only if the recommended air gaps are achieved during Installation. It is recommended to
install vent duct and louvre panels for under floor and /or door vent systems.
**Note: Inlet and outlet vents should be separated by a Min 100mm, to avoid hot air recirculation.
IMPORTANT:
See section 6.3 for clearances.
When installing air flow ducts, the following tools will be required:
•
Jigsaw and
•
Keyhole or Wall Board saw.
Section 2
Ventilation
Cool Air IN
via cabinet
floor, front
vent grille
Warm Air OUT via kickboard louvre

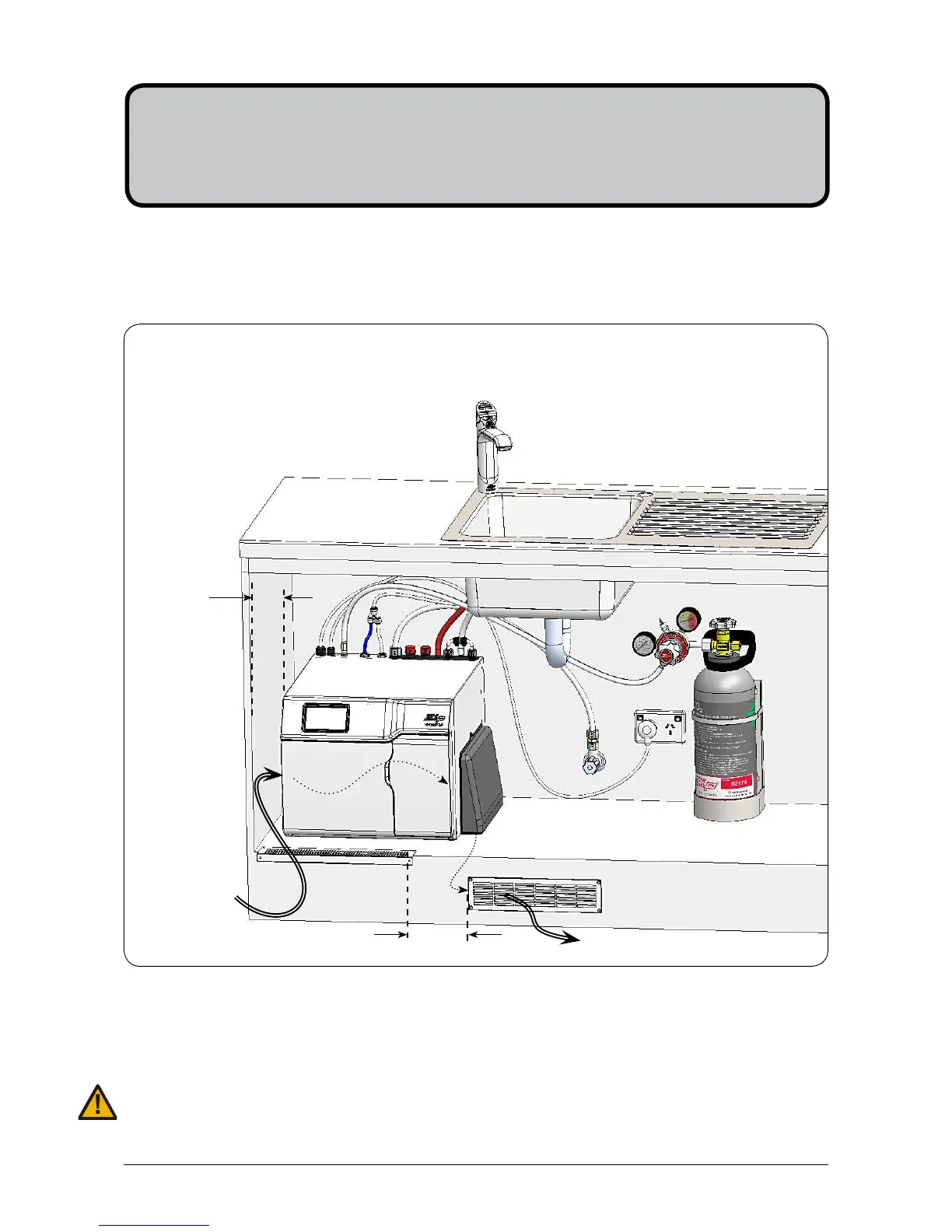

Recommended Installation showing the correct air flow
MIN.
50mm
Air Gap
**MIN.
100mm
