Page 18 of 40 801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - v1.00
Installation Instructions
1.17

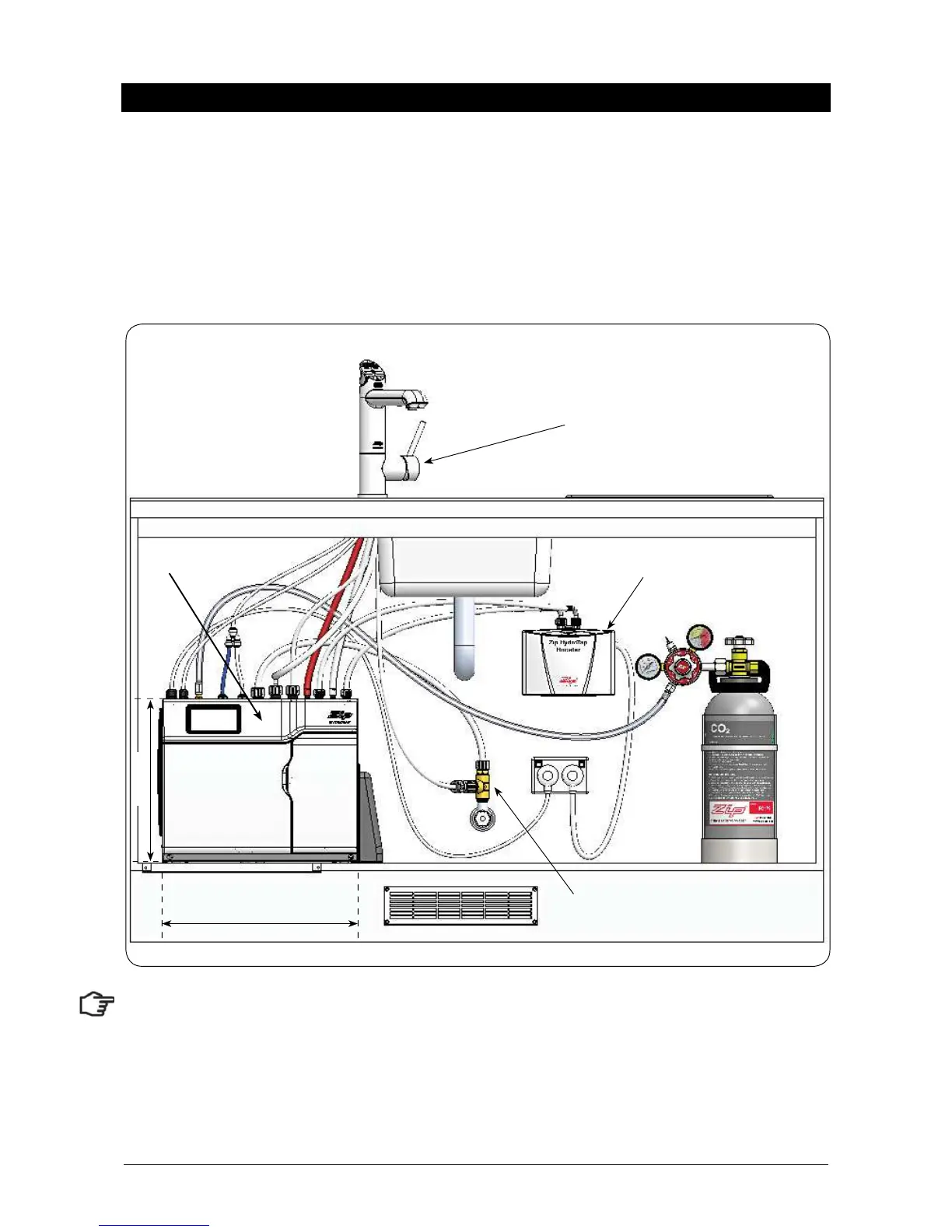

Typical All-In-One Vented assembly with Booster heater
Booster
BCSHA Unit
A-I-O Tap
400mm
335 mm
Restrictaflow valve & Tee piece
(Supplied)
Note:
The All-In-One vented taps require a Zip Restrictafl ow valve and Tee piece, as supplied, to be fi tted in
the cold water supply line, from the isolation valve (Not supplied), to the mixer tap. (See diagrams)
Note: All plastic tubes must be cut to size. They must have a constant fall back to the unit.
Note: Fit the insulation (supplied) to the JG tubes used for Boiling and for Chilled water
To Next Page
