801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - V1.00 Page 17 of 40
Installing the All-In-One Tap
Installation Instructions
1.15
1.16
O-RING
SINK TOP

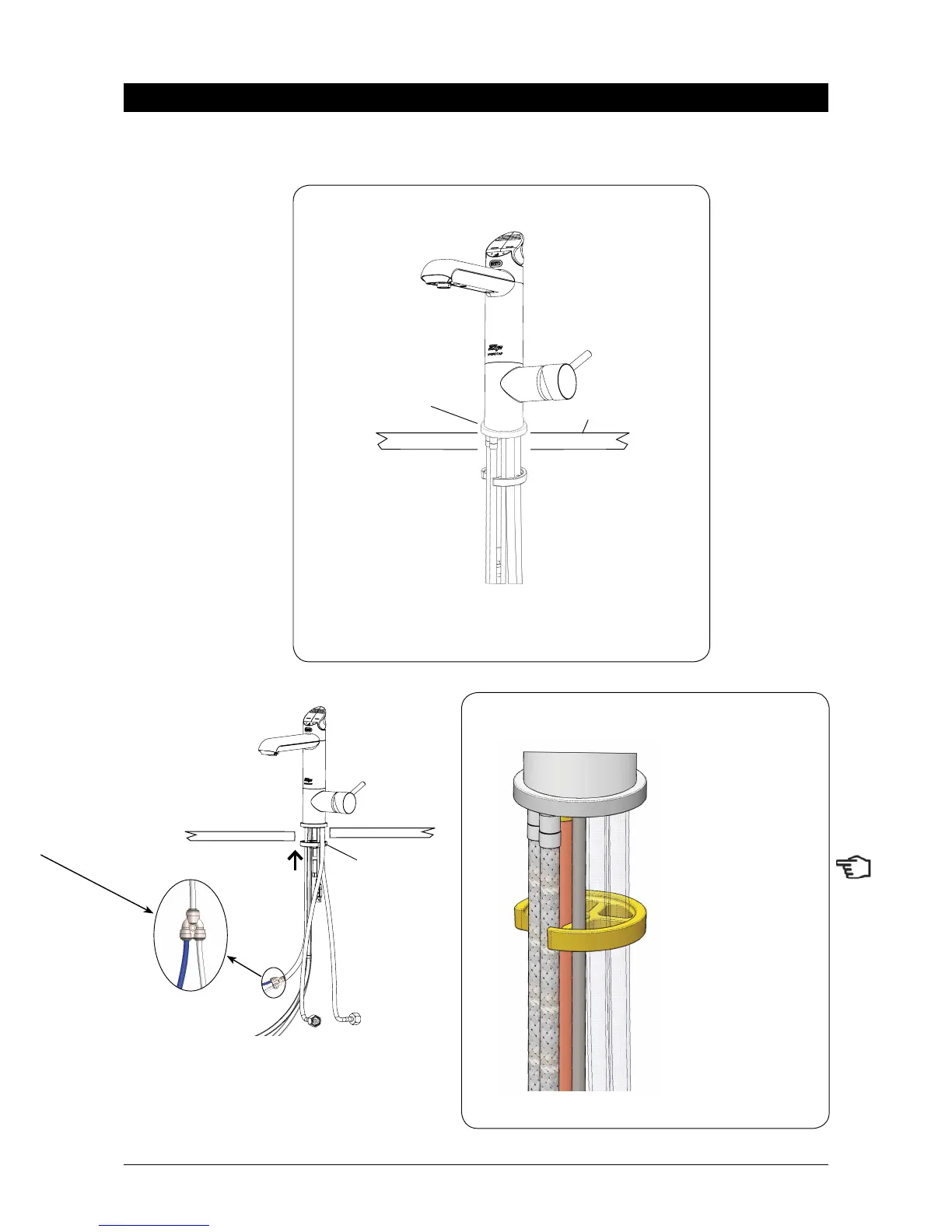

Fit the O-ring to the underside of the AIO tap
then pass all hoses through the 50mm hole.
Mount the BASE BLOCK SPIDER to the
underside of the All-In-One Tap.
BASE BLOCK
SPIDER
NOTE:
Feed each of the tubes
and electrical cable
evenly in between
the legs of the BASE
BLOCK SPIDER.
To Next Page
