801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - V1.00 Page 31 of 40
Installation Instructions
Note: to activate the filter, flush at least 10L of water through the filter before connecting to a softener or to a
Booster heater.
: Not required for AIO mains pressure HydroTap.
Note: The connection hoses supplied with the Tap, Booster and Ext filter/ softener CANNOT be lengthened.
External HOT and COLD
isolation valves
(Not Supplied)
Tee piece
(Supplied)

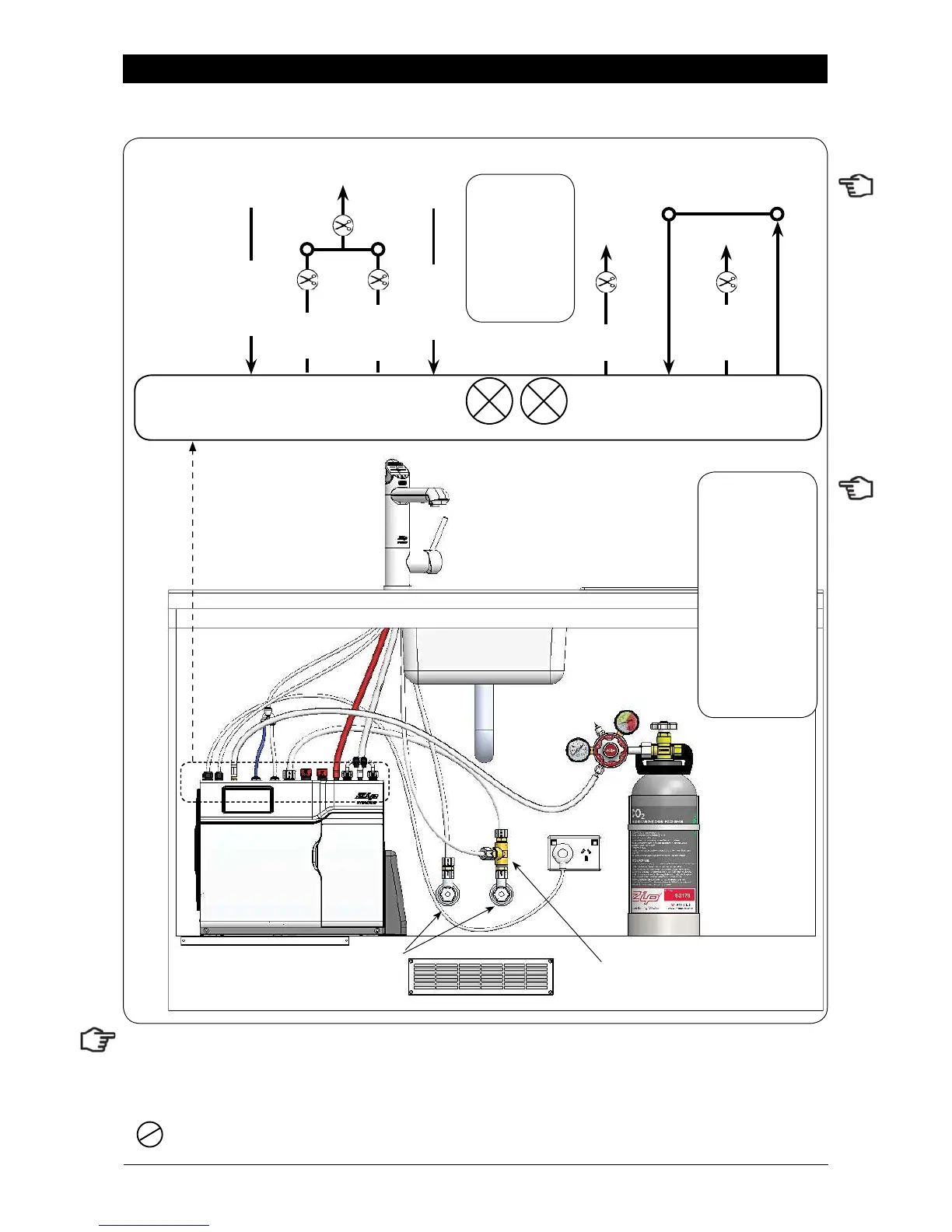

6.5 Model All-In-One Mains Pressure
Note: All
plastic tubes
must be cut to
size. They must
have a constant
fall back to the
unit.
RED
CLEAR
BRAIDED
GAS IN
POWER
CORD
USB
CHILLED
OUTLET
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
SPARKLING
OUTLET
CO2
IN
BLUE
WHITE
Note:
- Mains hose
length is 750mm
- Plug and Cord
length is 1800mm
Position the
underbench unit
according to the
hose and cord
lengths supplied
To Next Page
