801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - V1.00 Page 9 of 40
Special Tools Required:
In addition to normal tools, the following will be required:
For the standard and Mixer taps:
•
35mm diameter sheet metal hole punch for sink tops. (Not supplied)
•
35mm diameter hole saw for timber bench tops. (Not supplied)
•
Nut runner tube spanner (supplied) for fixing tap assembly.
For the All-In-One tap:
•
50mm diameter sheet metal hole punch for sink tops. (Not supplied)
•
50mm diameter hole saw for timber bench tops. (Not supplied)
•
Nut runner tube spanner (supplied) for fixing tap assembly.
When installing a font unit, the following will be required:
•
108mm diameter sheet metal or hole saw to suit surface being cut.

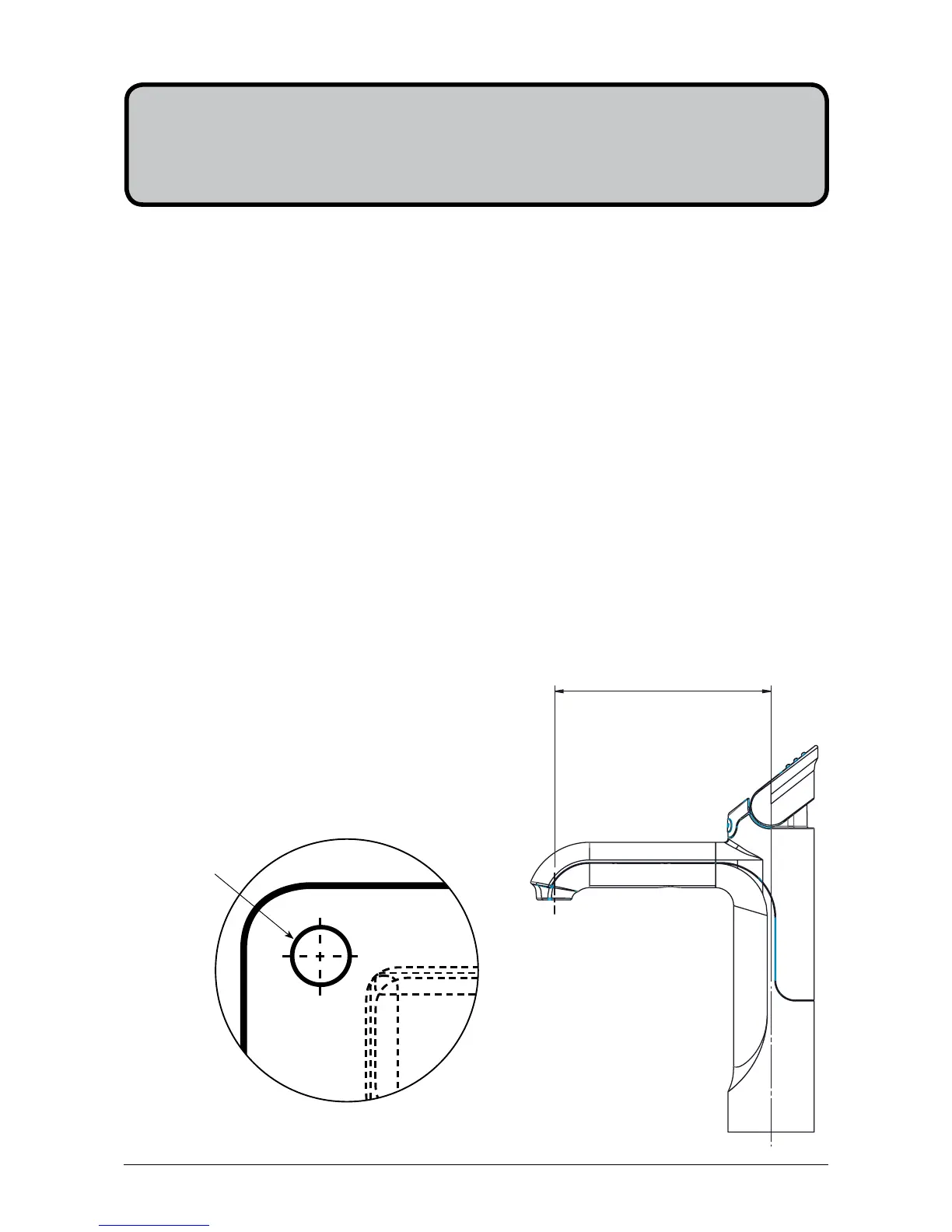

Hole positioning:
Position the tap such that it dispenses into the sink
bowl with ample clearance for a cup or tea pot. Al-
ternatively, the tap could be mounted away from the
sink using a Zip Font, available as an accessory.
Section 1
Tap Installation
35mm hole
To Next Page
