Zip HydroTap BCS160 - Model BCS 240;175

Page 30 of 40 801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - v1.00
Installation Instructions
: Not required for standard BCSHA HydroTap models
Options
Note: The connection tubes supplied with the tap head and Booster assemblies CANNOT be lengthened.

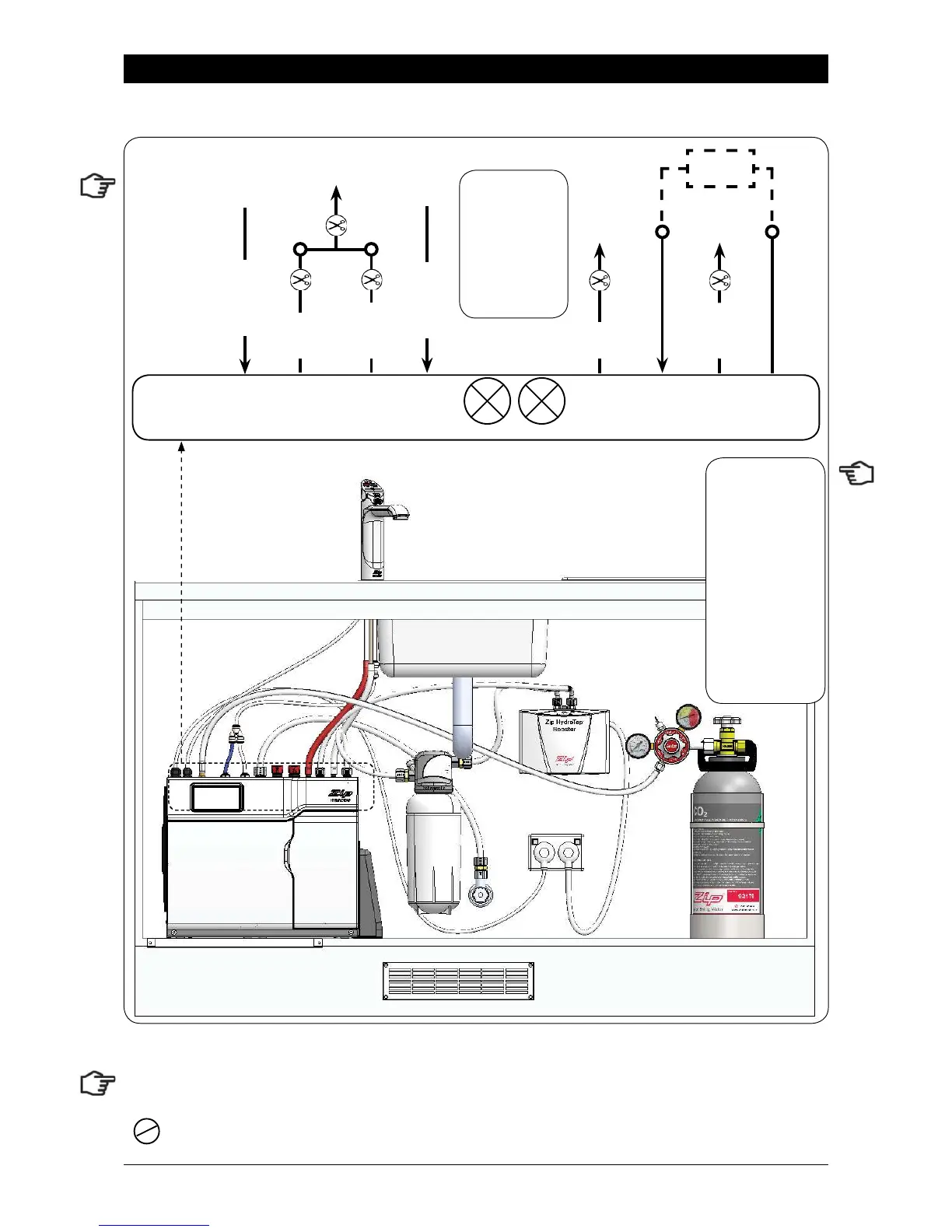

6.4 Model BCSHA 240/175
Booster and
Filter/Softener
options
Note: All
plastic tubes
must be cut to
size. They must
have a constant
fall back to the
unit.
RED
CLEAR
BRAIDED
POWER
CORD
USB
CHILLED
OUTLET
MAINS
IN
MIXER
OUT
MIXER
IN
BOILING
OUT
BYPASS
IN
VENT BYPASS
OUT
SPARKLING
OUTLET
GAS IN
CO2
IN
BLUE
WHITE
Note:
- Mains hose
length is 750mm
- Plug and Cord
length is 1800mm
Position the
underbench unit
according to the
hose and cord
lengths supplied
