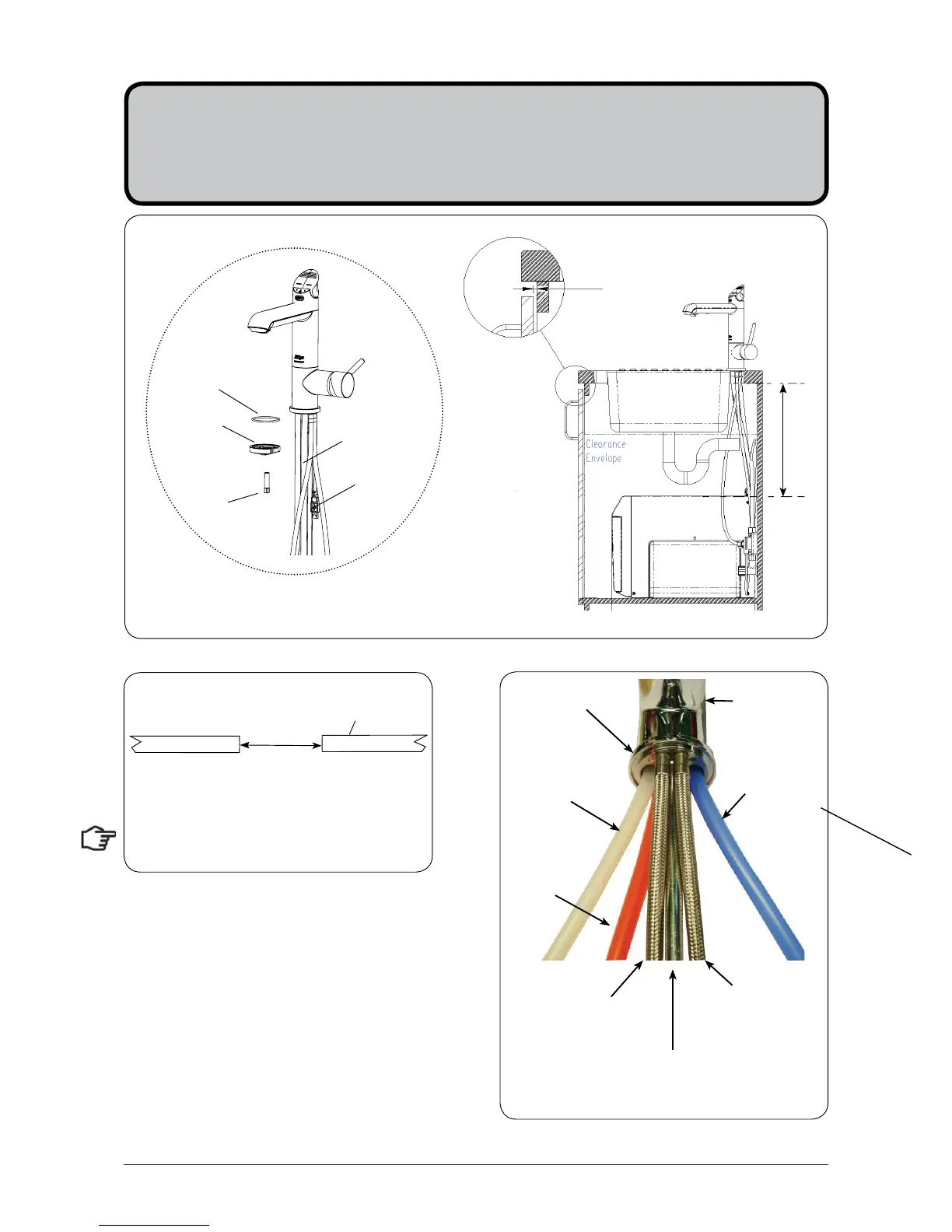

Page 16 of 40 801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - v1.00
Cut a 50mm hole in the bench / sink top.
SINK TOP
1.13
50mm
NOTE: make sure the tap location will allow
the nozzle to drain into the sink.
All-In-One Tap
Vented Installation
Note: (Check the hoses are fitted correctly)
1.
The braided hose with the BLUE ring markings
must be fitted to the Right Hand Side when the tap
is oriented as shown.
2.
Check the RED tube is to the LHS and the Blue
tube the RHS.
3.
The braided hose from the ‘Mixer Out’ fitting is
attached to the central position.
4.
The clear silicon tube is the vent line from the
underbench unit to the tap.
Min 300mm
O-RING
BASE
BLOCK
SPIDER
BASE
BLOCK
NUT
USB CABLE
ALL THREAD
ROD
BLUE Chiller
connection
for Tee piece
to JG hoses
From Mixer OUT to Tap, for
Vented version only. Check the
post has been tightened
Boiler
connection
RED
Blue ring on RHS
mains IN to
Mixer IN
White ring
on LHS for
Mains IN
Tap
Base block
Clear tube to
Vent
1.14
4mm Buffer Pad to
ensure ventilation gap
To Next Page
