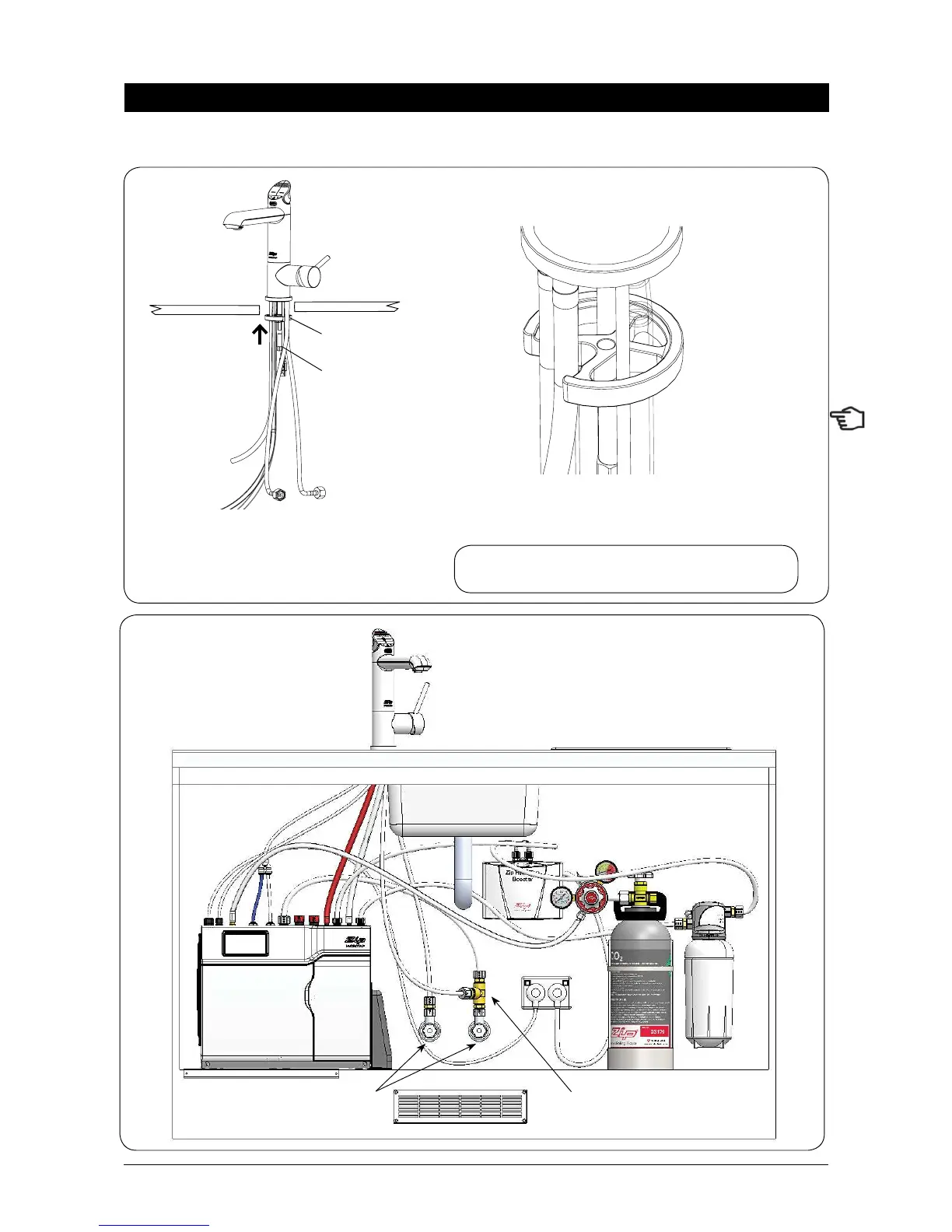

801910 - Zip Sparkling HydroTap - Installation Instructions - July 2014 - V1.00 Page 15 of 40
Installing the All-In-One Tap
Installation Instructions
1.12
1.11
Mount the BASE BLOCK SPIDER to the
underside of the All-In-One Tap.
BASE BLOCK
SPIDER
NOTE: feed each of
the tubes and electrical
cable evenly in between
the legs of the BASE
BLOCK SPIDER.
FIXING NUT
External HOT & COLD
isolation valves
(Not supplied)
Tee piece
(supplied)
Typical All-in-1 Installation, with options (see section 6)
Note: All plastic tubes must be cut to size.
They must have a constant fall back to the unit.
To Next Page
