Booster Specifications:
Rating Unit
Nominal Power Rating 2.2 kW
Nominal Current 10 A
Electric Supply 50Hz AC 230 V
Elect • ex and plug (black) - 1 meter length (with 90º Aus-
tralian plug)
10 A
Fixed Flow Rate 1.2 L/min
Section 3
Booster Heater
Mount base
Horizontally

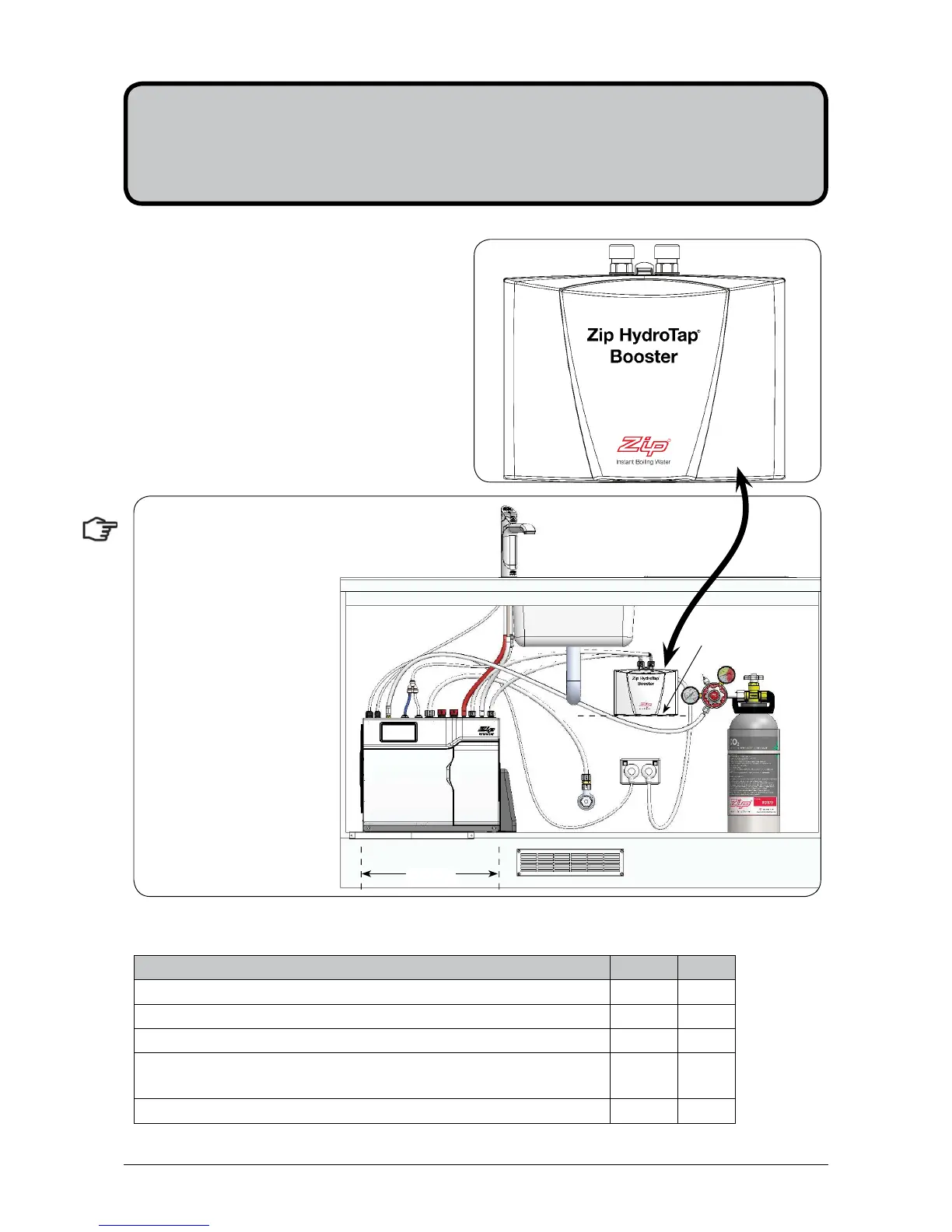

3.1 Product Description
The boost unit is a compact electronically
controlled auxiliary water heater. It is intended to
provide pre heating of water before it enters the
Zip HydroTap G4 boiling tank. The Booster is
supplied as standard equipment with all 240 cup
models. However, it may be later installed, as an
accessory for the 160 cup models, to increase
their delivery to 240 cups.
400mm
Note1: water connection
:Blue marking - water in
:Red marking - water out.
The braided hoses cannot be
lengthened.
Note2: The electrical cable
length is1.0 metre.
Note3: Position the Booster
within reach of the fixed hose
lengths, keeping the Booster
as close as possible to the
underbench unit inlet/ outlet
fittings.
Note4: Ensure the Booster
heater is mounted in an
upright position (as shown)
with a horizontal base
