SW3
GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 17/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019
2 MECHANICAL AND ELECTRICAL CHARACTERISTICS
The diverse elements comprising the SW3 are supplied in a box suitable for DIN-rail
mounting, see FIGURE 5 and FIGURE 6.

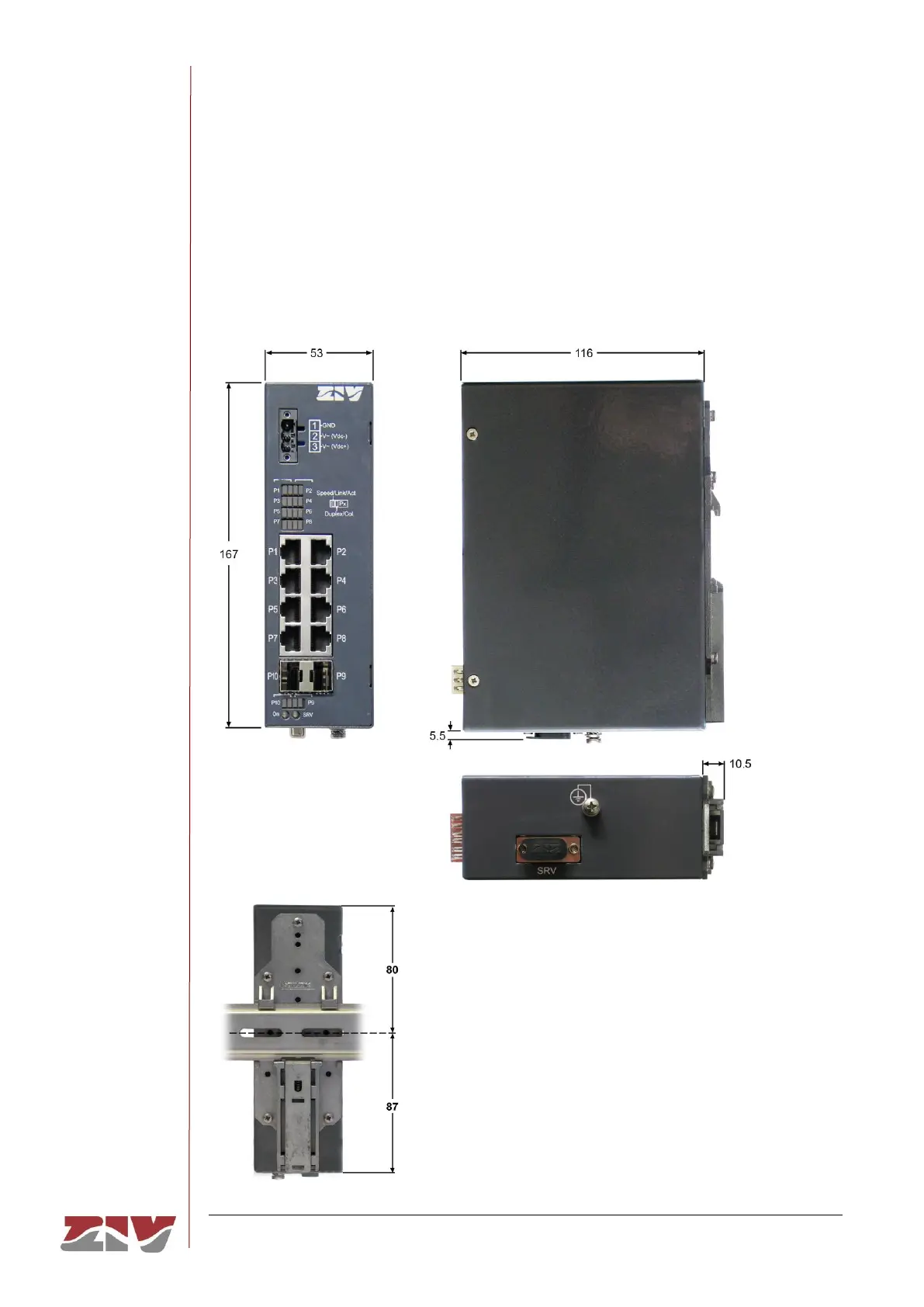

FIGURE 5 General dimensions in mm of the SW3
