ZIV SW3 - SW3 SRV Port Configuration

SW3
GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 27/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019
2.6 SRV PORT
The electrical characteristics of the maintenance connector and its use are indicated below.
The connector has a protective cap.

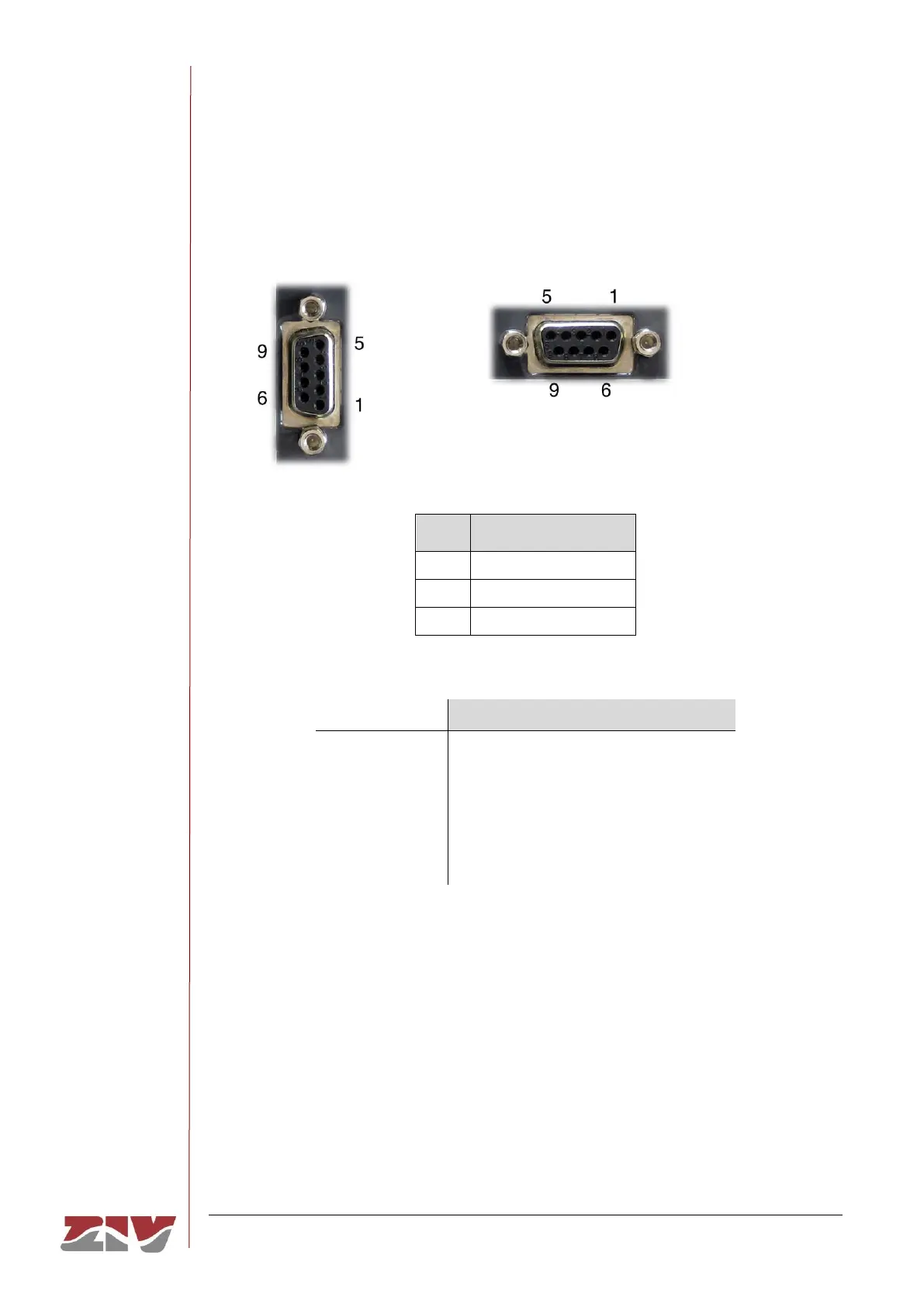

FIGURE 16 Location of the SRV maintenance connector
Pin
RS-232
2
RD (Out)
3
TD (In)
5
GND
SRV CONNECTOR (DCE mode)
Interface type
ITU-T V.24/V.28 (EIA RS-232)
Connector
DB9 female
Data
Asynchronous
Speed
115200 bit/s
Protocol
CLI (system console)
