GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 53/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019

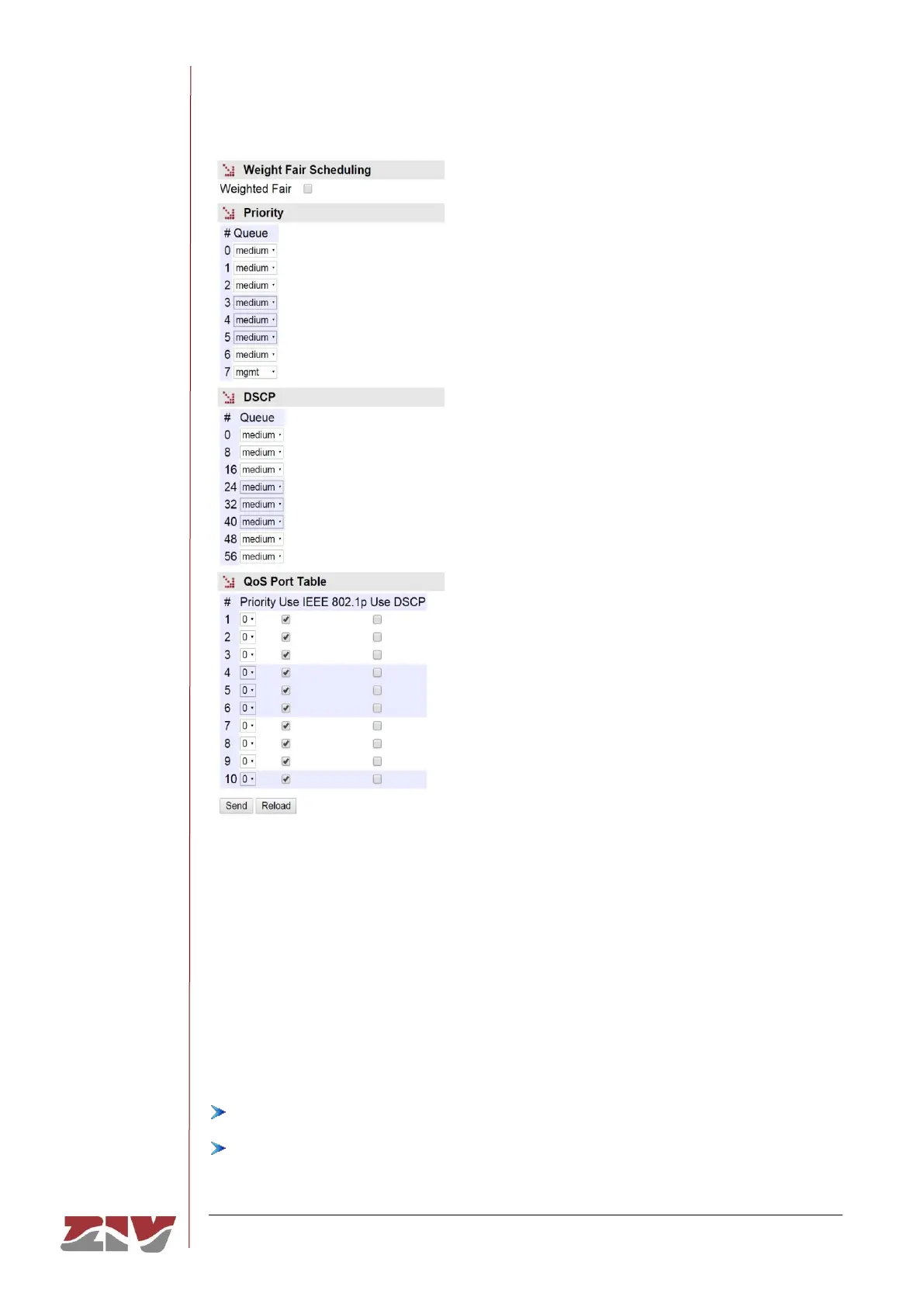

FIGURE 28 QoS menu configuration page
5.8 PORTS MONITORING CONFIGURATION
This menu performs Port mirroring functions in the ports in order to monitor their
behaviour.
The incoming and/or outgoing traffic from a specific port (Monitored port) is replicated in
a target port to be monitored through a protocol analyzer, for example.
The menu parameters are divided into two quite different blocks, which are:
Incoming traffic monitoring (Ingress Monitoring).
Outgoing traffic monitoring (Egress Monitoring).
