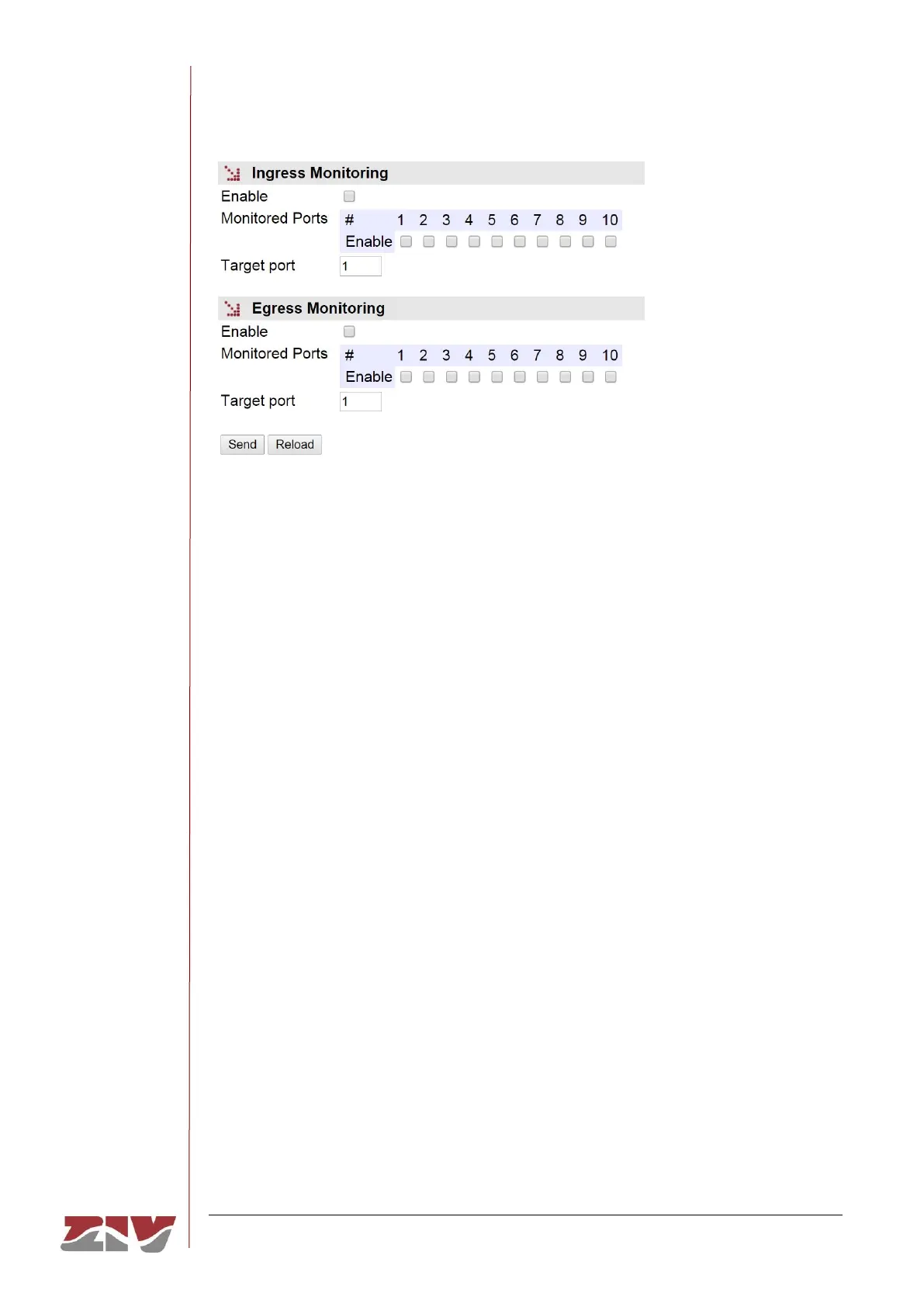

FIGURE 29 Monitor menu configuration page
The menu parameters are divided into two quite different blocks, which are.
Ingress Monitoring:
• Enable. It permits enabling and disabling monitoring of the incoming traffic by ticking
or not ticking the corresponding box.
• Monitored Ports. It sets the port or ports to be monitored. The incoming traffic in
each one of the selected ports will be replicated in the target port.
• Target port. It sets the port where the replicated packets will be sent to be
monitored.
Egress Monitoring:
• Enable. It permits enabling and disabling monitoring of the outgoing traffic by ticking
or not ticking the corresponding box.
• Monitored Ports. It sets the port or ports to be monitored. The outgoing traffic in
each one of the selected ports will be replicated in the target port.
• Target port. It sets the port where the replicated packets will be sent to be
monitored.
