6 STATISTICS
The system provides statistics divided into six blocks, each of them corresponding to a
specific functionality.
The first block shows general information related to the equipment, and is displayed
automatically when the statistics object is selected.
The remaining statistics are grouped into data on the Ethernet interfaces (Ports), the MAC
addresses identified by the switch (Macs), STP protocol (STP), execution data and
information obtained through the LLDP protocol (LLDP) and the synchronization client
(NTP), each of which can be accessed by selecting the respective tag located under the
heading Statistics.
Each statistical data table can be updated by pressing the Reload button without having
to select the respective option again in the tree menu.
The statistics can be REBOOTED by the user at will, from the console by running the
clear command in the prompt, or using the menu option Clear Statistics.

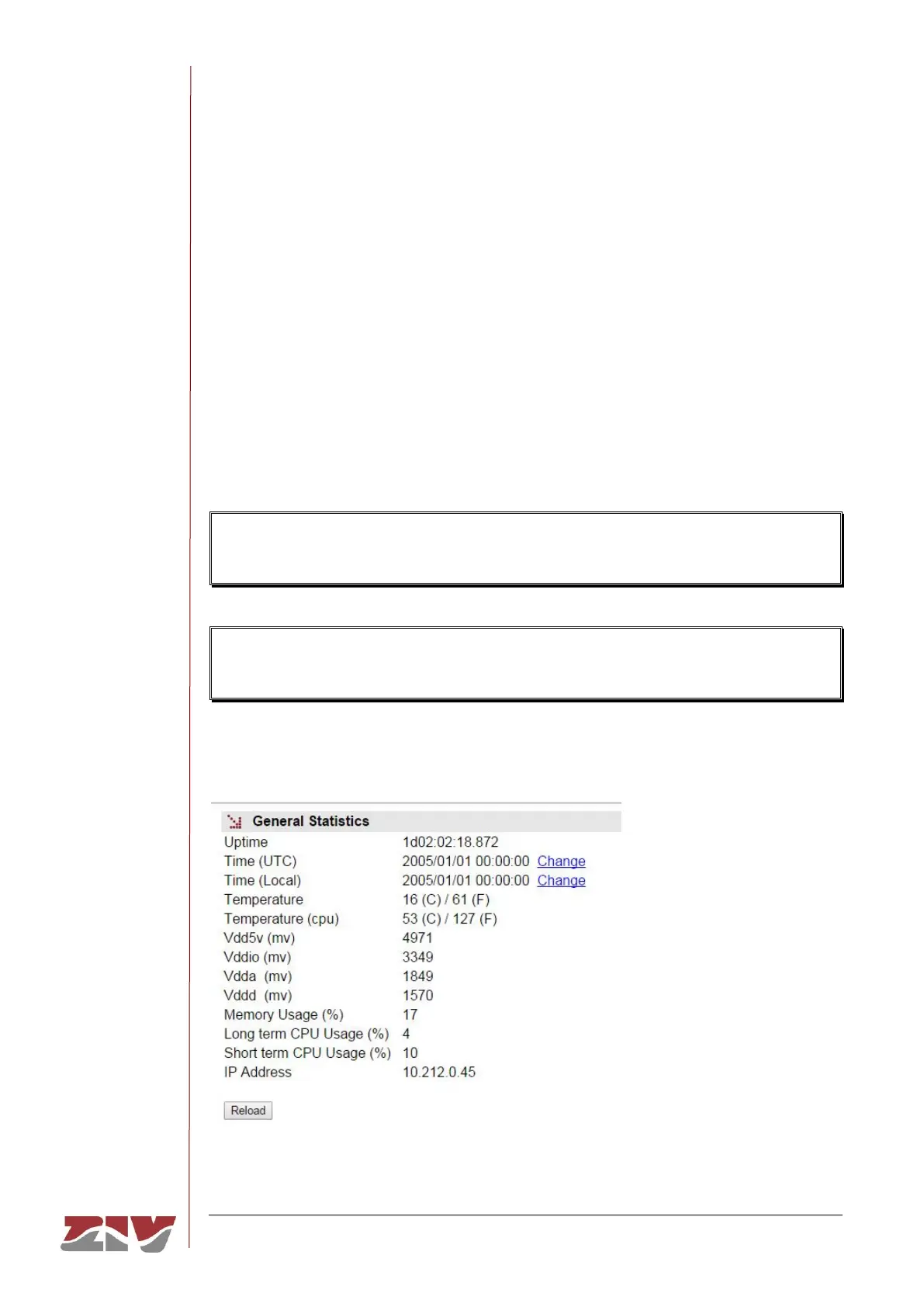

FIGURE 49 Example of statistics with general data
