SW3
GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 26/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019

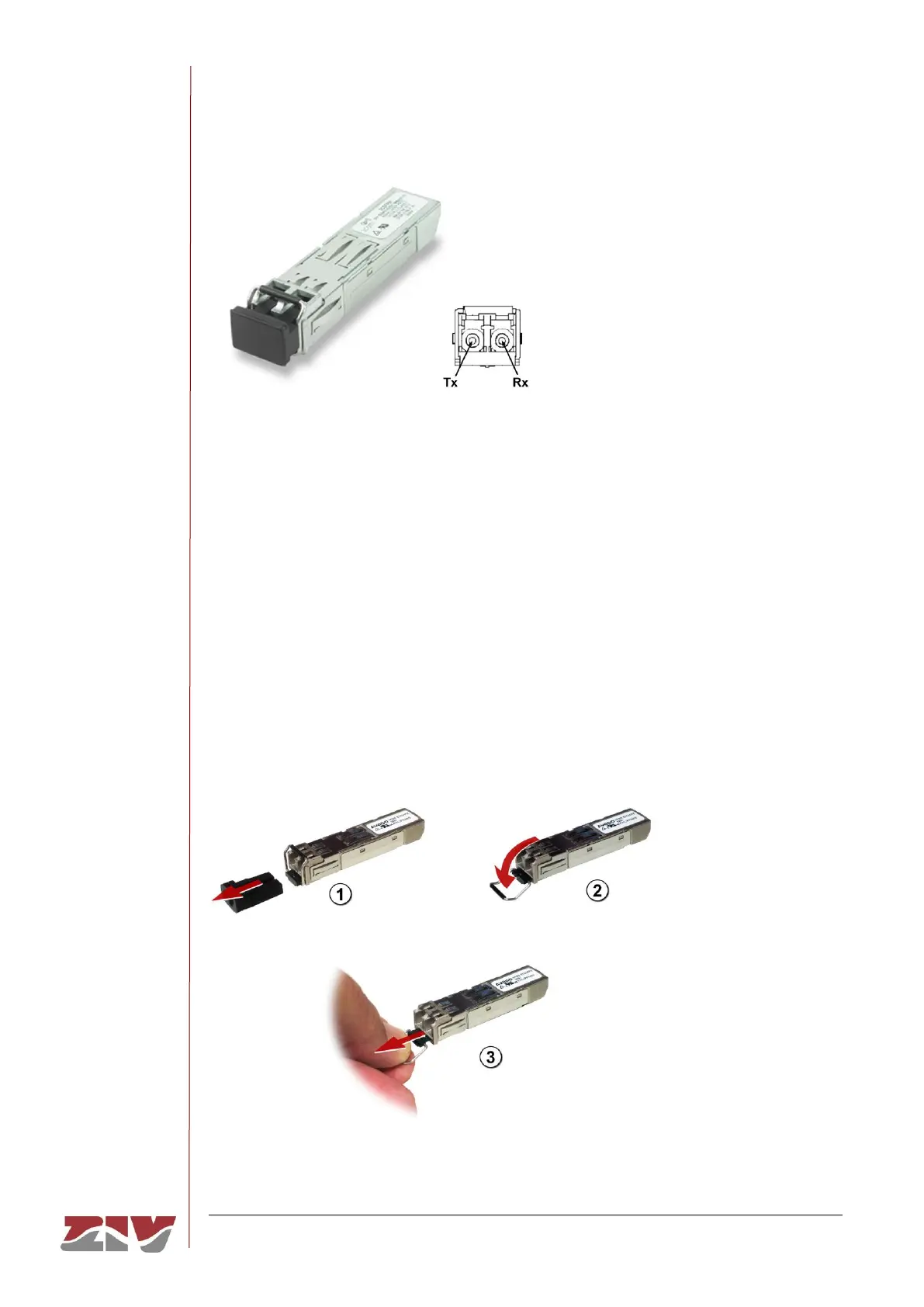

FIGURE 14 SFP modules
Removing procedure of an SFP module
The removing procedure of an SFP module is the following:
1. Disconnect the optical fiber from the connector of the SFP module.
2. Pull down the transceiver security lever.
3. Whilst the security lever down, remove the port from the module (if the SFP does not
slide out of the slot easily, make a slight oscillating motion from one side to another,
while firmly pulling the SFP outward).
FIGURE 15 Removing an SFP transceiver
