SW3
GIGABIT/FAST ETHERNET SWITCH TYPE SW3 (DIN) 22/122
USER GUIDE - M0SW3D1905Iv04 - V04 May 2019

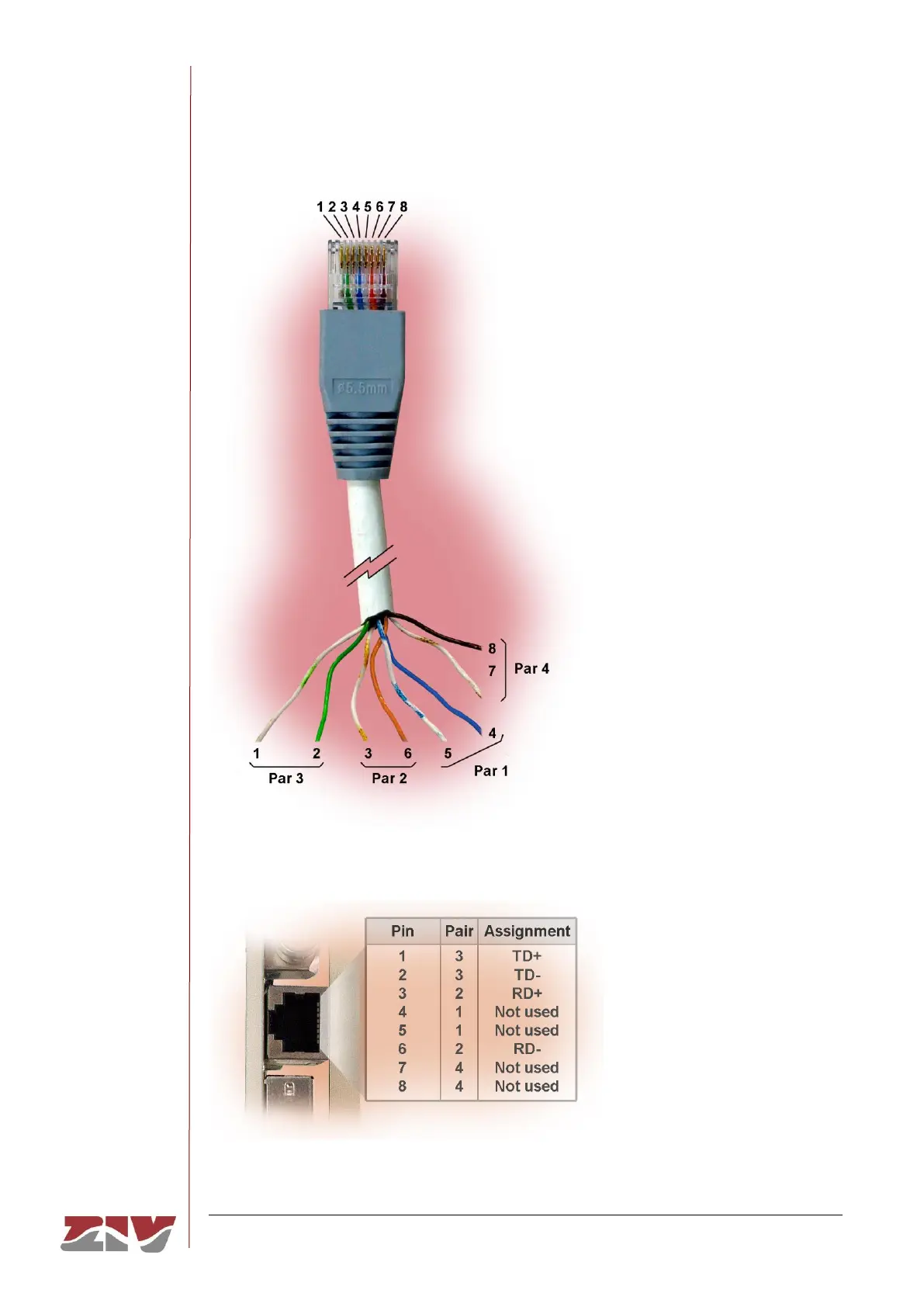

FIGURE 10 Unshielded twisted pair category five cable (UTP-5) with RJ-45 connector according to
ANSI/TIA/EIA-568-A standard
FIGURE 11 Signals of the RJ-45 connector in the 10/100Base-Tx LAN interface
