ZKTeco SpeedFace-V5L User Manual

12 2.8-inch Linux Visible Light Product User Manual
 Setting the User Role
There are two types of user accounts: the normal users and the super admin. If there is already a registered
administrator, the normal users have no rights to manage the system and may only access authentication
verifications. The administrator owns all management privileges. If a custom role is set, you can also select custom
role permissions for the user.

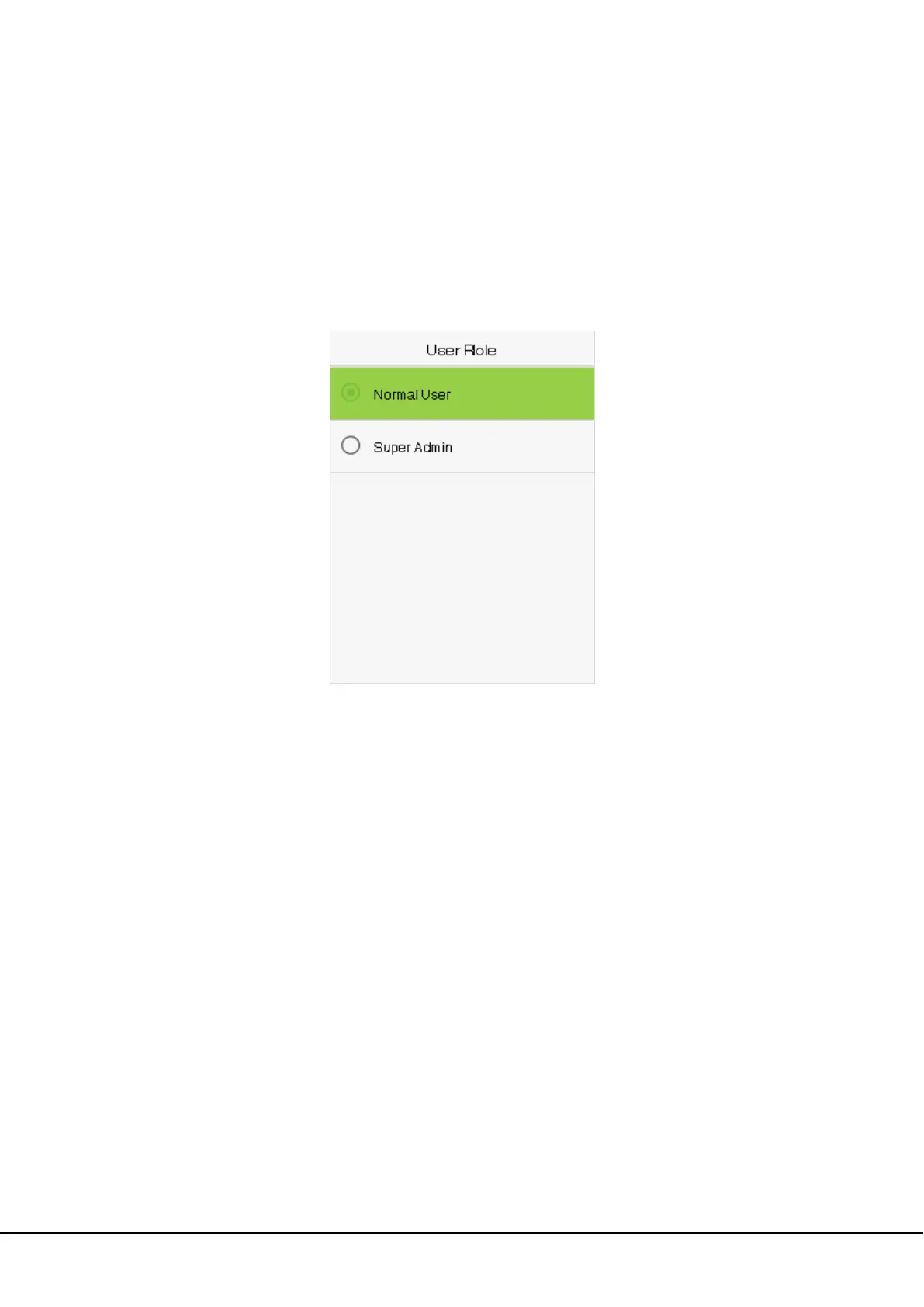

Select User Role to set Normal User or Super Admin.
Note: If the selected user role is the Super Admin, the user must pass the identity authentication to access the
main menu. The authentication is based on the authentication method(s) that the super administrator has
registered.
 Setting the Verification Mode
Including password/fingerprint/face, fingerprint only, user ID only, password, user ID + fingerprint, fingerprint +
password, user ID + fingerprint + password, face only, face + fingerprint, face + password, face + fingerprint +
password.
Select Verification Mode to set Individual verification mode of the user. Select M/OK to save and return to the
New User interface.

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
