ZKTeco SpeedFace-V5L User Manual

2.8-inch Linux Visible Light Product User Manual 17

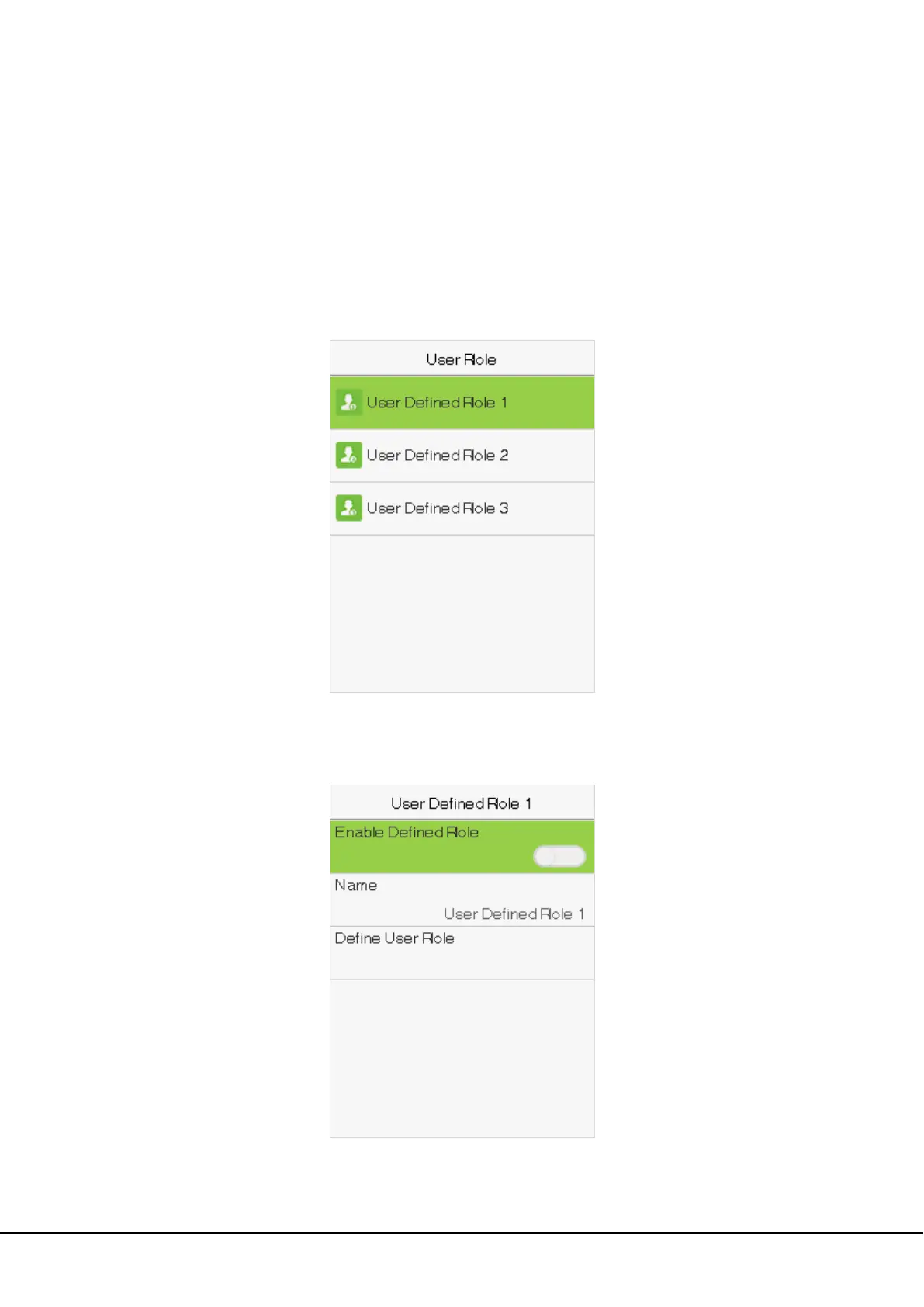

4 User Role
If you need to assign some specific permissions to certain users, you may edit the “User Defined Role” under the
User Role menu.
You may set the permission scope of the custom role (up to 3 roles) and enroller, that is, the permission scope of
the operation menu.
Select User Role on the main menu interface.
1. Select any item to set a defined role. Select the row of Enable Defined Role to enable this defined role. Select
Name and enter the name of the role.
2. Select Define User Role to assign the privileges to the role. The privilege assignment is completed. Click ESC to
save and return.

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
