ZKTeco SpeedFace-V5L User Manual

2.8-inch Linux Visible Light Product User Manual 33
7.4 Shortcut Keys Settings
Shortcut keys can be defined as punch state keys or menu function key. When the device is on the main interface,
pressing the set shortcut key will display the attendance state or enter the menu operation interface.

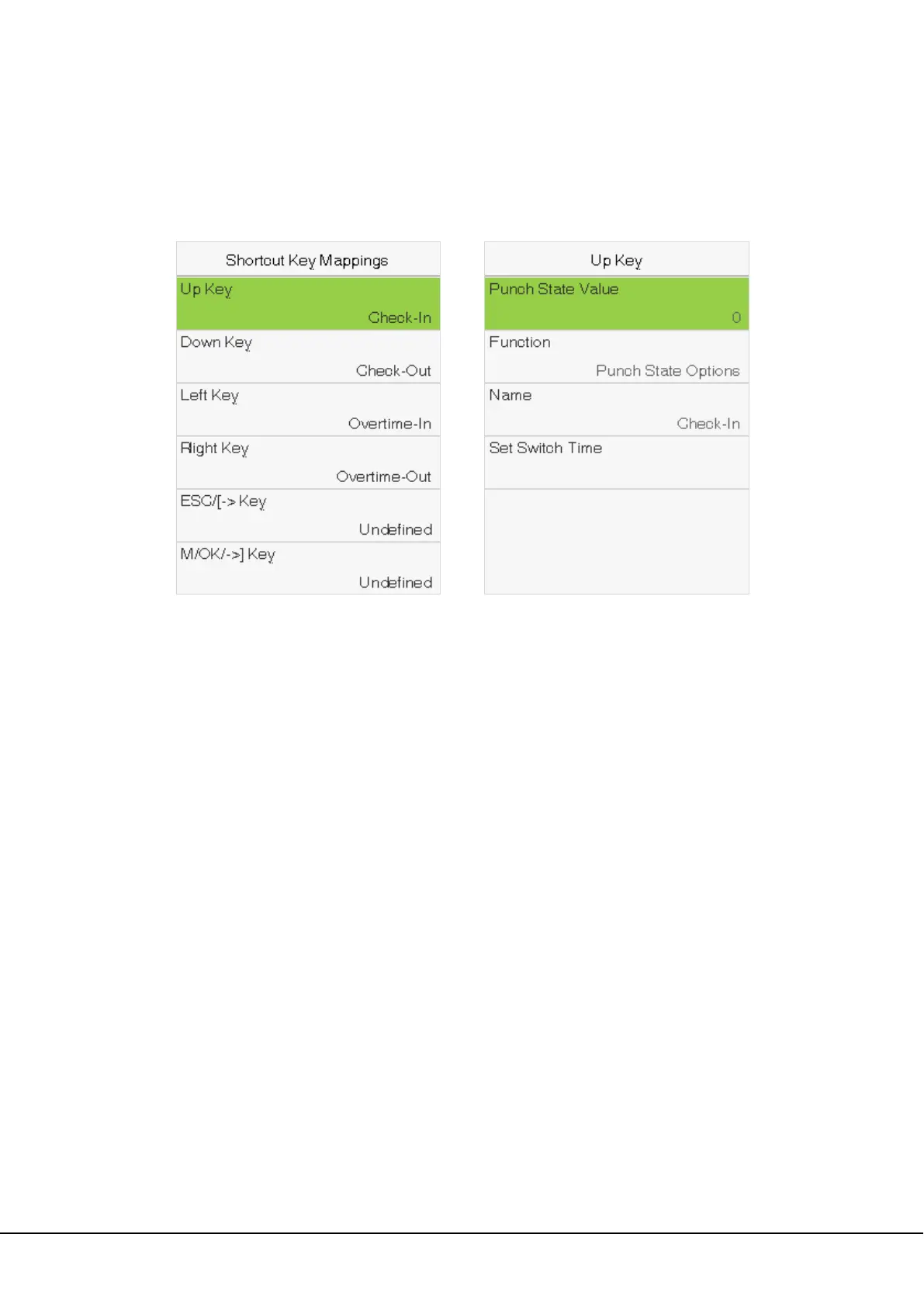

Select Shortcut Key Mappings on the Personalize interface.
To set Auto Switching Time:
Choose any shortcut key, and select Punch State Options in Function, so that auto switching time can be set.
Auto Switch: When the set time is reached, the device will switch the attendance state automatically.
When the shortcut key is set to Punch State Key, but OFF mode is selected in the Punch State Mode
(Personalize > Punch State Options > Punch State Mode > Select OFF), then the shortcut key will not be
enabled.

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
