ZKTeco SpeedFace-V5L User Manual

2.8-inch Linux Visible Light Product User Manual 5

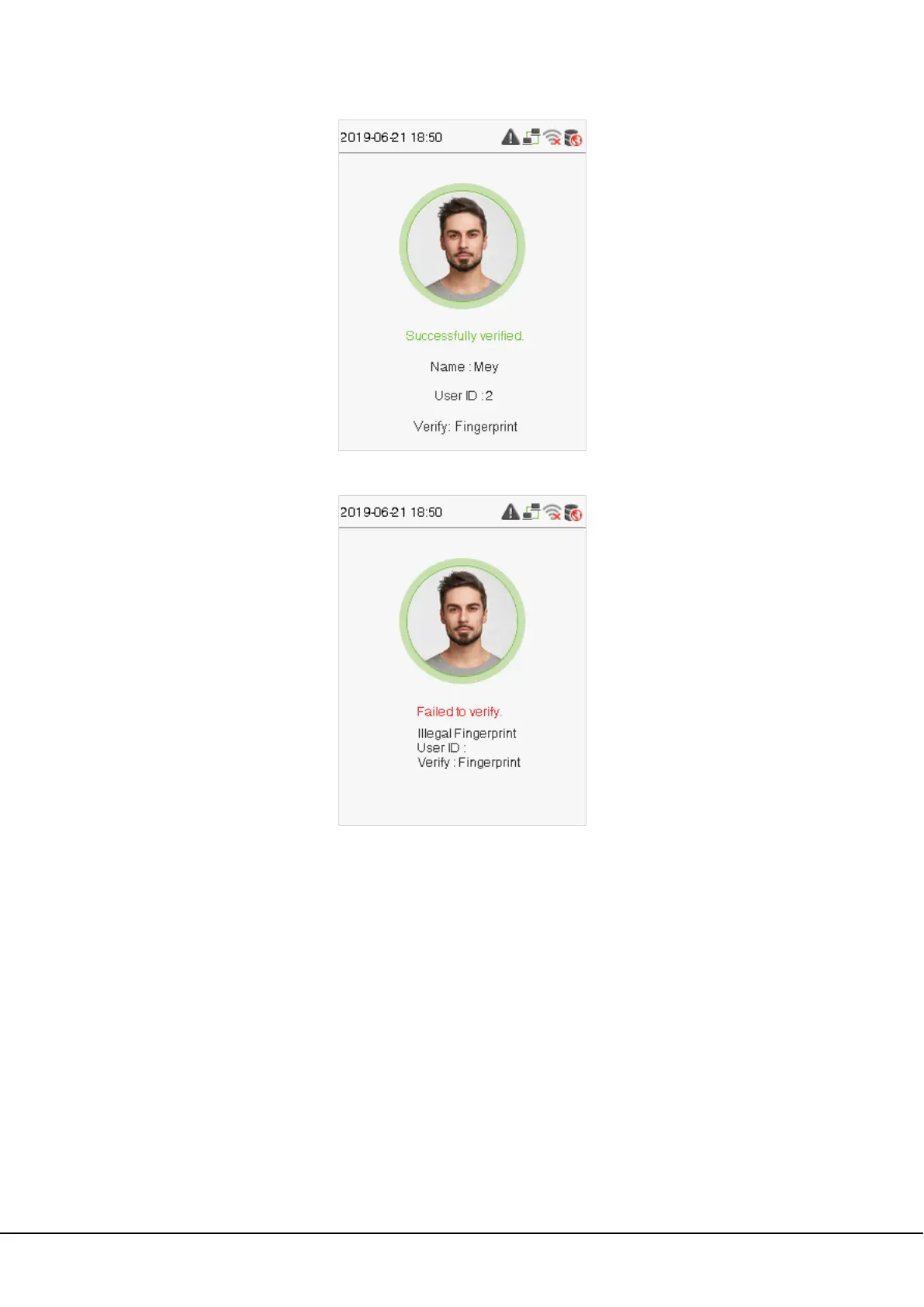

Successful verification:
Verification is failed:
 1:1 fingerprint verification
Compares the fingerprint that is being pressed onto the fingerprint reader with the fingerprints that are linked to
Employee ID input via the virtual keyboard. This method can be used when the system has trouble recognizing an
employee's fingerprints.
Enter the User ID on the main screen to enter 1:1 fingerprint verification mode:
1. Enter the User ID and press M/OK.
If the user has registered a face, a password and badge in addition to his/her fingerprints and the verification
method is set to password/ fingerprint/ badge/ face verification, the following screen will appear. Select the
fingerprint icon to enter fingerprint verification mode:

ZKTeco SpeedFace-V5L Specifications

General

Face capacity	6000
Housing color	Black, Grey
Event capacity	200000
Built-in processor	Yes
Face recognition duration	1 s
Operating temperature (T-T)	-10 - 45 °C
Temperature measurement range	34 - 45 °C
Temperature measurement accuracy	0.3 °C
Temperature measurement distance	30 - 50 cm
Operating relative humidity (H-H)	10 - 90 %
Input current	3 A
Input voltage	12 V
Ethernet LAN (RJ-45) ports	1
Screen shape	Flat
Display diagonal	5 \
Display technology	TFT
Sensor type	CMOS
Camera resolution (numeric)	2 MP
Type	Face recognition terminal

Weight and Dimensions

Depth (with stand)	22.5 mm
Width (with stand)	91.9 mm
Height (with stand)	220 mm
