H.264 Super Digital Video Recorder User Manual
19
click mouse to exit.
3.5.2 Record Mode
Please check current channel status: “●” means it is in recording status.

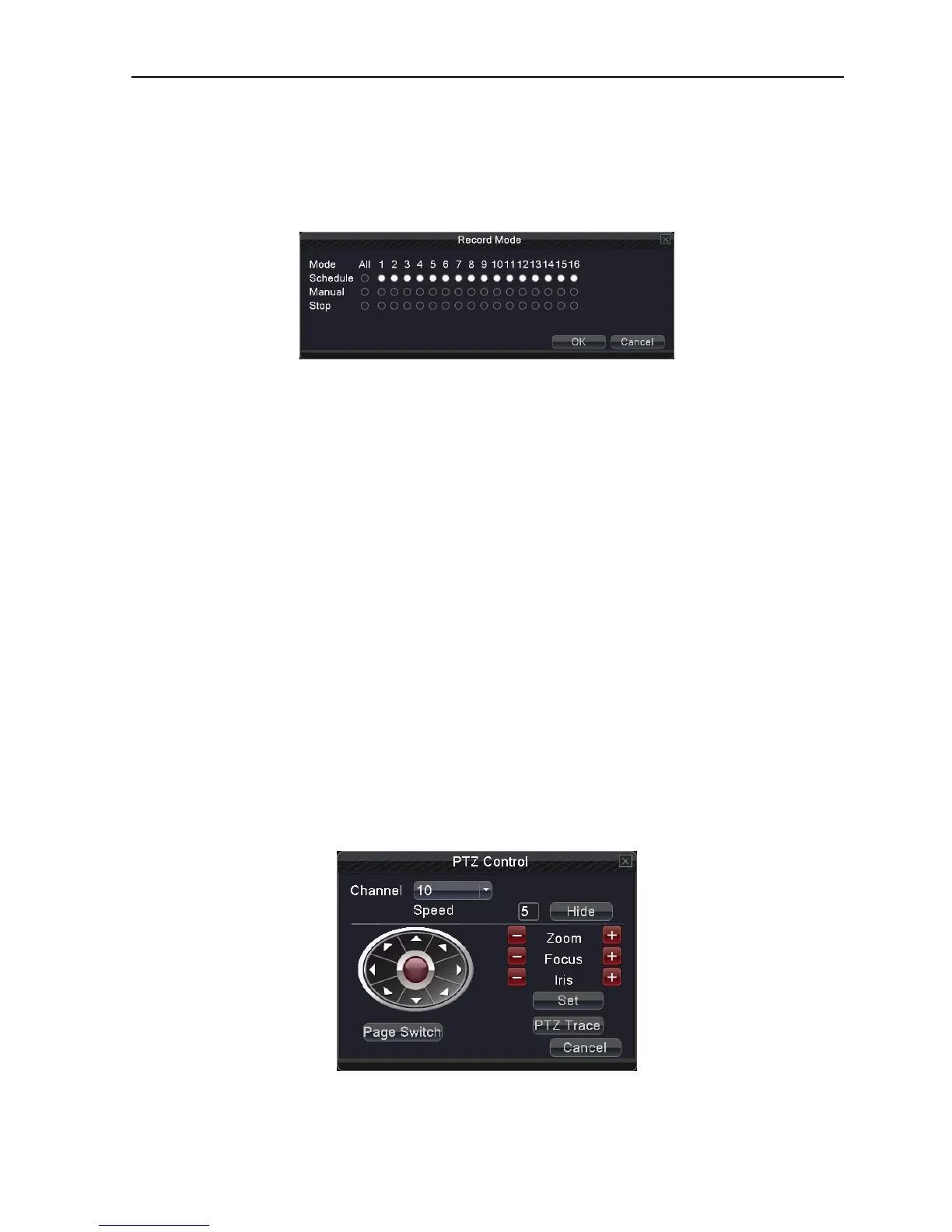

Picture 3.7 record mode
Schedule: It records according to the set parameters in “main menu” and “record”“record plan”.
Manual: Click the all button and the according channel is recording no matter the channel in any
state.
Stop: Click the stop button and the according channel stops recording no matter the channel in any
state.
3.5.3 PTZ Control
Operation interface is as followed. The functions include: PTZ direction control, step, zoom, focus,
iris, and setup operation, patrol between spots, trail patrol, boundary scan, assistant switch, light
switch, level rotation and so on.
Note : 1. Decoder 485+、485- line connects with DVR 485+、485- line. The connection is right.
2. Click “main menu”“system”“PTZ Config” to set the PTZ parameters.
3. The PTZ functions are decided by the PTZ protocols.
Picture3.8 PTZ Control
Speed: Set the PTZ rotation range. Default range: 1 ~ 8.
