H.264 Super Digital Video Recorder User Manual
66
5.4 Mobile Phone Monitoring
This device supports the user to use the phone for remote video surveillance operation.
Use
extra stream
technology
to do mobile p
hone monitoring.
Support channel switching and multi-channel monitoring
simultaneously.(Android phone system as an example).
Step one: DVR settings. The “main menu”
“record”,
enable extra stream;
Step two: Install the matching mobile phone monitoring software.
Obtain corresponding client software
from the optical disc (the client software of Android smart phone is vMEyeSuper.apk) and install on
the phone；
Step three: after successful installation,
find and run the corresponding client software from
“start”
“program” of the mobile phone ( it is vMEyeSuperhe on Android mobile phone), as
5.10;

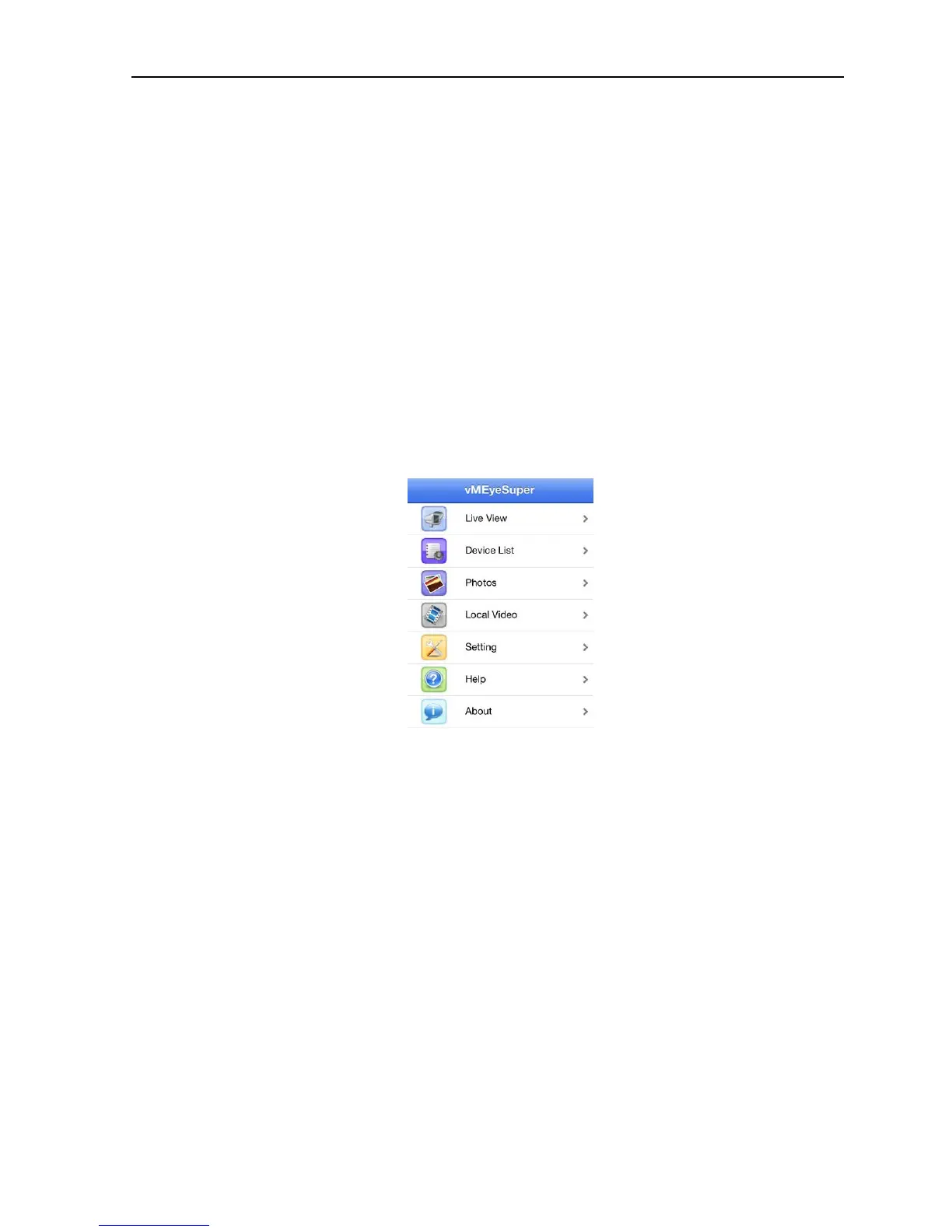

Picture 5.10 Mobile client interface 1.
Step four: click the device list on picture 5.10, enter IP address, device name, user name, password, port of
the monitoring device.
Device Name:
set by user;
User name:
user name to login DVR;
Password:
password to login DVR;
Server:
IP address of DVR;
Port:
default port is 34567;
Click OK after finish adding, as picture 5.11 shown below. Choose the channel which need to be
monitored, preview screen will display properly.
