H.264 Super Digital Video Recorder User Manual
53
4.7.2 PTZ Config

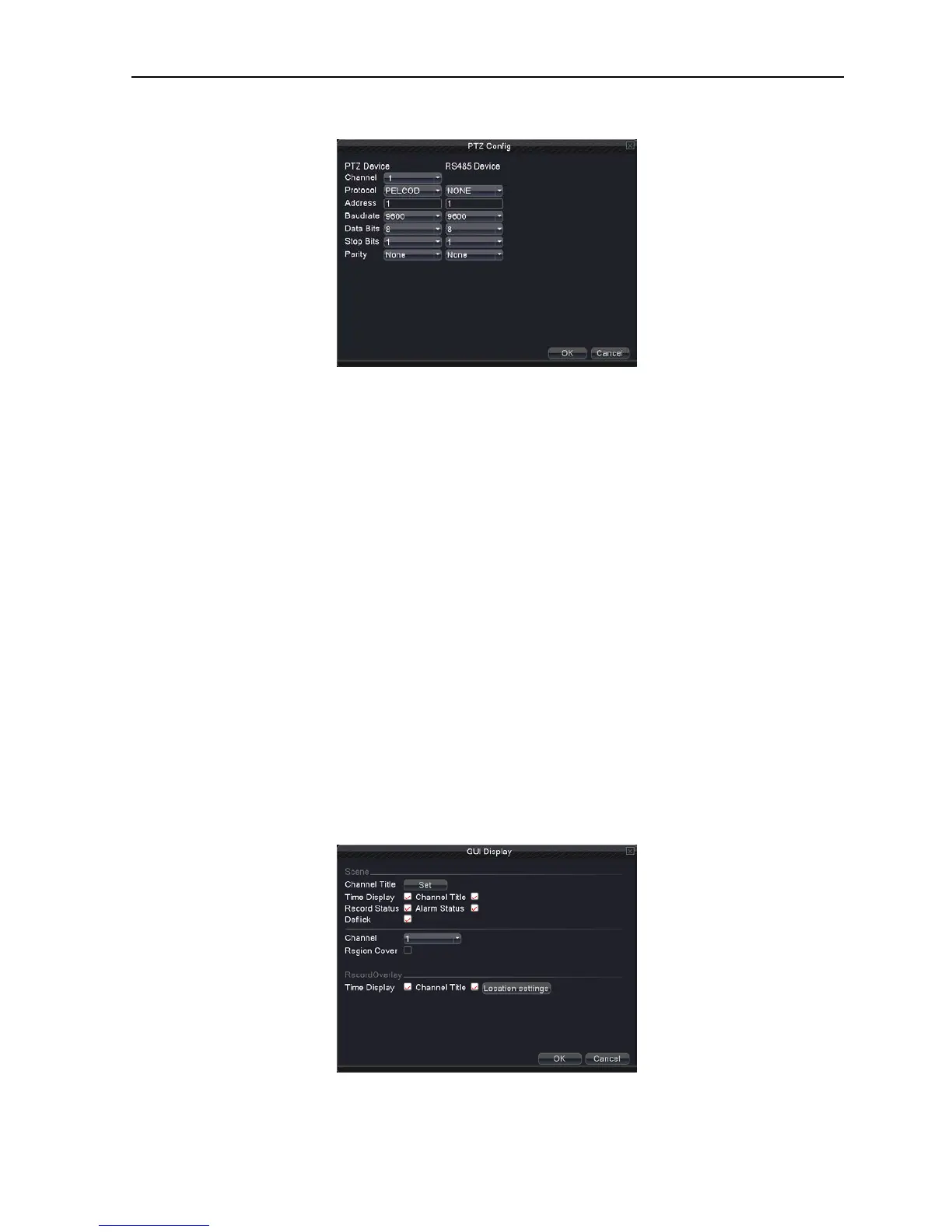

Picture 4.39 PTZ Config
Channel: Choose the dome camera input channel.
Protocol: Choose the corresponding dome protocol. (PELCOD as an example)
Address: Set as the corresponding dome address. Default: 1.
Baud rate: Choose the corresponding dome baud rate length. You can control the PTZ and camera.
Default: 115200.
Date bit: Include 5-8 options. Default: 8.
Stop bit: Include 2 options. Default: 1.
Check: Include odd check, even check, sign check, blank check. Default: void.
Note: parameters of protocol, address, baud rate should be consistent with relative PTZ or dome. Or
PTZ and dome can be controlled.
4.7.3 GUI Display
GUI display includes scene and record overly
Scene: the information in local preview: including channel name, time title, channel title, recording
status, alarm status, deflick, and channel region cover.
Picture 4.40 GUI display
Channel name: Click the channel name modify button and enter the channel name menu. Modify
